YANMAR 196323-04380 Housing, Bearing

Write a Review
$1,043.03
SKU:
196323-04380
Schematic Object Key:
60

YANMAR 196323-04380 Housing, Bearing

$1,043.03

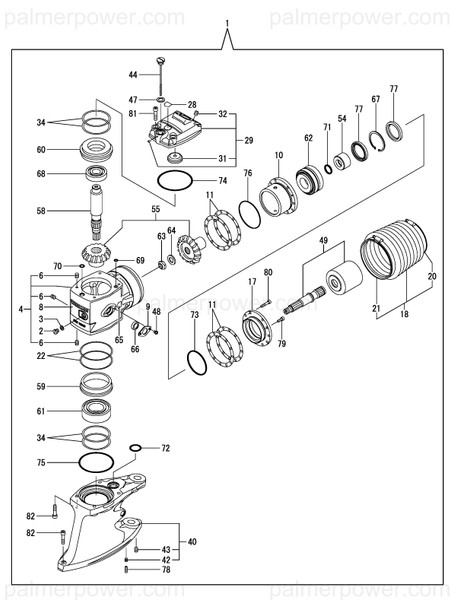

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196323-04380 Housing, Bearing

Schematic Object Key : 60

Product Description : HOUSING, BEARING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CASE ASSY,UPPER GEAR 796323-02910
2 PLUG, M10X10 189010-01120
3 GASKET 189010-01130
4 HOUSING ASSY, UPPER 196323-02010
6 INSERT, 8X1.5D 26273-080151
8 LABEL, MODEL 196323-02060
9 RETAINER 196320-02090
10 HOUSING, BEARING 196322-02110
11 SHIM SET, 90/114 196322-02120
17 CASE, OIL SEAL 196322-02180
18 PROTECTION ASSY 196320-02190
20 CLIP, HOSE 87-112 196320-02211
21 CLIP, HOSE 104-138 196340-02211
22 SHIM SET, 90/97 196322-02230
28 LABEL 196312-02291
29 COVER ASSY, UPPER 196322-02291
31 CAP 196320-02310
32 INSERT, 6X1.5D 26273-060151
34 SHIM SET, 75/85 196322-02320
40 HOUSING ASSY 196322-02381
42 INSERT, 6X1.5D 26273-060151
43 INSERT, 8X1.5D 26273-080151
44 DIPSTICK ASSY, L=132 196320-02410
47 GASKET, 14.5X1.5 196311-02440
48 SCREW, M6X8 196313-03900
49 SHAFT ASSY, PINION 196316-04100
54 COLLAR, SHAFT 196320-04140
55 GEAR SET, UPPER 196323-04151
58 SHAFT, GEAR 196316-04301
59 SLEEVE, BEARING 196322-04350
60 HOUSING, BEARING 196323-04380
61 BEARING, 3209C3 196322-04760
62 BEARING 196322-04781
63 NUT, M16 196315-04920
64 WASHER 196315-04930
65 LABEL 196312-06371
66 GAUGE, OIL LEVEL 196312-06400
67 RING, 62 22252-000620
68 BEARING, BALL 6305 24101-063054
69 O-RING, 1AP9.0 24311-000090
70 O-RING, 1AP11.0 24311-000110
71 O-RING, 1AP24.0 24311-000240
72 O-RING, 1AG30.0 24321-000300
73 O-RING, 1AG75.0 24321-000750
74 O-RING, 1AG100.0 24321-001000
75 O-RING, 1AG100.0 24321-001000
76 O-RING, 1AS85.0 24341-000850
77 SEAL, OIL SC456209 24413-456209
78 STUD, M6X 14 26213-060142
79 BOLT, M6X 16 26450-060162
80 BOLT, M6X 30 26450-060302
81 BOLT, M8X 35 26453-080352
82 BOLT, M8X 35 26453-080352
