YANMAR 196350-02100 Plate, Ground

Write a Review
$3.49
SKU:
196350-02100
Schematic Object Key:
4

YANMAR 196350-02100 Plate, Ground

$3.49

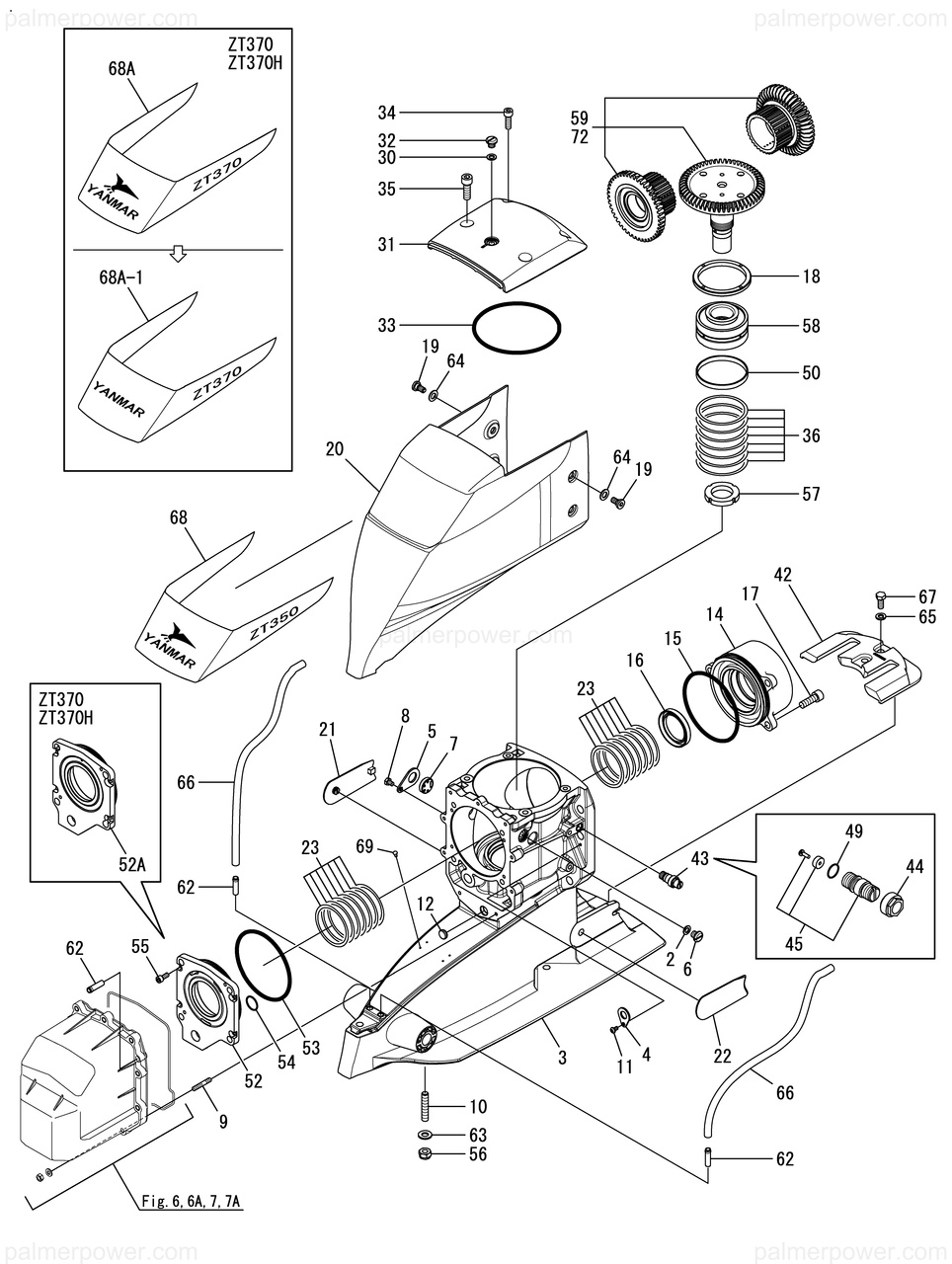

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196350-02100 Plate, Ground

Schematic Object Key : 4

Product Description : PLATE, GROUND 196350-02100

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 GASKET 189010-01130
3A HOUSING,DRIVE SHAFT 196350-52020
4 PLATE, GROUND 196350-02100
5 COVER, OIL LEVEL 196350-02320
6 PLUG 196324-02420
7 GAUGE, OIL LEVEL 196312-06400
8 BOLT, M6X 8 26113-060082
9 STUD, M6X 25 26223-060252
10-1 STUD, 2D 10X30 196350-12060
10-2 STUD, M10X32 196350-12061
11 SCREW, M5X 8 26553-050082
12 PLUG, BORE 15 27260-150000
14A COVER, FRONT 196350-52040
15 O-RING, 1AG110.0 24321-001100
16 SEAL, OIL TC456209 24423-456209
17 BOLT, M10X 30 26453-100302
18 SCREW 196350-02050
19 BOLT, M8X12 196350-02060
20 COVER, REAR 196350-02070
21-1 PAD, L 196350-02081
22-1 PAD, R 196350-02091
23 SHIM SET, 72/62 196311-02310
30 GASKET 189010-01130
31A COVER, TOP 196350-52300
32 PLUG 196324-02420
33-1 O-RING, 1AG120.0 24321-001200
34 BOLT, M8X 25 26453-080252
35 BOLT, M10X 30 26453-100302
36 SHIM SET, 70/80 196320-02320
42 ANODE, D/S HOUSING 196350-02350
43 SCREW ASSY, VALVE 196350-02360
44 SCREW, M12 196350-02370
45 VALVE ASSY 196350-02390
49 O-RING, 1AP6.0 24311-000060
50 SPACER, 80/76.5 196350-02400
52A HOUSING, BEARING 196350-12480
53 O-RING, 1AG110.0 24321-001100
54 O-RING, 1AS22.0 24341-000220
55 BOLT, M6X 14 26453-060142
56 NUT, NYLON M10 196350-02590
57 NUT, LOCK 35 196350-04450
58 BEARING, 30307DJR 196350-04460
62 PIPE, WATER 196350-08110
63 WASHER, 10 22133-100000
64 WASHER, SEAL 10 22193-100003
65 WASHER, SPRING 8 22213-080000
66 PIPE, 8X 400 23061-080400
67 BOLT, M8X 20 PLATED 26203-080202
68A-1 LABEL, BRAND MARK 196350-12621
69-1 RIVET, 2X5 196420-12810
72-1 GEAR SET,UPPER 196350-14570

YANMAR 196350-02100 Plate, Ground
