YANMAR 196350-12890 Label, 4Mpa

Write a Review
$9.77
SKU:
196350-12890
Schematic Object Key:
51

YANMAR 196350-12890 Label, 4Mpa

$9.77

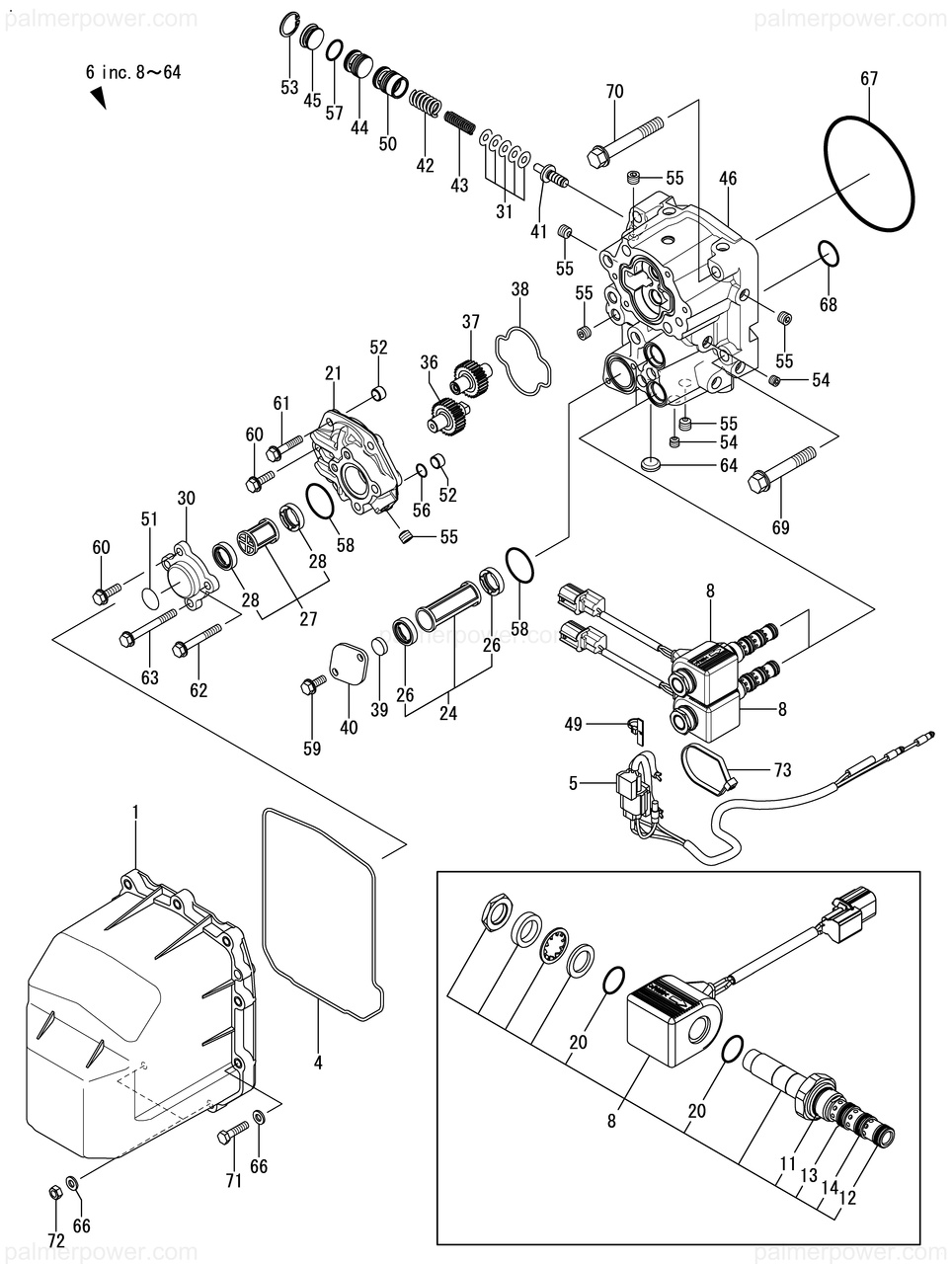

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196350-12890 Label, 4Mpa

Schematic Object Key : 51

Product Description : LABEL, 4MPA 196350-12890

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COVER ASSY, PLATE 196350-02961
4 GASKET, COVER 196350-02990
5-1 CONNECTOR, HARNESS 196350-06421
6-2 CASE PLATE,4M E SET 196350-12733
8 SOLENOID 168136-00070
11 O-RING, 4D19016 24356-190160
12 O-RING, 10.0 HNBR 41851-000100
13 O-RING 41851-000110
14 O-RING, 10A 41851-240100
20 O-RING, 4DP14.0 24316-000140
21 COVER ASSY 196350-02411
24 FILTER ASSY 196350-02422
26 RUBBER, FILTER 196350-02441
27 FILTER ASSY, COVER 196350-02451
28 RUBBER, FILTER 196350-02441
30-2 COVER,PUMP FILTER 196350-02502
31 SHIM SET, 15/6 196350-02750
36 GEAR, PUMP DRIVE 196350-02820
37 GEAR, PUMP DRIVE 196350-02830
38 GASKET, PUMP 196350-02850
39 MAGNET 196350-02870
40 COVER, FILTER 196350-02880
41 VALVE, HYDRAULIC OIL 196350-02900
42 SPRING, OUTER 196350-02910
43 SPRING, INNER 196350-02920
44 VALVE 196350-02930
45 SPACER, VALVE 196350-02940
46 PLATE ASSY, CASE 196350-06091
49 TIE, MARKING 196350-06390
50 VALVE 196350-12750
51 LABEL, 4MPA 196350-12890
52 PIN, 11X7 194521-41570
53 RING, 22 22252-000220
54 PLUG, R005 23876-005000
55 PLUG, R01 23876-010000
56 O-RING, 1AP10.0 24311-000100
57 O-RING, 1AP16.0 24311-000160
58 O-RING, 1AS30.0 24341-000300
59 BOLT, M6X 16 PLATED 26106-060162
60 BOLT, M6X 20 PLATED 26106-060202
61 BOLT, M6X 30 PLATED 26106-060302
62 BOLT, M6X 45 PLATED 26106-060452
63 BOLT, M6X 55 PLATED 26106-060552
64 PLUG, 16 27243-160000
66 WASHER, 6 22133-060000
67 O-RING, 1AG105.0 24321-001050
68 O-RING, 1AS22.0 24341-000220
69 BOLT, M10X 60 PLATED 26106-100602
70 BOLT, M10X 70 PLATED 26106-100702
71 BOLT, M6X 25 26113-060252
72 NUT, M6 26713-060002
73 BAND, 200 29621-200000
