YANMAR 196399-05202 Cable, L=6800

Write a Review
$156.48
SKU:
196399-05202
Schematic Object Key:
6

YANMAR 196399-05202 Cable, L=6800

$156.48

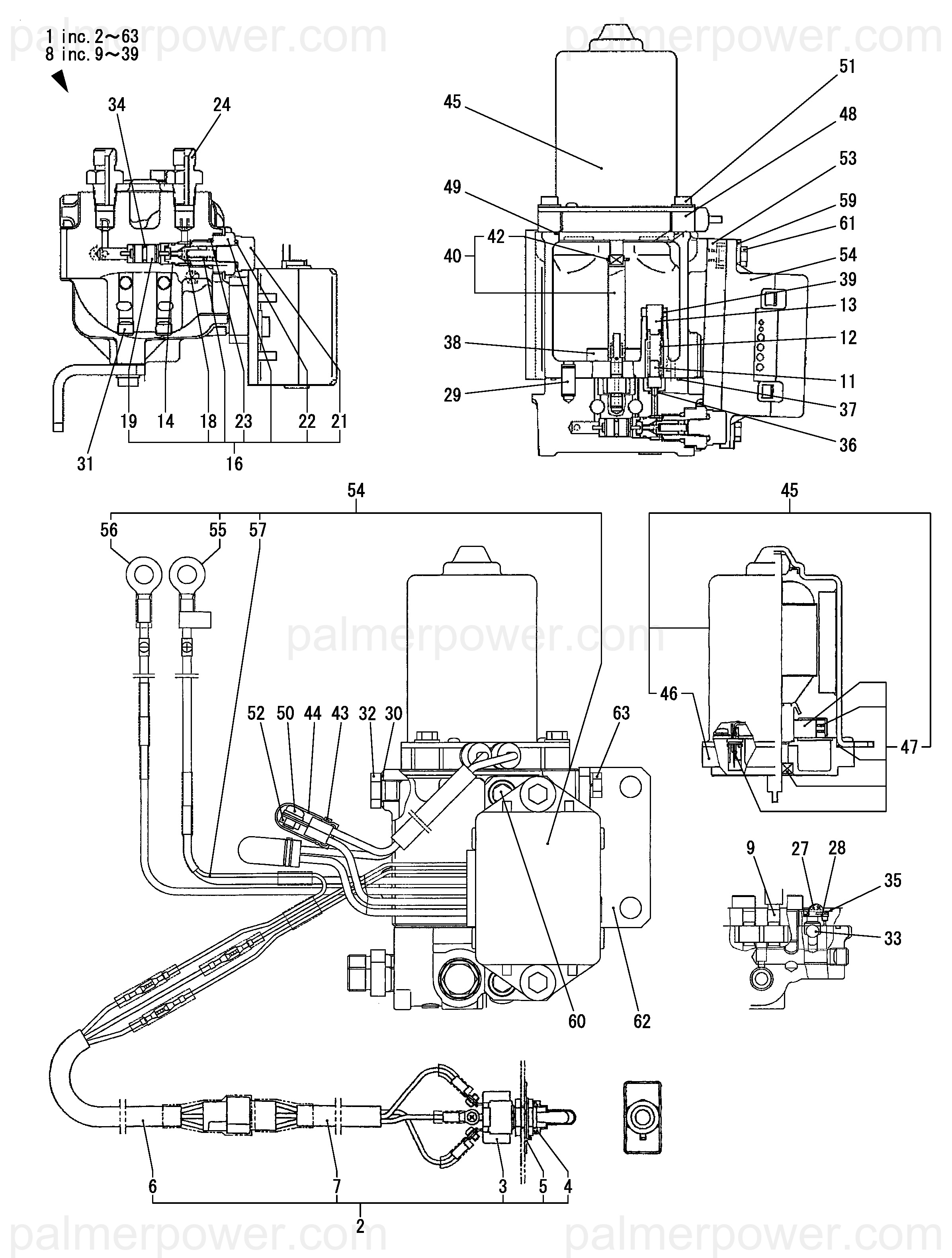

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196399-05202 Cable, L=6800

Schematic Object Key : 6

Product Description : CABLE, L=6800

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP, PU8B 12V 196313-07022
2 SWITCH ASSY 196399-05020
3 SWITCH 196399-05100
4 CAP, SWITCH 196399-05110
5 LABEL, UP-DOWN 196399-05141
6 CABLE, L=6800 196399-05202
7 CONNECTOR, L=200 196399-05281
8 PUMP ASSY, 8B 196399-21102
9 GEAR, 1ST 196398-01230
11 VALVE, RELIEF 196399-01300
12 SPRING, VALVE 196399-01310
13 SCREW 196399-01400
14 PISTON 196398-01500
16 HOLDER ASSY 8B,CHAIN 196399-01890
18 SPRING 196399-01460
19 O-RING, 1BS10.0 196399-01500
21 PLUG, DRAIN 129350-49120
22 O-RING, 1BP12.0 24315-000120
23 O-RING, 1BP14.0 24315-000140
24 ADAPTER, 1/4 196320-07970
27 WASHER, FILTER 196399-21150
28 STRAINER 192157-24801
29 PIN, PARALLEL M8X16 22312-080160
30 GASKET, 12X1.0 23414-120000
31 PLUG, R01 23871-010000
32 PLUG, 12 23887-120002
33 BALL, STEEL 9/32 24190-090001
34 O-RING, 1AP8.0 24311-000080
35 O-RING, 1AP10.0 24311-000100
36 O-RING, 1BP3.0 24315-000030
37 O-RING, 1AS75.0 24341-000750
38 BOLT, M8X 25 26450-080252
39 NUT, LOCK M10 26776-100002
40 JOINT ASSY 196399-21231
42 CIRCLIP, C9 196901-80100
43 BINDER 1683J1-02310
44 CAP 196399-05780
45 MOTOR, DC 12V 196399-25100
46 BRACKET ASSY,FRONT X134001180X9
47 BRUSH & SEAL SET X139901100X0
48 SPACER 196399-25200
49 O-RING, 1AS70.0 24341-000700
50 SCREW, M6X 8 26022-060082
51 BOLT, M6X 25 PLATED 26106-060252
52 NUT, LOCK M6 26756-060002
53 SPACER 196399-05360
54 CONTROLLER ASSY, 12V 196399-05640
55 CABLE 196399-05211
56 CABLE 196399-05222
57 CABLE 196399-05590
59 WASHER, 6 22157-060000
60 BOLT, M6X 16 26016-060162
61 BOLT, M6X 20 PLATED 26116-060202
62 BRACKET 196399-05350
63 BOLT, M8X 20 26016-080202
