YANMAR 196399-05360 Spacer

Write a Review
$218.42
SKU:
196399-05360
Schematic Object Key:
42

YANMAR 196399-05360 Spacer

$218.42

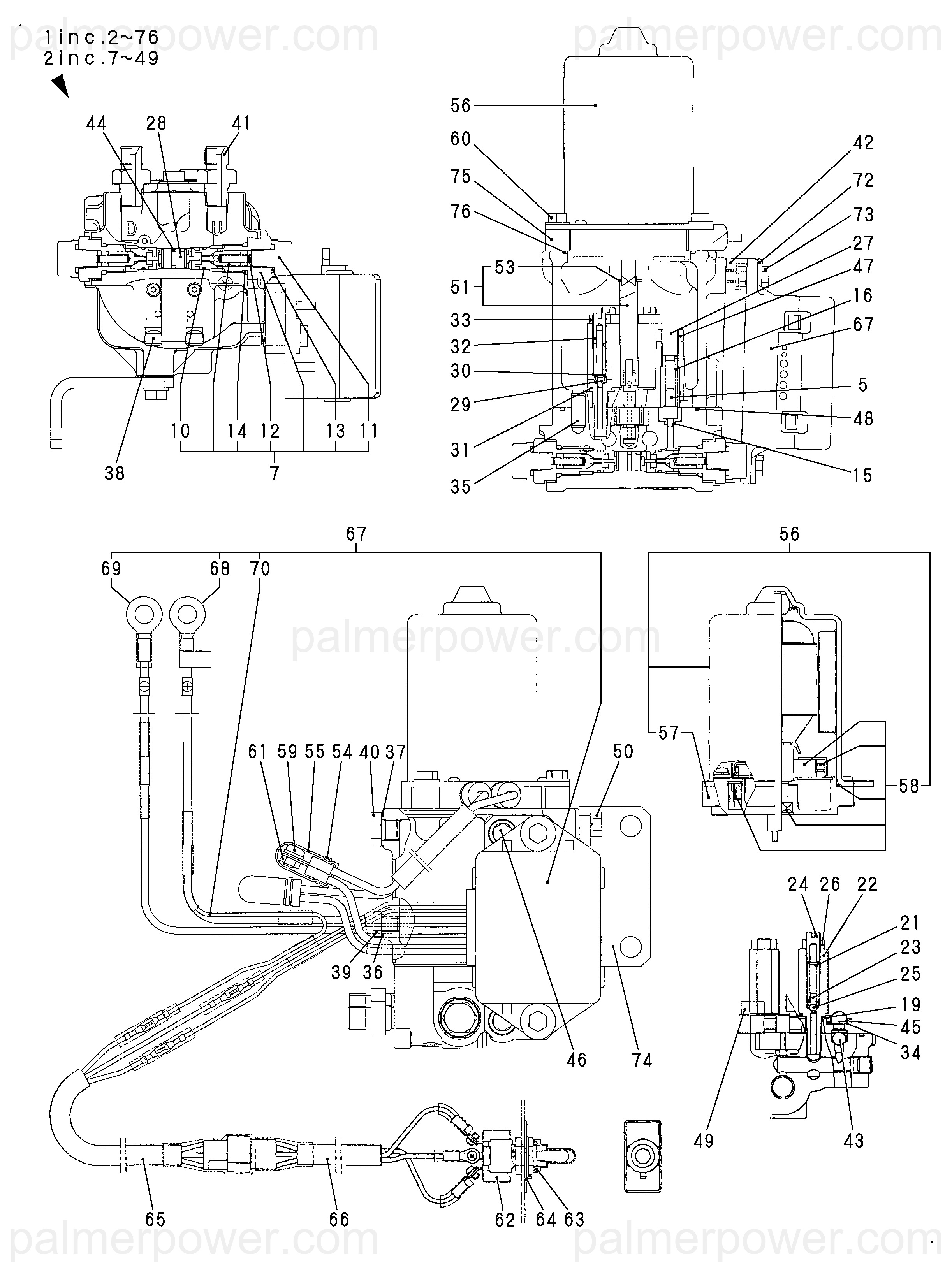

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196399-05360 Spacer

Schematic Object Key : 42

Product Description : SPACER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 POWER-UNIT,HYDRAULIC 196315-07021
2 PUMP ASSY, 8A 196399-21121
5 VALVE, RELIEF 196399-01300
7 HOLDER ASSY,CHAIN 8A 196399-01490
10 O-RING, 1B S 10.0 196399-11500
11 PLUG, DRAIN 129350-49120
12 SPRING 196399-01460
13 O-RING, 1BP12.0 24315-000120
14 O-RING, 1BP14.0 24315-000140
15 O-RING, 1BP3.0 24315-000030
19 WASHER, FILTER 196399-21150
20 GEAR, 1ST 196398-01230
21 SPRING, PILOT 178073-02330
22 BODY, RELIEF VALVE 196399-21360
23 HOLDER, BALL 196399-21370
24 SCREW 196399-21380
25 BALL, STEEL 5/32 24190-050001
26 NUT, LOCK M8 26776-080002
27 SCREW 196399-01400
28 PISTON 196398-01500
29 PILOT VALVE 178073-02310
30 SPRING, PILOT 178073-02330
31 BODY, RELIEF VALVE 196399-21360
32 SCREW 196399-21380
33 NUT, LOCK M8 26772-080002
34 STRAINER 192157-24801
35 PIN, PARALLEL M8X16 22312-080160
36 GASKET, 8X1.0 23414-080000
37 GASKET, 12X1.0 23414-120000
38 PLUG, R01 23871-010000
39 PLUG 8 23887-080002
40 PLUG, 12 23887-120002
41 ADAPTER, 1/4 196320-07970
42 SPACER 196399-05360
43 BALL, STEEL 9/32 24190-090001
44 O-RING, 1AP8.0 24311-000080
45 O-RING, 1AP10.0 24311-000100
46 BOLT, M6X 16 PLATED 26106-060162
47 NUT, LOCK M10 26776-100002
48 O-RING, 1AS75.0 24341-000750
49 BOLT, M8X 25 26450-080252
50 BOLT, M8X 20 26016-080202
51 JOINT ASSY 196399-21231
53 CIRCLIP, C9 196901-80100
54 BINDER 1683J1-02310
55 CAP 196399-05780
56 MOTOR, DC 12V 196399-25100
57 BRACKET ASSY,FRONT X134001180X9
58 BRUSH & SEAL SET X139901100X0
59 SCREW, M6X 8 26022-060082
60 BOLT, M6X 25 PLATED 26106-060252
61 NUT, LOCK M6 26756-060002
62 SWITCH 196399-05100
63 CAP, SWITCH 196399-05110
64 LABEL, UP-DOWN 196399-05141
65 CABLE, L=6800 196399-05202
66 CONNECTOR, L=200 196399-05281
67 CONTROLLER ASSY, 12V 196399-05640
68 CABLE 196399-05211
69 CABLE 196399-05222
70 CABLE 196399-05590
72 WASHER, 6 22157-060000
73 BOLT, M6X 20 PLATED 26116-060202
74 BRACKET 196399-05370
75 SPACER 196399-25200
76 O-RING, 1AS70.0 24341-000700
