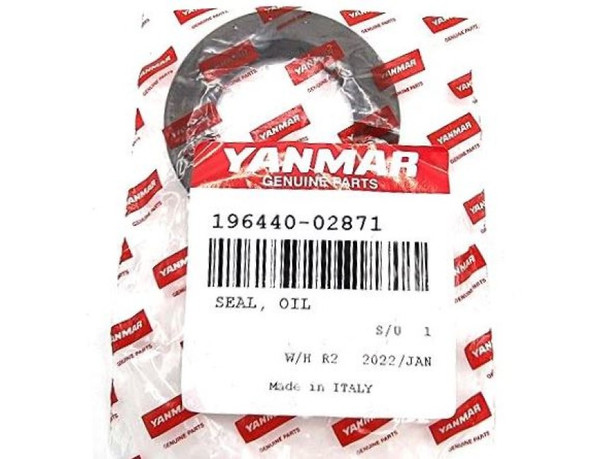

YANMAR 196440-02871 Seal, Oil

Write a Review
$65.97
SKU:
196440-02871
Schematic Object Key:
17-1

YANMAR 196440-02871 Seal, Oil

$65.97

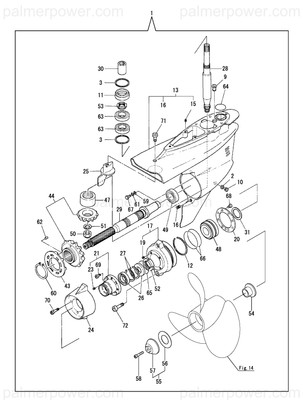

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196440-02871 Seal, Oil

Schematic Object Key : 17-1

Product Description : SEAL, OIL 196440-02871

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-3 HOUSING ASSY, GEAR 796440-02913
1-4 HOUSING ASSY, GEAR 796440-02914
1-5 HOUSING ASSY, GEAR 796440-02915
3 INSERT, LOCK 10X1.5 196420-02050
5 PIPE, OIL OUTLET 196440-02540
6 PLUG, RUBBER 196440-02550
7 COVER ASSY, REAR 196440-02600
9 INSERT, LOCK 6X1.5 196420-02620
10 SHIM SET, 52/62 196320-02650
16 ZINC, ANTI-CORROSIVE 196420-02652
16-1 ANODE, SEPARATE AL 196450-02500
16-2 ANODE, SEPARATE AL 196450-02500
16C PLATE,SEPARATE ANODE 196440-02690
16C-1 PLATE,SEPARATE ANODE 196440-02690
16D BOLT, M8X 20 26453-080202
16D-1 BOLT, M8X 20 26453-080202
17 SEAL, OIL D52/34XW8 196440-02870
17-1 SEAL, OIL 196440-02871
18 SHIM SET, 47 196313-04400
24 WASHER, 8 22113-080000
25 WASHER, 10 22113-100000
26 O-RING, 1AP7.0 24311-000070
27 O-RING, 1AG30.0 24321-000300
28-1 O-RING, 1AG55.0 24321-000550
29 O-RING, 1AG95.0 24321-000950
30 RING, BACK UP T2P46 24372-000460
31 BOLT, M8X 30 26453-080302
32 BOLT, M10X 25 26453-100252
33 BOLT, M10X 60 26453-100602
34 GASKET 189010-01130
35 PLUG 196326-02420
36-2 PLATE 196440-02242
37 SHIM SET, 72/62 196311-02310
43 BEARING, 32206 24141-322060
44-3 SHAFT, DRIVE 196440-04453
45-1 RING, INNER 228230 24163-228230
46 BEARING, 32005X 196440-04780
47-1 BEARING, NK28X42X23 196440-04760
48 WASHER 196324-04910
49 NUT, LOCK M14 26996-140002
50-2 GEAR SET, 13/29 196440-04802
50-3 GEAR SET, 13/29 196450-04900
53-3 SHAFT, PROPELLER 196440-04513
54 SPACER, PROPELLER 196324-09250
55 BOLT, M8X25 196420-09260
55-1 BOLT, M8X25 196420-09261
56 NUT, PROPELLER 196440-09300
57 BEARING, 30207 24141-302070
58 BOLT, M6X 20 26453-060202
58-1 BOLT, M6X16 196440-02700
58-2 BOLT, M6X16 196440-02700
59-1 LIMITER ASSY, TORQUE 196440-04540
72A ANODE KIT, AL 196450-02490
72A-1 ANODE KIT, AL 196450-02491
72B ANODE, SEPARATE AL 196450-02500
72E PLATE,SEPARATE ANODE 196440-02690
72F BOLT, M6X16 196440-02700
72F-1 BOLT, M6X18 196440-02701
72G BOLT, M8X 20 26453-080202
72G-1 BOLT, M8X 16 26453-080162
73 NUT ASSY, PROPELLER 196440-09200
75 INSERT, 20X2.0X1.0D 196440-09220
76 WASHER, PROPELLER 196420-09220
78 ZINC, ANTI-CORROSIVE 196440-02660
78-1 ZINC, ANTI-CORROSIVE 196440-02660
79 PLATE,SEPARATE ANODE 196440-02690
79-1 PLATE,SEPARATE ANODE 196440-02690
80 BOLT, M6X16 196440-02700
80-1 BOLT, M6X16 196440-02700
81 BOLT, M8X 20 26453-080202
81-1 BOLT, M8X 20 26453-080202
82 BOLT, M8X105 196440-09150
83 SPACER 196440-09160
84 NUT, NYLON 196440-09170
85 NUT, M8 196440-09180
86 NUT, LOCK M8 26793-080002
87 ANODE KIT, MG 196450-02440
87-1 ANODE KIT, MG 196450-02441
87-2 ANODE KIT, MG 196450-02442
88 ANODE, SEPARATE MG 196450-02600
92 BOLT, M8X 20 26453-080202
92-1 BOLT, M8X 16 26453-080162
93 PLATE,SEPARATE ANODE 196440-02690
94 BOLT, M6X16 196440-02700
94-1 BOLT, M6X18 196440-02701
95 NUT ASSY, PROPELLER 796450-09200

Description

Genuine Yanmar SD50 saildrive propeller shaft seal

Part number: 196440-02871
Superseded from: 196440-02870

Two required (Buy two)
