YANMAR 196450-02390 Cock Assy, Water 25

Write a Review
$445.71
SKU:
196450-02390
Schematic Object Key:
80-1

YANMAR 196450-02390 Cock Assy, Water 25

$445.71

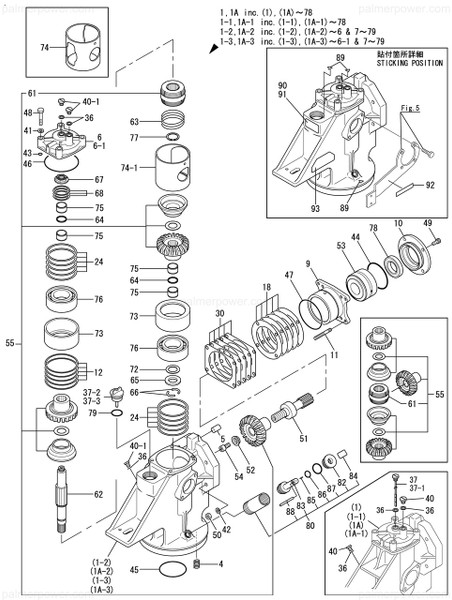

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196450-02390 Cock Assy, Water 25

Schematic Object Key : 80-1

Product Description : COCK ASSY, WATER 25 196450-02390

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A-2 CASE ASSY, GEAR 796440-02942
1A-3 CASE ASSY, GEAR 796440-02943
4 INSERT, LOCK 10X1.5 196420-02050
5 PIN, PARALLEL 177099-02130
6 COVER ASSY, UPPER 196440-02140
6-1 COVER ASSY, UPPER 196450-02140
9 HOUSING, BEARING 196440-02160
10 CASE, OIL SEAL 196440-02170
11 STUD 196440-02180
12 SHIM SET, 85/92 196320-02230
18 SHIM SET, 81/118 196440-02250
24 SHIM SET, 75/85 196322-02320
30 SHIM SET, 100X120 196440-02320
36 GASKET 189010-01130
37-2 GAUGE, OIL LEVEL 196420-02350
37-3 GAUGE, OIL LEVEL 196450-02350
40-1 PLUG 196326-02420
41 WASHER, SPRING 8 22217-080000
42 WASHER, SPRING 8 22217-080000
43 O-RING, 1AP9.0 24311-000090
44 O-RING, 1AG75.0 24321-000750
45 O-RING, 1AG80.0 24321-000800
46 O-RING, 1AG95.0 24321-000950
47 O-RING, 1AS85.0 24341-000850
48 BOLT, M8X 45 PLATED 26206-080452
49 BOLT, M8X 16 26450-080162
50 NUT, M8 26716-080002
51A SHAFT, PINION NO4 196440-04150
52 WASHER 196322-04240
53 BEARING 196322-04781
54 BOLT 196322-04940
54-1 BOLT, M10X20 196322-04941
55 GEAR SET, UPPER 196322-04152
61 CONE, DRIVE 196326-04250
61-1 CONE, DRIVE 196326-04251
62 SHAFT, CLUTCH 196322-04301
63 SPRING 196322-04321
63-1 SPRING 196322-04322
64 COLLAR 196322-04340
65 WASHER, THRUST 196322-04361
66 CIRCLIP 196322-04370
67 NUT, M16X1.5 196324-04380
68 COLLAR SET 196320-04400
72 COLLAR, THRUST 1.5 196320-04410
73 SLEEVE, BEARING 196324-04480
74-1 SPACER, BEARING 196440-04490
75 BEARING, K242817 196322-04731
76 BEARING, 3209C3 196322-04760
77 RING, S-30 22292-000300
78 SEAL, OIL SC456209 24413-456209
78-1 SEAL, SC456209 196450-02260
79 O-RING, 1AP32.0 24311-000320
80 COCK 196431-02390
80-1 COCK ASSY, WATER 25 196450-02390
82 GUIDE, VALVE 196431-02950
83 BAR, VALVE 196431-02960
84 SPRING 196420-02981
85 PIN, SPRING 2.0X10 22351-020010
86 O-RING, 1AP15.0 24311-000150
87 O-RING, 1AG25.0 24321-000250
88 HANDLE, BAR 196420-02580
89 LABEL, OIL 196440-02750
90 LABEL, CAUTION 196440-02760
90-1 LABEL 196440-02761
91A-1 LABEL, CAUTION 196440-02781
91A-2 LABEL, CAUTION 196440-02782
92 LABEL, DIRECTION 177073-02431
92-1 LABEL, DIRECTION 196420-02380
93A LABEL, NAME 196450-02060
