YANMAR 196630-03530 Spring, Lock

Write a Review
$14.49
SKU:
196630-03530
Schematic Object Key:
21

YANMAR 196630-03530 Spring, Lock

$14.49

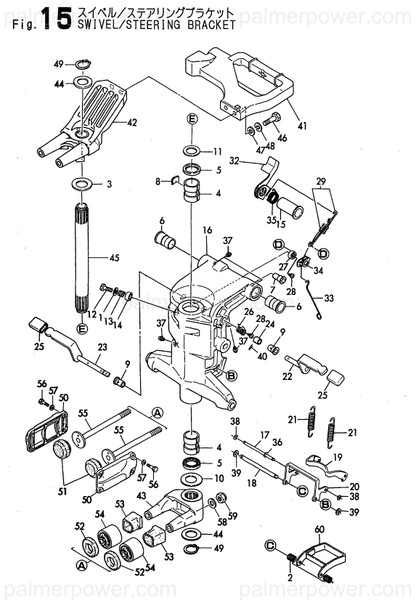

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196630-03530 Spring, Lock

Schematic Object Key : 21

Product Description : SPRING, LOCK 196630-03530

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COLLAR, 9/21 196630-01780
2 SPRING, TILT 196630-03872
3 WASHER, 30/50 196640-03060
4 BUSH, 30X44 196640-03070
5 SEAL, OIL VC30405 196640-03100
6 BUSH, 30X39 196630-03120
7 BUSH, LOCK LEVER 196630-03140
8 PLATE, FRICTION 196640-03171
9 BUSH, LEVER 196640-03180
10 WASHER, 30/58 196640-03200
11 SPACER 196640-03230
12 BOLT, M8 196630-03250
13 SPRING, BRAKE 196630-03260
14 COVER, BRAKE 196630-03270
15 SPACER, TILT 196630-03310
16 BRACKET, SWIVEL 196630-03350-1
17 SHAFT, LOCK A 196630-03411
18 SHAFT, LOCK B 196630-03421
19 HOOK, REVERSE LOCK 196630-03511
20 LEVER, REVERSE LOCK 196630-03521
21 SPRING, LOCK 196630-03530
22 LEVER, TILT LOCK R 196630-03602
23 LEVER, TILT LOCK L 196630-03612
24 COLLAR, TILT LOCK 196630-03632
25 COVER, LOCK LEVER 196630-03640
25-1 KNOB, ARM 196640-03850
26 SPRING, RETURN 196630-03650
27 HOOK, SPRING 196630-03660
28 BOLT, TILT LEVER 196630-03670
29 ROD ASSY, SCV LEVER 196630-03900
32 LEVER, TILT 196630-03912
33 ROD, TILT LOCK 196630-03933
34 LEVER, LOCK 196630-03944
35 SPRING, TILT LEVER 196630-03960
36 CIRCLIP, CS6 196630-10730
37 NIPPLE, GRESAE MT6X1 196630-10850
38 RING, E- 5 22273-000050
39 RING, E- 6 22273-000060
40 PIN, COTTER 3.2X20 22413-320200
41 BRACKET 196640-05051-1
41-1 BRACKET 196640-05052-1
42 BRACKET, STEERING 196640-05060-1
43 BRACKET, MOUNT 196640-05081-1
44 WASHER, 26/46 196640-05110
45 SHAFT, PIVOT 196640-05160
46 BOLT, M10X35 196630-10330
47 WASHER, 10 196630-10390
48 WASHER, SPRING 10 22213-100000
49 RING, 26 22243-000260
50 HOUSING, MOUNT 196640-05212-1
51 RUBBER, MOUNT 196640-05400
52 DAMPER,LOWER REVERSE 196640-05430
53 DAMPER, LOWER MOUNT 196640-05440
54 RUBBER, MOUNT 196640-05460
55 BOLT, M12X162 196640-05471
56 BOLT, M6X20 196630-10110
57 WASHER, 6 196630-10350
58 WASHER, 12 196640-10410
59 NUT, M12 26343-120002
60 ARM, TILT 196630-03862
