YANMAR 196630-06170 Handle

Write a Review
$23.48
SKU:
196630-06170
Schematic Object Key:
9

YANMAR 196630-06170 Handle

$23.48

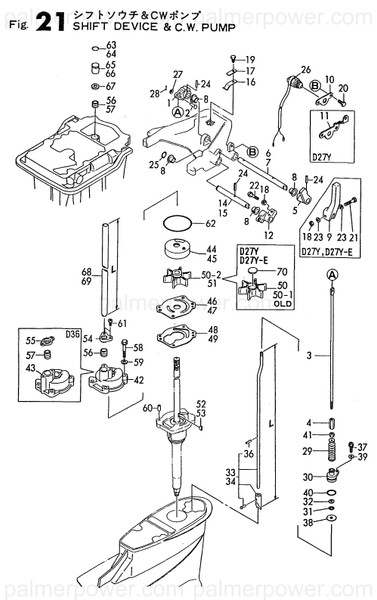

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196630-06170 Handle

Schematic Object Key : 9

Product Description : HANDLE, SHIFT 196630-06170

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 DETENT 196630-06060
2 PIN, SHIFT ROD 196630-06070
3 ROD, SHIFT 196630-06080
4 CONNECTOR, ROD 196630-06090
5 LEVER, SAFETY 196630-06110
7 SHAFT, SHIFT 196640-06131
8 BUSH, 16/12 196630-06150
9 HANDLE, SHIFT 196630-06170
9-1 HANDLE, SHIFT 196630-06170
10 BRACKET, SWITCH 196630-06190
12 LEVER ASSY, REVERSE 196630-06251
15 SHAFT, LIMIT 196640-06311
16 SPRING, DETENT A 196630-06330
17 SPRING, DETENT B 196630-06340
18 NUT, M6 196630-10030
18-1 NUT, M6 196630-10030
19 BOLT, M6X12 196630-10090
19-1 SCREW, TAPPING M6X14 196630-10630
20 BOLT, M6X16 196630-10100
21 BOLT, M6X30 196630-10130
21-1 BOLT, M6X30 196630-10130
22 BOLT, M6X25 196630-10180
23 WASHER, 6 196630-10350
23-1 WASHER, 6 196630-10350
24 PIN, 4X20 196630-10650
25 CIRCLIP, C12 196630-10710
26 SWITCH, SAFETY 120270-77101
27 WASHER, 5 22133-050000
28 PIN, COTTER 2.0X10 22413-200100
29 BOOT, SHIFT ROD 196630-06450
30 GUIDE, SHIFT ROD 196630-06460
31 O-RING, 6 196630-06470
32 WASHER, 6.5 196630-06480
34A CAM ASSY, SHIFT L 196640-06551
34B CAM ASSY, SHIFT LL 196641-06550
36 PIN, SPRING 3.0X16 22351-030016
37 BOLT, M6X20 196630-10190
38 WASHER, 6 196630-10350
39 WASHER, 6 22137-060000
40 O-RING, 1AP21.0 24311-000210
41 NUT, LOCK M6 26753-060002
43 HOUSING, PUMP 196640-08010
45 INSERT 196640-08020
47 PLATE 196640-08030
47-1 PLATE, UPPER 196640-08031
49 GASKET, WATER PUMP 196640-08040
51 IMPELLER, PUMP 196640-08050
51-1 IMPELLER, PUMP 196640-08051
53 KEY, DRIVE SHAFT 196640-08080
55 GUIDE, PIPE 196640-08110
57 RUBBER, SEAL 196640-08130
57-1 RUBBER, SEAL 196640-08131
58 BOLT, M6X40 196630-10150
59 WASHER, 6 196630-10350
60 PIN, PARALLEL 6X11 196630-10530
61 SCREW, TAPPING M5X12 196630-10620
62 O-RING, 1AG65.0 24321-000650
64 O-RING, 1AP16.0 24311-000160
66 PLUG, UPPER CASE 196640-08240
67 PIECE, DISTANCE 196640-08250
69A TUBE, WATER L=476 196640-08561
69B TUBE, WATER L=539 196641-08560
