YANMAR 196630-06901 Lever Asy

Write a Review
$53.78
SKU:
196630-06901
Schematic Object Key:
19

YANMAR 196630-06901 Lever Asy

$53.78

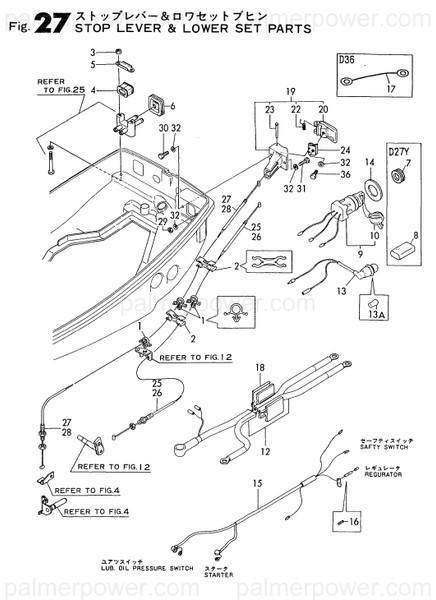

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196630-06901 Lever Asy

Schematic Object Key : 19

Product Description : LEVER ASSY, STOP 196630-06901

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CLAMP, CABLE A 196630-06770
2 CLAMP, CABLE B 196630-06790
3 NUT, M6 196630-10030
4 GROMMET, BATTERY 196630-12662
5 RETAINER, CABLE 196630-12670
6 GROMMET, CABLE 196630-12681
9 SWITCH, KEY 120270-77621
10A KEY, STARTER NO.451 120270-77110
10B KEY, STARTER NO.452 120270-77120
10C KEY, STARTER NO.453 120270-77130
10D KEY, STARTER NO.454 120270-77140
10E KEY, STARTER NO.455 120270-77150
10F KEY, STARTER NO.456 120270-77160
10G KEY, STARTER NO.457 120270-77170
10H KEY, STARTER NO.458 120270-77180
10J KEY, STARTER NO.459 120270-77190
10K KEY, STARTER NO.460 120270-77200
10L KEY, STARTER NO.461 120270-77250
10M KEY, STARTER NO.462 120270-77260
10N KEY, STARTER NO.463 120270-77270
10P KEY, STARTER NO.464 120270-77280
10Q KEY, STARTER NO.465 120270-77290
10R KEY, STARTER NO.466 120270-77300
10S KEY, STARTER NO.467 120270-77310
10T KEY, STARTER NO.468 120270-77320
10U KEY, STARTER NO.469 120270-77330
10W KEY, STARTER NO.470 120270-77340
12 CABLE, BATTERY 120270-77551
13 LAMP, ALARM 120270-77610
13A BULB, 12V-3W 124617-91920
14 GASKET 120270-77650
15 HARNESS, WIRE 120270-77802
16 FUSE 20A 46150-003660
17 HARNESS, WIRE 120380-77800
18 HOLDER 120270-77970
19 LEVER ASSY, STOP 196630-06901
20 LEVER ASSY, STOP 196630-06910
22 SPRING, LEVER 196630-06931
23 PIN, STOP LEVER 196630-06940
24 BRACKET, STOP LEVER 196630-06950
26 CABLE, STOP LEVER 196640-06970
28 CABLE, DECOMPRESSOR 196640-06980
29 NUT, M6 196630-10030
30 BOLT, M6X16 196630-10100
31 BOLT, M6X20 196630-10110
32 WASHER, 6 196630-10350
