YANMAR 22242-000110 Ring, 11

Write a Review
$1.25
SKU:
22242-000110
Schematic Object Key:
10

YANMAR 22242-000110 Ring, 11

$1.25

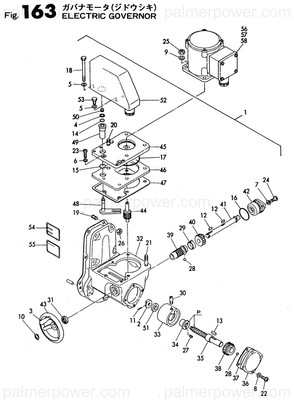

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 22242-000110 Ring, 11

Schematic Object Key : 10

Product Description : RING, 11 22242-000110

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 GOVERNOR ASSY 735410-64510
2 NUT, HANDLE SHAFT 135600-61360
3 KNOB 180110-61430
4 CIRCLIP (7) 135200-61970
5 WASHER, SPRING 6 22217-060000
6 WASHER, SPRING 6 22217-060000
7 WASHER, SPRING 6 22217-060000
8 WASHER, SPRING 6 22217-060000
9 WASHER, SPRING 8 22217-080000
10 RING, 11 22242-000110
10A-1 WASHER, 10 22117-100000
10B-1 WASHER, SPRING 10 22217-100000
10C-1 NUT, M10 26716-100002
11 PIN, COTTER 1.6X30 22417-160300
12 KEY, 4X 12 22512-040120
13 KEY, 5X 16 22512-050160
14 O-RING, 1AP8.0 24311-000080
15 O-RING, 1AP16.0 24311-000160
16 O-RING, 1AP30.0 24311-000300
17 O-RING, 1AG70.0 24321-000700
18 BOLT, M6X 75 26111-060752
19 STUD 8X 16 26211-080162
20 STUD 8X 18 26211-080182
21 STUD 8X 32 26211-080322
22 SCREW 6X 6 26581-060162
23 SCREW M 6X 20 26581-060202
24 SCREW M 6X 20 26581-060202
25 NUT, M8 26711-080002
26 NUT, M8 26711-080002
27 SCREW, M4X 6 26911-040062
28 BALL, STEEL 41112-000140
29 SPRING, PLATE 41112-000750
30 PIN, SPRING GUIDE 41112-000790
31 SEAL, OIL 41112-000880
32 CASE, GEAR 41117-000012
33 RETAINER, SPRING 41117-000030
34 BUSH 41117-000220
35 SHAFT 41117-000230
36 BEARING 41117-000060
37 PACKING 41117-000070
38 WHEEL, WORM 41117-000080
39 WORM 41117-000090
40 WHEEL, WORM 41117-000100
41 SHAFT 41117-000110
41A-1 SHAFT, HANDLE 41100-550600
42 BEARING 41117-000120
43 HANDLE 41117-000130
44 WORM 41117-000140
45 BRACKET, SWITCH 41117-000150
46 PLATE 41117-000160
47 PACKING 41117-000170
48 LEVER 41117-000180
49 GUIDE 41117-000190
50 CAM 41117-000200
51 STOPPER 41117-000210
52 SWITCH, LIMIT 46133-000311
53 BOLT M 6X 12 26111-060122
54 LABEL 42220-008000
55 LABEL, CAUTION 42220-008430
56 MOTOR, AC100-110V 46130-000580
57 MOTOR, AC200-220V 46130-000590
58 MOTOR, AC200-220V 46130-000600
