YANMAR 24190-080003 Ball, Steel 1/4

Write a Review
$1.55
SKU:
24190-080003
Schematic Object Key:
8

YANMAR 24190-080003 Ball, Steel 1/4

$1.55

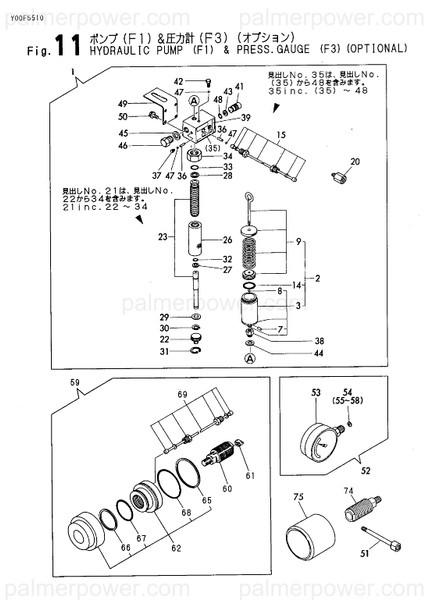

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 24190-080003 Ball, Steel 1/4

Schematic Object Key : 8

Product Description : BALL, STEEL 1/4 24190-080003

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, F1 796901-80050
2 CUP ASSY, OIL 196901-80240
3 BODY 196901-80250
7 PIN 196901-80290
8 BALL, STEEL 1/4 24190-080003
9 COVER 196901-80300
14 O-RING, 1AG30.0 24321-000300
15 PIPE ASSY, PRESSURE 196901-80550
20 NIPPLE (D) 196901-80680
21 PUMP ASSY, HYDRAULIC 196901-80810
22 PLUG, 30 196901-80830
23 BARREL ASSY, F 196901-80840
26 SUPPORT, PLUNGER 196901-80870
27 RING, BACK UP P11 196901-80980
28 RING, BACK UP P20 196901-80990
29 WASHER, 14 22137-140000
30 RING, 14 22242-000140
31 RING, R-30 22262-000300
32 O-RING, 1AP11.0 24311-000110
33 O-RING, 1AP20.0 24311-000200
34 NUT, LOCK M27 26776-270002
35 BRACKET ASSY, F 196901-80910
36 VALVE, INJECTION 196901-80040
37 SCREW 196901-80130
38 NIPPLE 196901-80700
39 LABEL 196901-80881
41 COCK, CHANGE 196901-80940
42 VALVE, RELIEF 196901-80960
43 RING, BACK UP P11 196901-80980
44 GASKET, 13X1.0 23414-130000
45 GASKET, 21X1.0 23414-210000
46 PLUG, G1/2 23897-040002
47 BALL, STEEL 3/16 24190-060003
48 O-RING, 1AP11.0 24311-000110
49 PLATE 196901-80971
50 BOLT, M8X 20 PLATED 26106-080202
51 PIPE, EXTENSION A 196901-80750
52 GAUGE ASSY, PRESSURE 796901-80060
53 GAUGE 196901-80400
54 GASKET SET 196901-80450
55 GASKET, 3.5 196901-80460
56 GASKET, 4.0 196901-80470
57 GASKET, 4.5 196901-80480
58 GASKET, 5.0 196901-80490
59 CYLINDER ASSY 796901-70250
60 RETAINER, A-1 L130 196901-70201
61 RETAINER 196901-70210
62 CYLINDER ASSY, M45-1 196901-70250
65 RING, BACK UP G90 196901-80730
66 RING, BACK UP G65 196901-80740
67 O-RING, 1AG65.0 24321-000650
68 O-RING, 1AG90.0 24321-000900
69 PIPE ASSY, PRESSURE 196901-80550
74 RETAINER, A-1 L130 196901-70201
75 RETAINER, PUSH A-6 196901-70451
