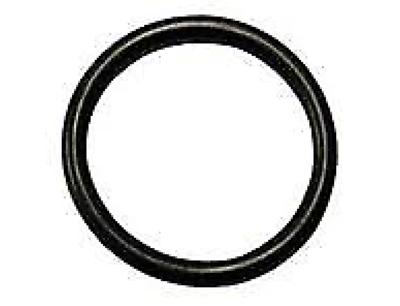

YANMAR 24311-000200 O-Ring, 1Ap20.0

Write a Review
$1.76
SKU:
24311-000200
Availability:
Please call for availability Thank you
Schematic Object Key:
3-1

YANMAR 24311-000200 O-Ring, 1Ap20.0

$1.76

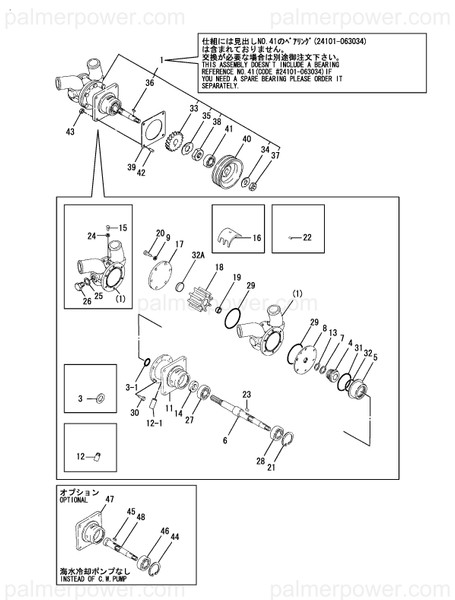

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 24311-000200 O-Ring, 1Ap20.0

Schematic Object Key : 3-1

Product Description : O-RING, 1AP20.0 24311-000200

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 727650-42100
3-1 O-RING, 1AP20.0 24311-000200
4 SEAL, MECHANICAL 123472-42060
5 CASE, MECANICAL SEAL 127610-42070
6 SHAFT, WATER PUMP 127610-42080
7 COLLAR 123472-42090
8 PLATE, WEAR 127610-42100
9 WASHER, 6 126630-42710
11 CASE, BEARING 127610-42121
11-1 CASE, BEARING 127610-42421
12-1 JOINT, DRAIN 120130-42130
13 CIRCLIP, 18 123472-42140
14 SEAL, TC203508 123472-42150
15 SCREW, CAM 127610-42150
16 CAM, IMPELLER T=4 127610-42160
17 COVER, PUMP SIDE 123325-42170
18 IMPELLER 127610-42200
18-1 IMPELLER, PUMP 127610-42270
19 SEAL, IMPELLER BOSS 127610-42230
20-1 BOLT, M6X 12 26113-060122
21 RING, 47 22252-000470
22 PARALLEL PIN 4X10 22312-040100
23 KEY, 5X 16 22512-050160
24 GASKET, 6X1.0 23414-060000
27 BEARING, BALL 6204 24101-062044
28 BEARING, BALL 6204U 24102-062044
29 O-RING, 1AG70.0 24321-000700
30 BOLT, M6X 20 26113-060202
31 O-RING, 1AG60.0 24321-000600
32 O-RING, 1AG40.0 24321-000400
32A COVER, IMPELLER 127610-42220
33 GEAR, PUMP DRIVE 127610-42320
34 WASHER, PULLEY 127610-42350
35 WASHER, SHAFT 127610-42440
36 KEY, WOODRUFF 4X13 22522-040130
37 NUT, M14 26606-140002
38 NUT, M20 26736-200002
39 GASKET, WATER PUMP 127610-42190
40 V-PULLEY, PUMP 127610-42450
41 BEARING, BALL 6303 24101-063034
42 STUD, M8X 20 26216-080202
43 NUT, M8 26366-080002
43-1 NUT, M8 26306-080002
44 RING, 47 22252-000470
45 KEY, 5X 16 22512-050160
46 BEARING, BALL 6204 24101-062044
47 CASE, BEARING 41641-550500
48 SHAFT, GEAR 41641-550510

Description

Genuine YANMAR Marine Turbo Oil Return O-ring

(To suite 4LH-TE / HTE ENGINES)

Yanmar part number: 24311-000200

Genuine Yanmar Parts & Accessories

Fits:
4LH-TE
4LH-HTE

and others.....

Please contact us with your exact model and serialnumber if unsure.



YANMAR 24311-000200 O-Ring, 1Ap20.0

PRODUCT NOTES

The Yanmar YM-24311-000200 O-Ring is often used on the following models:

  • 3TN75L-RNF2, 3TN82L-RNF2, 3TN84L-RDC, 3TN84L-RDCC, 3TN84L-RHK, 3TN84L-RHKCH, 3TN84TL-RMZ, 3TN84-TLRMZ, 3TN84TL-RMZ2, 3TN84-TLRMZ2
  • 3TN84TL-RTBA, 3TN84TL-RTBB, 3TN84TL-RTBY, 3TN84TL-RTBZ, 3TNE68-GB2, 3TNE68-GB2S, 3TNE74-GB2, 3TNE74-GB2S, 3TNE84-GB2, 3TNE84-GB2S
  • 4T112TL-GN, 4T112TL-NC, 4TN100L-NC, 4TN100TL-NC, 4TN82L-RNF2, 4TN82TL-RMZ, 4TN84TL-RMCD, 4TNA78TL-RFA, 4TNE84-GB2, 4TNE84-GB2S
  • 4TNE84T-GB2S, 4TNV94CHT-NTBC, 4TNV94HT-ZSKTC, 4TNV98C-NCR, 4TNV98T-NAT, 4TNV98T-ZCXSL2C, 4TNV98T-ZCXSLC

This is a genuine Yanmar part shipped with a 6-month warranty.
