YANMAR 24315-000110 O-Ring, 1Bp11.0

Write a Review
$1.50
SKU:
24315-000110
Schematic Object Key:
16

YANMAR 24315-000110 O-Ring, 1Bp11.0

$1.50

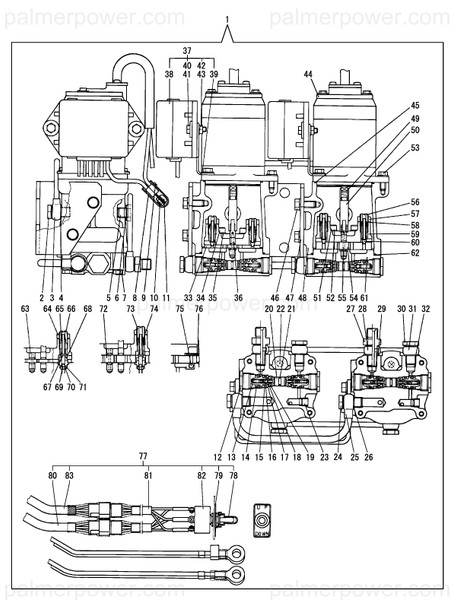

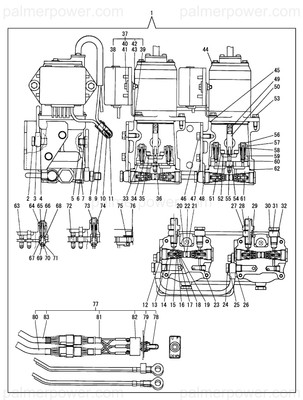

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 24315-000110 O-Ring, 1Bp11.0

Schematic Object Key : 16

Product Description : O-RING, 1BP11.0 24315-000110

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 POWER, PU-11 24V 196340-07010
2 BOLT, JOINT 6 23857-060000
3 PIPE 196399-11820
4 GASKET, 12X1.0 23414-120016
5 PLUG, 12 23887-120002
6 GASKET, 12X1.0 23414-120000
7 BOLT M 6X 30 26016-060302
8 CAP 196399-05780
9 BINDER 196399-05190
10 NUT, LOCK M6 26756-060002
11 SCREW, M6X 8 26022-060082
12 PLUG, CHECK VALVE 196398-01410
13 SPRING 196399-01460
14 O-RING 1B P-12.5 24315-000125
15 BALL, STEEL 3/16 24190-060001
16 O-RING, 1BP11.0 24315-000110
17 O-RING, 1BS7.0 196399-11360
18 SEAT, VALVE 196398-01340
19 HOLDER 196398-01400
20 PISTON 196398-01500
21 O-RING, 1AP8.0 24311-000080
22 PIN, PARALLEL 196399-01120
23 PLUG, R01 23871-010000
24 BOLT, JOINT 6 23857-060000
25 PIPE 196399-11810
26 GASKET, 12X1.0 23414-120016
27 CONNECTOR, PF1/4-M12 196399-11880
28 PIPE, UP 196399-11840
29 GASKET, 12X1.0 23414-120016
30 BOLT, JOINT 6 23857-060000
31 PIPE, DOWN 196399-11850
32 GASKET, 12X1.0 23414-120016
33 BODY, PUMP A4 196399-11050
34 BOLT, M6X 30 26450-060302
35 WASHER 6 22287-060000
36 GEAR, 1ST 18 196399-11200
37 RELAY ASSY, CONTROL 796399-15130
38 RELAY ASSY, CONTROL 196399-05660
39 BRACKET, RELAY 196399-15340
40 BOLT, M6X 20 PLATED 26116-060202
41 WASHER, 6 22157-060000
42 NUT, LOCK M6 26756-060002
43 WASHER 6 22287-060000
44 MOTOR, DC 24V 196399-05501
45 O-RING, 1AS67.0 24341-000670
46 BOLT, M8X 20 26016-080202
47 BRACKET, PUMP 196399-15350
48 TANK 196399-11010
49 HOLDER 196399-01270
50 JOINT 196399-01252
51 BOLT, M6X 35 26450-060352
52 WASHER 6 22287-060000
53 BOLT, M6X 16 PLATED 26106-060162
54 BODY, PUMP A9 196399-11040
55 GEAR, 1ST 196398-01230
56 SCREW, ADJUSTING M10 196399-11410
57 NUT, LOCK M10 26776-100002
58 SPRING 196399-11750
59 BODY, PUMP 196398-01110
60 VALVE, PILOT 196399-01670
61 BODY, PUMP C 196399-11070
62 O-RING, 1AS75.0 24341-000750
63 GEAR, 2ND 18 196399-11210
64 NUT, LOCK M10 26776-100002
65 SPRING 196399-11750
66 SCREW, ADJUSTING M10 196399-11410
67 SUPPORT, SPRING 196398-01310
68 HOLDER, VALVE 196398-01300
69 BALL, STEEL 5/32 24190-050001
70 SEAT, VALVE 196398-01340
71 O-RING, 1BS7.0 196399-11360
72 GEAR 196398-01240
73 SCREW, ADJUST 196399-01770
74 WASHER, 4 22117-040000
75 BALL, STEEL 3/16 24190-060001
76 STRAINER 194630-43220
77 SWITCH ASSY 796399-15120
78 CAP, SWITCH 196399-05110
79 LABEL, UP-DOWN 196399-05140
80 CABLE, L=6800 196399-05202
81 CONNECTOR, L=200 196399-05281
82 SWITCH, TILT 196399-15100
83 CABLE, L=6800 196399-15220
