YANMAR 26116-060146 Bolt, M6X 14 Plated

Write a Review
$1.95
SKU:
26116-060146

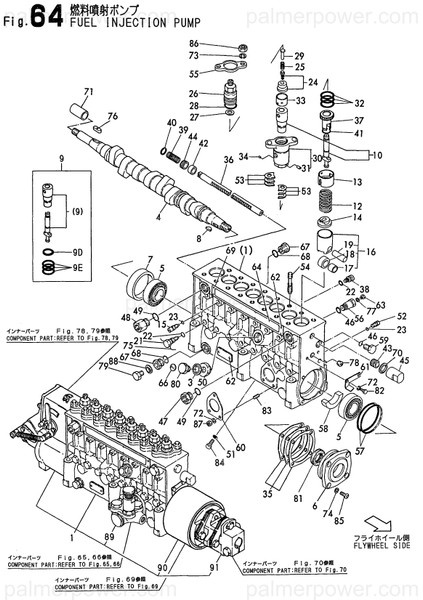

Schematic Object Key:
82

YANMAR 26116-060146 Bolt, M6X 14 Plated

$1.95

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 26116-060146 Bolt, M6X 14 Plated

Schematic Object Key : 82

Product Description : BOLT, M6X 14 PLATED

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A PUMP ASSY, INJECTION 748816-51301
1A-1 PUMP ASSY, INJECTION 748816-51302
3 SEAL WASHER 16 43400-500500
3-1 WASHER, SEAL 16 22190-160002
4A CAMSHAFT 148816-51030
5 BEARING 144626-51050
6A SUPPORT, CAMSHAFT A 144626-51060
7 SUPPORT, CAMSHAFT B 144626-51070
8A KEY, 5X19 144626-51090
9 PLUNGER ASSY 748616-51600
9D O-RING 144626-51360
9E O-RING, S34 144626-51420
12 SPRING, PLUNGER 148616-51160
13 RETAINER, SPRING A 144626-51171
14 RETAINER, SPRING B 144626-51181
15 STOPPER 144626-51191
16 TAPPET ASSY 144626-51200
17 BUSH 144626-51210
18 ROLLER, TAPPET 144626-51220
19 PIN, ROLLER 144626-51230
21 STOPPER 144626-51271
22 O-RING, P9 144626-51281
23 O-RING, P6 144626-51290
24A VALVE ASSY, DELIVERY 148616-51301
25 SPRING, DELIV. VALVE 135210-51330
26 HOLDER, DELIVERY 144626-51340
27 PACKING 135210-51351
29 STOPPER, VALVE 145613-51360
30 SUPPORT ASSY, BARREL 148616-51390
31 PIN 144626-51410
33 DEFLECTOR 148616-51420
33-1 DEFLECTOR 148616-51421
34 PIN 144626-51430
35 SHIM SET, CAMSHAFT 144626-51451
36 RACK, CONTROL 148816-51500
37 PINION 144626-51511
38 SCREW 144626-51521
39 SPRING 135410-51530
40 WASHER 135410-51540
41 CIRCLIP 144626-51540
42 BUSH, RACK 144626-51580
43 SCREW 144626-51590
44 SCREW 144626-51600
45 NUT, CAP 144626-51641
46 O-RING 144626-51660
47 PLUG 144626-51670
48 PLUG 148616-51671
49 O-RING 144626-51680
50 PLUG, M16 L17 136603-51690
51 WASHER, SEAL 144626-51700
52 PLUG 144626-51730
53 SHIM SET, ADJUSTING 144626-51751
54 BOLT 144626-51800
55 WASHER 144626-51810
56 PROTECTOR, SPILL 144626-51830
57 O-RING, S71 144626-51840
58 BEARING 144626-51850
59 PROTECTOR, SPILL 148616-51860
60 GASKET 124410-51861
61 POINTER 144626-51880
62 RIVET 124220-51890
63 BOLT 122780-51900
64 LABEL 144626-51911
66 LABEL 144626-51930
67 PLUG 144626-51940
68 O-RING, 1016 144626-51950
69 LABEL 148816-51950
70 WASHER, SEAL M18 144626-51960
70-1 WASHER, SEAL 18 22190-180002
71 SPACER, CAMSHAFT 140623-61500
72 WASHER, SPRING 6 22217-060000
73 WASHER, SPRING 10 22217-100000
74 WASHER, 8 22287-080000
75 WIRE, 0.6 22451-060000
75-1 WIRE, 0.8 22454-080000
76 KEY, 7X 22 22512-070222
77 GASKET, 6X1.0 23418-060000
78 PLUG, R02 23871-020000
79 PLUG 23881-120002
80 PLUG, 16 23887-160002
81B SEAL, OIL TC254008 24421-254008
82 BOLT, M6X 14 PLATED 26116-060146
83 STUD, M6X 12 26226-060122
83-1 STUD, M6X 16 26226-060162
84 BOLT, M6X 16 26450-060162
84-1 BOLT 148688-51840
85 SCREW, M8X20 26557-080202
86 NUT, M10 26606-100002
87 NUT, M6 26716-060002
88 SEAL WASHER 12S 43400-500450
88-1 WASHER, SEAL 12 22190-120002
89 PUMP ASSY, FUEL FEED 748616-52700
89-1 PUMP ASSY, FUEL FEED 148688-52000
90A TIMER ASSY 748816-54800
90A-1 TIMER ASSY 748816-54801
90A-2 TIMER 148816-54501
91A COUPLING ASSY 744626-54910
91A-1 JOINT 148016-54992
