YANMAR 26557-040502 Screw, M4X50

Write a Review
$1.72
SKU:
26557-040502
Schematic Object Key:
37

YANMAR 26557-040502 Screw, M4X50

$1.72

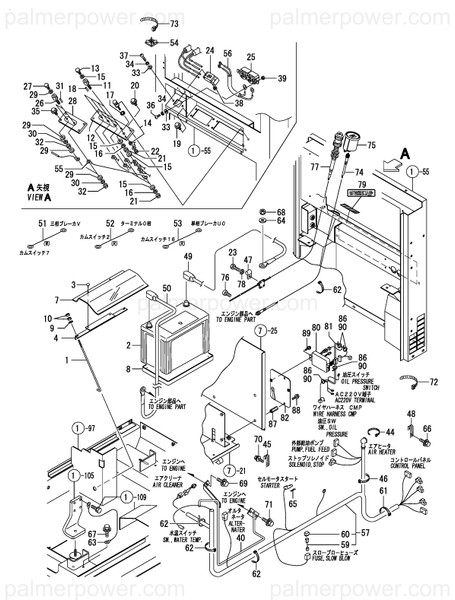

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 26557-040502 Screw, M4X50

Schematic Object Key : 37

Product Description : SCREW, M4X50

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 ROD, BATTERY CLAMP 172647-16320
2 BATTERY 75D31R-MF 198010-51500
3 CLIP, TREE 172458-64610
4 CLAMP ASSY, BATTERY 184014-77152
7 COVER, BATTERY 184014-77251
8 BRACKET 170905-77820
9 WASHER, 6 22157-060000
10 NUT, M6 26717-060002
11 TERMINAL 170903-79300
12 PLATE, TERMINAL 170903-79321
13 BOLT 170903-79330
14 TERMINAL 183860-91420
15 WASHER, 8 22133-080000
16 WASHER, SPRING 8 22213-080000
17 WASHER, SPRING 6 22232-060000
18 PIN, PARALLEL M3X 8 22312-030080
19 BOLT, M6X 20 26014-060202
20 BOLT, M6X 25 PLATED 26106-060252
21 NUT, M8 26713-080002
22 NUT, LOCK M5 26753-050002
23 BOLT, M5X 10 PLATED 26116-050102
24 BREAKER 170904-79420
25 SOCKET, 125VX2 183920-91320
26 TERMINAL 170903-79300
27 BOLT 170903-79330
28 PLATE S, TERMINAL 184014-79340
29 WASHER, 8 22133-080000
30 WASHER, SPRING 8 22213-080000
31 PIN, PARALLEL M3X 8 22312-030080
32 NUT, M8 26713-080002
33 WASHER, 4 22137-040000
34 WASHER, SPRING 4 22217-040000
35 BOLT, M6X 25 PLATED 26106-060252
36 SCREW, M4X16 26557-040162
37 SCREW, M4X50 26557-040502
38 NUT, M4 26716-040002
39 NUT, M4 26716-040002
40 SUPPORT ASSY 184014-08701
44 BAND 172126-11510
45 CLAMP, 26 172183-14650
46 BAND 172137-16560
47 CLAMP 172164-16560
48 CLAMP 194440-51620
49 CORD, BATTERY 184014-79240
50 CORD, BATTERY 184012-79250
51 WIRE,SW-BRAKER 184214-79560
52 WIRE,SW 2-TERMI 184214-79610
53 WIRE,SW-BRAKER 184214-79620
54 BASE, MOUNT 184015-79700
55 WIRE,TERMI U1-O 184214-79820
56 WIRE,BREAKER-CONSENT 184214-79830
57 HARNESS COMP, WIRE 184014-79890
59 HUSE,SLOW BLOW (50A 172458-16550
60 HOUSING 172447-17140
61 CLAMP, HOSE 172122-79930
62 CLIP, HOSE 172122-79940
63 CABLE, EARTH 170903-79970
64 WASHER, 8 22137-080000
65 PIN, COTTER 2.0X25 22417-200250
66 BOLT, M8X 16 26014-080162
67 BOLT, M8X 20 26014-080202
68 NUT, M8 26051-080002
69 BOLT, M8X 16 PLATED 26106-080162
70 BOLT, M10X 16 PLATED 26106-100162
71 BOLT, M10X 16 PLATED 26106-100162
72 BAND 146 933168-55770
73 BAND 146 933168-55770
74 CABLE ASSY, METER 194185-56900
75 TACHOMETER 171082-91100
76 BOLT, M4X8 1E6470-02400
77 CABLE ASSY, PUSHPULL 184014-67100
78 WASHER, SPRING 5 22217-050000
79 LABEL,LO LAMP 184014-07440
80 DETECTOR ASSY, O/S 184016-79600
81 WIRE HARNESS ASSY,OS 184014-79700
82 BRACKET CMP,O/S 184014-79720
86 CLIP, HOSE 172122-79940
87 NUT, M8X40 1S7123-81060
88 BOLT, M8X 20 26014-080202
89 BOLT, M6X 14 PLATED 26106-060142
90 BAND 146 933168-55770
