YANMAR 26587-080252 Screw, M8X25

Write a Review
$1.09
SKU:
26587-080252
Schematic Object Key:
39

YANMAR 26587-080252 Screw, M8X25

$1.09

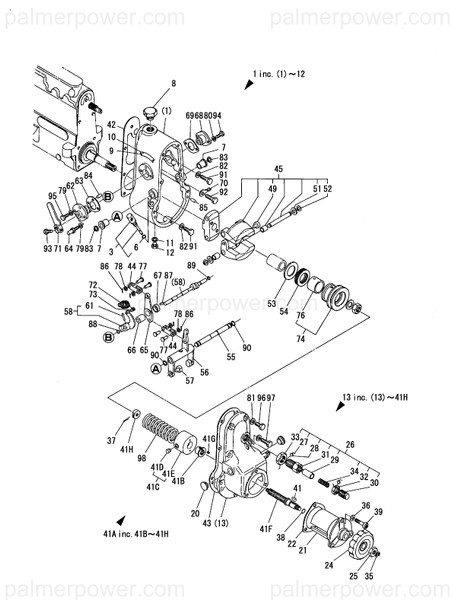

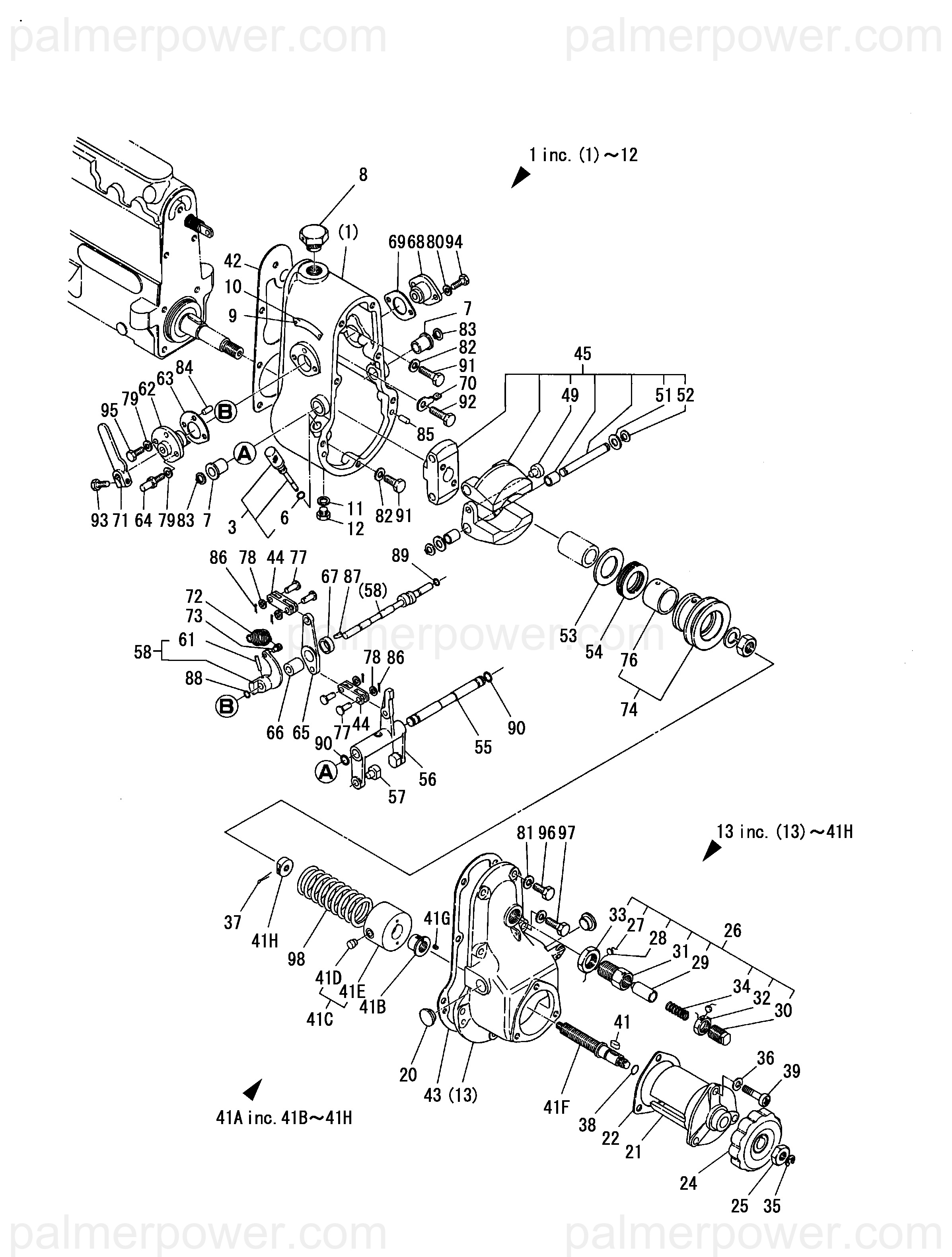

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 26587-080252 Screw, M8X25

Schematic Object Key : 39

Product Description : SCREW, M8X25 26587-080252

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CASE ASSY, GOVERNOR 735210-61491
3 DIPSTICK, OIL 145613-51950
6 O-RING, 1AP7.0 24311-000070
7 BUSH, LEVER 135210-61440
8 PLUG, AIR VENT 135200-61730
9 LABEL, STOP HANDLE 135400-61840
10 RIVET 137900-91451
11 GASKET, 10X1.0 23414-100000
12 PLUG, 10 23881-100002
13 COVER ASSY 735200-61060
20 PLUG 135600-61430
21 GUIDE 135600-61450
22 GASKET, GUIDE 135210-61460
24 HANDLE 135600-61491
25 NUT 135600-61500
26 CONTROLLER 135210-61900
27 LEAD 135210-61090
28 WIRE 135210-61100
29 STOPPER 135210-61910
30 RETAINER, SPRING 135210-61930
31 GUIDE, STOPPER 135210-61940
32 NUT, LOCK M16 135400-61950
33 NUT, LOCK M20 135400-61960
34 SPRING, A 135210-61980
35 CIRCLIP (7) 135200-61970
36 WASHER, SPRING 8 22217-080000
37 COTTOR PIN CP1.6X22 22411-160220
38 O-RING, 1AP11.0 24311-000110
39 SCREW, M8X25 26587-080252
41 KEY, 5X 12 22512-050120
41A SHAFT SET, HANDLE 135600-61340
41B BUSH (26X15) 135600-61350
41C RETAINER ASSY 135600-61390
41D STOPPER 135600-61380
41E RETAINER, SPRING 135600-61370
41F SHAFT W/BUSH 135600-61481
41G SCREW, M4X 6 26911-040062
41H NUT, HANDLE SHAFT 135600-61360
42 GASKET, CASE 135200-61050
43 GASKET, CASE COVER 135210-61070
44 LINK, A 135210-61160
45 WEIGHT ASSY,GOVERNOR 135210-61201
49 RETAINER, WEIGHT 135210-61240
51 WASHER 10 22111-100000
52 RING, 10 22242-000100
53 WASHER, 52X3.5 135210-61310
54 THRUST BEARING 135210-61320
55 SHAFT, 1ST LEVER 135210-61510
56 LEVER, GOVERNOR NO.1 135210-61530
57 RETAINER, 1ST LEVER 135210-61540
58 SHAFT ASSY, LEVER 735210-61650
61 PIN, TAPER 3X18 22322-030180
62 RETAINER, 2ND LEVER 135210-61570
63 GASKET, A 135210-61580
64 BOLT, LEVER SHAFT A 135210-61590
65 LEVER, GOVERNOR NO.2 135210-61610
66 SPACER, SHAFT 135210-61620
67 SPACER, 20X6 135210-61630
68 BEARING, 2ND LEVER 135600-61640
69 GASKET, B 135210-61650
70 PLATE, SPRING 135210-61790
71 HANDLE,FUEL SHUT-OFF 135210-61830
72 SPRING, STOP HANDLE 135210-61840
73 PIN 135210-61850
74 RETAINER ASSY,SPRING 135210-61890
76 BUSH 135210-61350
77 PIN, GOVERNOR LINK 180110-66410
78 WASHER, LEVER 131110-66420
79 WASHER, SPRING 6 22217-060000
80 WASHER, SPRING 6 22217-060000
81 WASHER, SPRING 8 22217-080000
82 WASHER, SPRING 8 22217-080000
83 RING, 11 22242-000110
84 PIN, PARALLEL M6X14 22312-060140
85 PIN, PARALLEL M6X14 22312-060140
86 COTTER PIN 1.6X12 22411-160120
87 KEY, WOODRUFF 3X10 22522-030100
88 O-RING, 1AP5.0 24311-000050
89 O-RING, 1AP5.0 24311-000050
90 O-RING, 1AP8.0 24311-000080
91 BOLT M 8X 22 26111-080222
92 BOLT M 8X 28 26111-080282
93 BOLT, M6X 18 PLATED 26116-060182
94 BOLT, M6X 18 PLATED 26116-060182
95 BOLT, M6X 18 PLATED 26116-060182
96 BOLT M 8X 20 PLATED 26117-080202
97 BOLT M 8X 25 PLATED 26117-080252
98 SPRING, GOVERNOR 135210-61710

YANMAR 26587-080252 Screw, M8X25
