YANMAR 41649-555560 Pipe, Water

Write a Review
$7,703.86
SKU:
41649-555560
Schematic Object Key:
29

YANMAR 41649-555560 Pipe, Water

$7,703.86

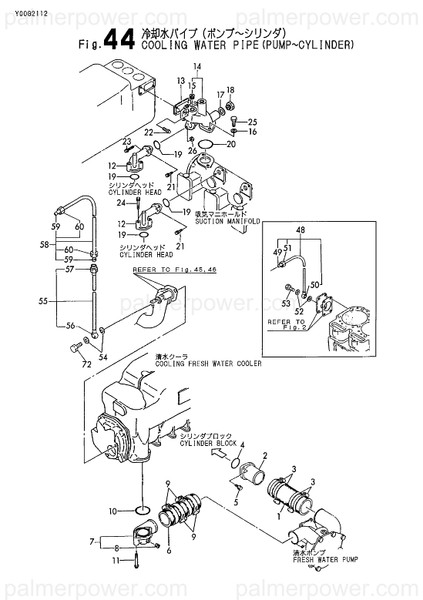

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 41649-555560 Pipe, Water

Schematic Object Key : 29

Product Description : PIPE, WATER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PIPE, COOLING WATER 145647-49300
2 JOINT, PIPE 126616-49400
3 CLAMP, 80 23000-080000
4 O-RING, 1AG60.0 24321-000600
5 BOLT, M8X 20 PLATED 26106-080202
6 PIPE, COOLING WATER 145647-49300
7 PIPE ASSY, WATER 126616-49490
8 PLUG, R04 23871-040000
9 CLAMP, 80 23000-080000
10 O-RING, 1AG60.0 24321-000600
11 BOLT, M8X 55 PLATED 26106-080552
12 PIPE, WATER 126616-49410
13 GASKET, COOLER 126616-49440
13-1 GASKET, COOLER 126616-49441
14 PIPE ASSY, WATER 126616-49770
15 PLUG, R04 23871-040000
16 WASHER, 12 22137-120000
17 GASKET, 21X1.0 23414-210000
18 PLUG, G1/2 23897-040002
19 O-RING, 1AP32.0 24311-000320
20 O-RING, 1AG60.0 24321-000600
21 BOLT, M8X 22 PLATED 26106-080222
22 BOLT, M8X 25 PLATED 26106-080252
23 BOLT, M8X 32 PLATED 26106-080322
24 BOLT, M8X 45 PLATED 26106-080452
25 BOLT, M12X 30 PLATED 26116-120302
26 NUT, M8 26716-080002
27 O-RING, 1AG65.0 24321-000650
28 PIPE, WATER 41649-554200
29 PIPE, WATER 41649-555560
30 VALVE 43600-551750
31 WASHER, 12 22117-120000
32 CLAMP, 90 23000-090000
33 FLANGE, 5K 50 23211-050061
34 GASKET 50 23431-050000
35 BOLT, M12X 50 PLATED 26116-120502
36 NUT, M12 26716-120002
37 JOINT 43560-550590
38 HOSE, RUBBER 43720-554930
39 FLEXIBLE TUBE,RUBBER 43720-554990
40 HOSE, D82 L=100 144628-49900
41 WASHER, 12 22117-120000
42 CLAMP, 90 23000-090000
43 FLANGE, 5K 50 23211-050061
44 GASKET 50 23431-050000
45 BOLT, M12X 50 PLATED 26116-120502
46 NUT, M12 26716-120002
47 JOINT 43560-550590
48 PIPE ASSY, WATER 126674-49450
49 JOINT, 6 23314-060000
50 JOINT, PIPE 6-12 23344-060000
51 NUT, CAP 6 23824-060000
52 GASKET, 12X1.0 23414-120000
53 BOLT, JOINT 6 23854-060000
54 GASKET, 12X1.0 23414-120000
55 PIPE ASSY, PRESSURE 41649-554140
56 JOINT, PIPE 6-12 23344-060000
57 UNION 43554-001441
58 PIPE ASSY, PRESSURE 41649-554160
59 JOINT, 6 23314-060000
60 NUT, CAP 6 23824-060000
61 GASKET, 22X1.0 23414-220029
62 NUT, CAP 18 23824-180000
63 UNION, 18 23834-180000
64 PLUG, G3/8 23894-030002
65 UNION VALVE 43624-000450
66 PIPE, WATER 43714-552590
67 PIPE, WATER 43714-552610
68 PIPE ASSY, WATER 43714-553550
69 JOINT, PIPE 18 23341-180000
70 JOINT BOLT 18 23851-180000
71 JOINT, 3-WAY 43580-001690
72 BOLT, JOINT 6 23854-060000
73 JOINT, 18 23314-180000
74 GASKET, 17X1.0 23414-170022
