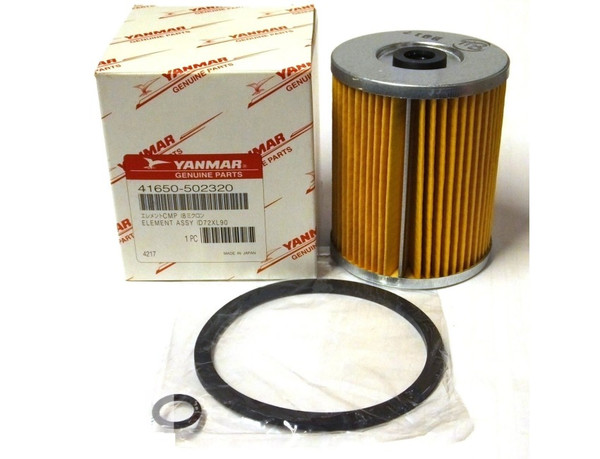

YANMAR 41650-502320 Element Assy(D72Xl90

Write a Review
$25.24
SKU:
41650-502320
Schematic Object Key:
3A

YANMAR 41650-502320 Element Assy(D72Xl90

$25.24

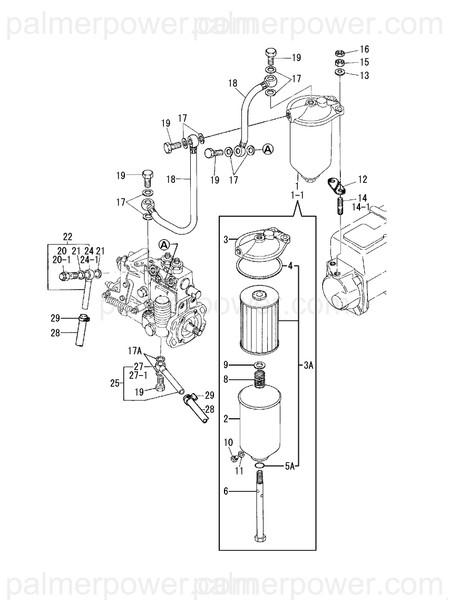

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 41650-502320 Element Assy(D72Xl90

Schematic Object Key : 3A

Product Description : ELEMENT ASSY(D72XL90 41650-502320

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-1 STRAINER, FUEL 41650-550300
2 CASE 123672-55720
3 COVER 123672-55700
3A ELEMENT ASSY(D72XL90 41650-502320
4 GASKET 123325-35140
5A O-RING, 1AP12.0 24311-000120
6 BOLT 123325-35110
7 O-RING, 1AP12.0 24311-000120
8 SPRING 123325-35170
9 WASHER 123325-35160
10 PLUG, DRAIN M8 123672-55750
11 GASKET 123672-55760
12 PAD, CUSHION 127610-55820
13 WASHER, 10 22137-100000
14-1 STUD, M10X 35 26216-100352
15 NUT, M10 26706-100002
16 NUT, LOCK M10 26756-100002
17 GASKET, 14X1.0 23414-140018
17-1 WASHER, SEAL 14 22190-140002
17A GASKET, 14X1.0 23414-140018
18 PIPE, FUEL 120130-59010
19 BOLT, JOINT 8 23857-080000
20-1 VALVE 135310-59910
21 GASKET 124450-01980
22 PIPE ASSY, FUEL 123325-59420
24-1 JOINT 110250-39030
24-2 JOINT 110250-39030
25 PIPE ASSY, FUEL 123325-59420
27-1 JOINT 110250-39030
27-2 JOINT 110250-39030
28 PIPE, 9/16X2000 127610-59150
29 CLAMP, 16 23000-016000

Description

YANMAR MARINE FUEL FILTER

(To suite various series engines)

Yanmar part number: 41650-502320

Genuine Yanmar Parts & Accessories
This fuel filter fits:
2LM/3LM/3LMZ 3JH5E 4JHZAE, 4JH-TZAE, 4JH-HTZAE 4JH5E 4CH SERIES 4JH-(H)(T)ZAE 4JH-DT 4JH-HTZ 4JH(T,HT) 4JH(T)Z(TZ1,2)AY 4LH-(T,HT,DT,ST)E 4LH-HT/DTZ 4LH-UT,ST 4LH-UT/UTZAY/UTZ/ST/STZAY/STZ 4LHA-DT/HTE 4LHA-ST/DT/HT/(Z)E(P)
and others....
Please contact us with your exact model and serial number if unsure.



Quick Overview

ELEMENT ASSY(D72XL90

SKU : 41650-502320

PRE: YAN

BRAND: YANMAR

COMPANY: YANMAR Generators



PRODUCT NOTES

The YM-41650-502320 Fuel Filter Element can be used on the following Yanmar engine models:

  • 2LM
  • 2YM15
  • 3JH5AE, 3JH5E
  • 3LM, 3LMZ
  • 3TNV88-BDIPT, 3TNV88-ZCPCLY
  • 4JH2-DTZ, 4JH3, 4JH3-DTZ, 4JH3-DTZAY, 4JH3ZA, 4JH4AE, 4JH5E, 4JH-HTZ, 4JH-HTZA, 4JH-HTZAE, 4JH-HTZY, 4JHL-HTN
  • 4JHL-N, 4JHL-TN, 4JH-TZ, 4JH-TZ1, 4JH-TZ2, 4JH-TZA, 4JH-TZAE, 4JH-TZAY, 4JH-TZZ, 4JHYE, 4JHZ, 4JHZAE

This is a genuine Yanmar part shipped with a 6-month warranty.

Call us at (800) 364-4637 if you have any questions about this item.
As always, your satisfaction is guaranteed!
