YANMAR 43711-571850 Pipe, Oil

Write a Review
$437.33
SKU:
43711-571850
Schematic Object Key:
69

YANMAR 43711-571850 Pipe, Oil

$437.33

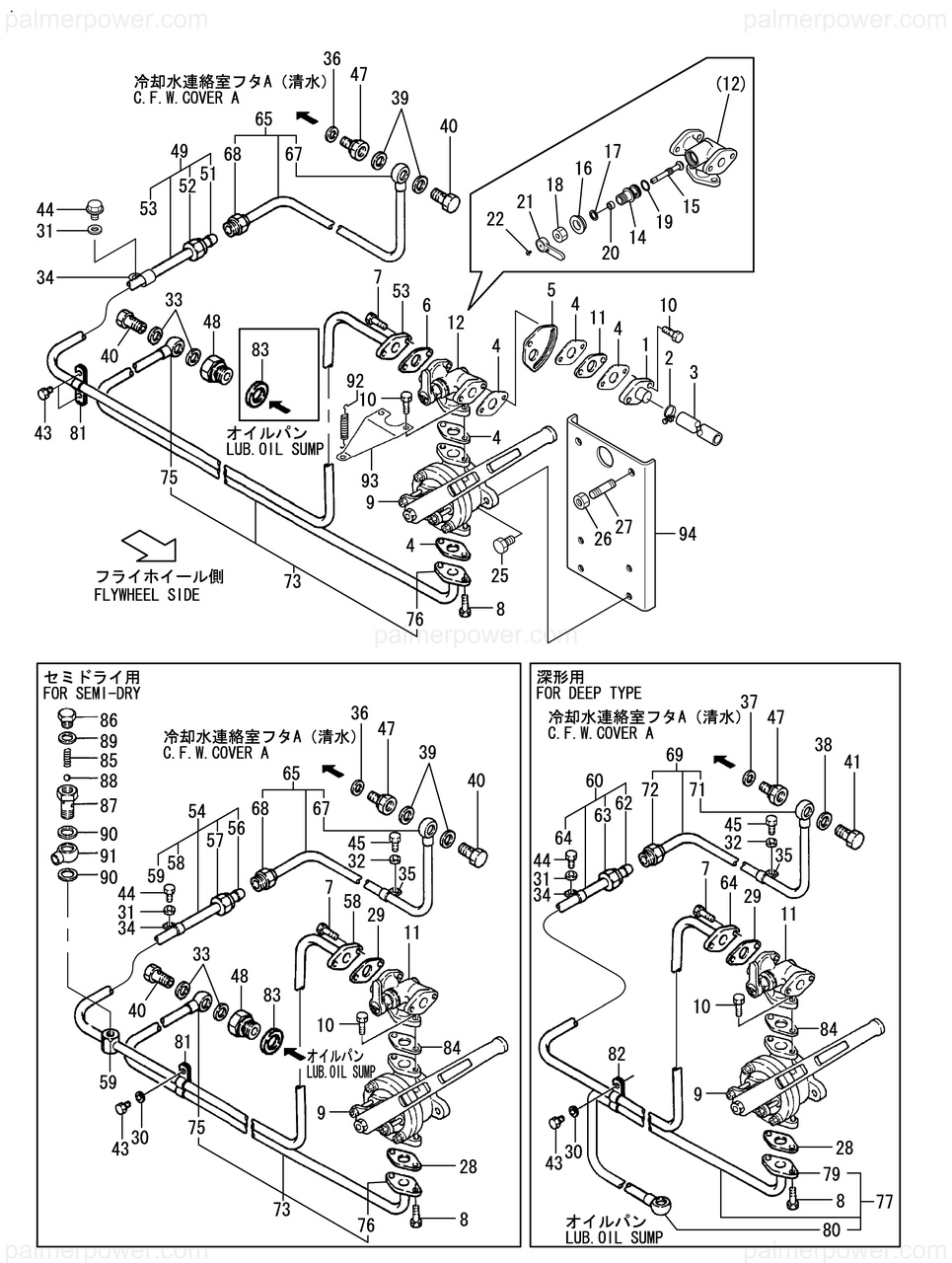

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 43711-571850 Pipe, Oil

Schematic Object Key : 69

Product Description : PIPE, OIL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 FLANGE, WASTE OIL 43711-553710
2 CLAMP, 35 23010-035000
3 PIPE, 19X 600 23091-190600
4 GASKET, PUMP IN/OUT 145610-84881
5 FLANGE, SPECTACLE 137602-39650
6 GASKET 137600-39250
7 BOLT, M10X 28 PLATED 26106-100282
8 BOLT, M10X 28 PLATED 26106-100282
9 WING PUMP, 20 27501-020000
10 BOLT, M10X 40 PLATED 26106-100402
11 FLANGE, 23.2 137600-39210
12 VALVE ASSY, 3-WAY 740623-39342
14 COVER 43600-010080
15 SPINDL 43600-010090
16 NUT, COVER 43600-010100
17 RING, PACKING 43600-010110
18 NUT, PACKING 43600-010120
19 O-RING 43600-010130
20 GASKET 43600-010141
21 HANDLE ASSY, COCK 43600-010150
22 SCREW 43600-010160
25 BOLT, M10X 25 PLATED 26106-100252
26 NUT, M10 26706-100002
27 BOLT, M10X 30 PLATED 26106-100302
28 GASKET 43400-003021
29 GASKET 43400-003021
30 WASHER, 8 22137-080000
31 WASHER, 8 22137-080000
32 WASHER, 8 22137-080000
33 GASKET, 20X1.0 23414-200000
34 CLAMP, A15X 8 23297-150081
35 CLAMP, A15X 8 23297-150081
36 GASKET, 16X1.0 23414-160000
37 GASKET, 16X1.0 23414-160000
38 GASKET, 20X1.0 23414-200000
39 GASKET, 20X1.0 23414-200000
40 BOLT, JOINT 15 23857-150000
41 BOLT, JOINT 15 23857-150000
42 PLUG, 16 23887-160002
43 BOLT, M8X 12 PLATED 26106-080122
44 BOLT, M8X 12 PLATED 26106-080122
45 BOLT, M8X 12 PLATED 26106-080122
46 BOLT, M10X 25 PLATED 26106-100252
47 JOINT 43570-550251
48 RETAINER 43570-551880
49 PIPE, OIL 43711-571800
51 JOINT, 15 23311-150000
52 NUT, CAP 15 23821-150000
53 FLANGE 43321-000860
54 PIPE, OIL 43711-571810
56 JOINT, 15 23311-150001
57 NUT, CAP 15 23821-150001
58 FLANGE 43321-000860
59 JOINT, 3-WAY 43580-550830
60 PIPE ASSY, OIL 43711-560411
62 JOINT, 15 23311-150001
63 NUT, CAP 15 23821-150001
64 FLANGE 43321-000860
65 PIPE ASSY, OIL 43711-571821
67 JOINT, PIPE 15-20 23341-150000
68 UNION(M)15 43551-001481
69 PIPE, OIL 43711-571850
71 JOINT, PIPE 15-20 23341-150000
72 UNION(M)15 43551-001481
73 PIPE ASSY, OIL 43711-571831
75 JOINT, PIPE 15-20 23341-150000
76 FLANGE 43320-550420
77 PIPE ASSY, OIL 43711-558871
79 FLANGE 43320-550420
80 BEND 43560-550960
81 RETAINER 43730-550710
82 RETAINER 43730-551840
83 GASKET, 30X1.0 23414-300000
84 GASKET, PUMP IN/OUT 145610-84881
85 SPRING, VALVE 135602-34380
86 RETAINER 135602-34390
87 SEAT, VALVE 145613-39960
88 BALL 123460-55910
89 GASKET, 14X1.0 23414-140000
90 GASKET, 16X1.0 23414-160000
91 JOINT 43511-000110
92 SPRING, LEVER 139653-66831
93 RETAINER, SPRING 140623-39440
94 PLATE 42215-556051
95 NUT, M10 26706-100002
96 FLANGE 43320-550030
97 PIPE, FLEXIBLE L=400 43720-555850
98 HOSE ASSY, RUBBER 43720-557230
99 CLIP 33,HOSE 43730-552131
100 SOCKET, R1X1/2 23133-100600
101 NIPPLE, R3/4 23163-060000
102 FLANGE, 5K 15 23211-015012
103 FLANGE, 5K 25 23211-025025
104 GASKET, 5K15X0.5 23432-015000
105 GASKET, 5K25X0.5 23432-025000
106 BOLT, M10X 30 PLATED 26106-100302
107 BOLT, M10X 30 PLATED 26106-100302
108 NUT, M10 26366-100002
109 NUT, M10 26366-100002
110 FLANGE, ROUND 5K-25A 43310-550880
111 FLANGE, ROUND 15A 43310-550960
112 FLANGE, 25 43320-551770
113 JOINT, PIPE 43510-550770
114 HOSE ASSY, RUBBER 43720-557160
115 HOSE ASSY, R1XL425 43720-557240
116 WASHER, SPRING 10 22217-100000
117 FLANGE, 5K 25 23211-025034
118 PACKING 25 23437-025000
119 FLANGE, ROUND 5K-25A 43310-550880
120 O-RING, 1AG35.0 24321-000350
121 BOLT, M8X 12 PLATED 26106-080122
122 BOLT, M10X 20 PLATED 26106-100202
123 BOLT, M10X 40 PLATED 26106-100402
124 BOLT, M10X 40 PLATED 26106-100402
125 BOLT, M10X 45 PLATED 26106-100452
126 NUT, M8 26366-080002
127 NUT, M10 26366-100002
128 U-BOLT, 20 26464-020000
129 PIPE, OIL INLET 41639-550560
130 PIPE,OIL INLER 41639-552420
131 JOINT, PIPE 41639-550610
132 FLANGE, ROUND 5K-25A 43310-550880
133 JOINT 43560-551211
134 FITTING, PIPE 43730-550980
135 SUPPORT 43730-551780
136 JOINT, PIPE 12-16 23341-121601
137 BEND 43560-552660
138 PIPE ASSY, FLEXIBLE 43720-557190
139 GASKET, 5K25X1.5 23438-025000
140 BOLT, M10X 55 PLATED 26106-100552
141 BEND 43560-552650
142 BOLT, M10X 35 PLATED 26106-100352
143 NUT, M10 26716-100002
144 BOLT, M8X 16 PLATED 26106-080162
145 FLANGE, 23.2 137600-39210
146 PIPE, FLEXIBLE L=425 43720-555880
147 HOSE ASSY, R1XL425 43720-557240
