YANMAR 44100-554080 Spring

Write a Review
$687.48
SKU:
44100-554080
Schematic Object Key:
14E

YANMAR 44100-554080 Spring

$687.48

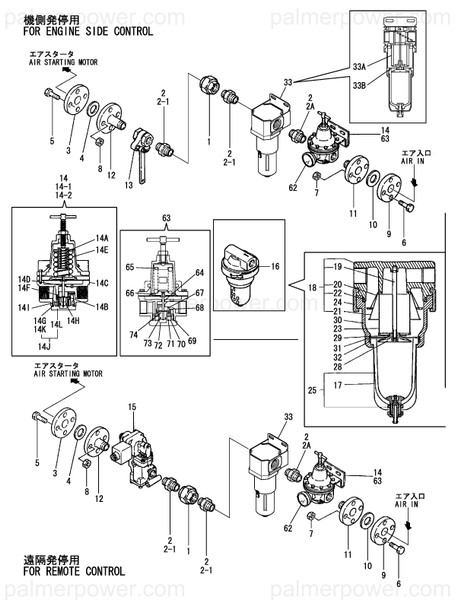

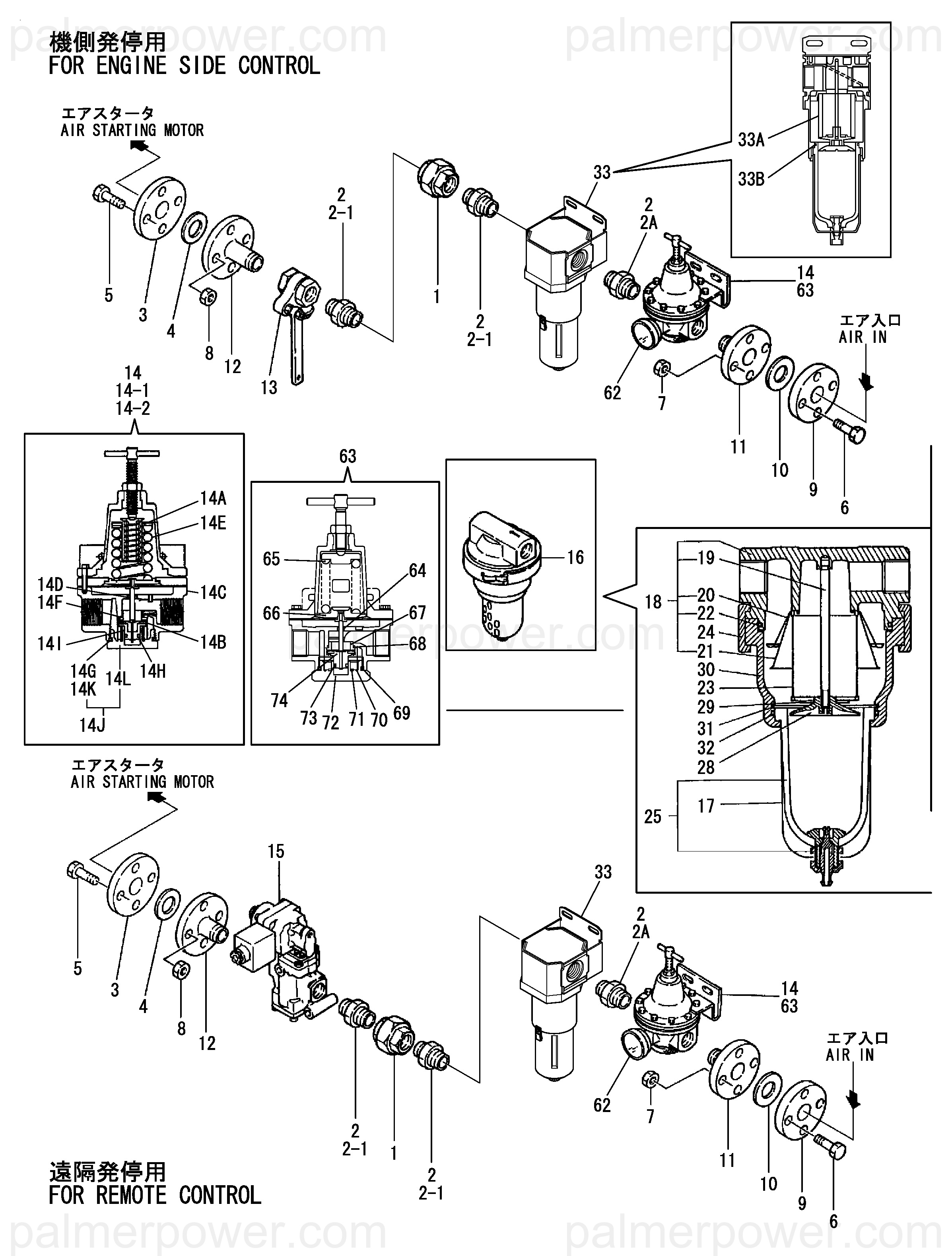

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 44100-554080 Spring

Schematic Object Key : 14E

Product Description : SPRING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 UNION, R1 23152-100000
2 NIPPLE, R1 23163-100000
2-1 NIPPLE, R1 23163-100000
2A NIPPLE, LONG 25A 43711-572250
3 FLANGE, 10K 25 23231-025034
4 GASKET, 10K25X0.5 23454-025000
5 BOLT, M16X 50 PLATED 26116-160502
6 BOLT, M16X 60 PLATED 26116-160602
7 NUT, M16 26716-160002
8 NUT, M16 26716-160002
9 FLANGE, ROUND 25A 43311-000440
10 PACKING 43416-035670
11 JOINT, AIR INLET 43711-556700
12 JOINT, AIR OUTLET 43711-557800
13 VALVE, QUICK 44100-002790
14 VALVE ASSY, REDUCING 44100-555540
14-1 VALVE, REDUCING 44100-555541
14-2 VALVE, REDUCING 44100-555541
14A SPRING 44100-554070
14B VALVE ASSY 44100-555570
14C DIAPHRAGM ASSY 44100-554420
14D O-RING 44100-555290
14E SPRING 44100-554080
14F O-RING 44100-555300
14G O-RING 44100-555320
14H O-RING 44100-555340
14I SPRING, VALVE 44100-554090
14J PLUG GUIDE ASSY 44100-555830
14K O-RING 44100-555320
14L PLUG,VALVE GUIDE 44100-555820
15 VALVE, SOLENOID 46116-552601
16 FILTER 44100-550410
17 GUARD XNAF610X25
18 BODY XNAF610X8
19 ROD XNAF610X9
20 LOUVER XNAF610X10
21 DEFLECTOR XNAF610X11
22 O-RING, WG19 XNAF610X2
23 ELEMENT, FILTER XNAF610X3
24 RING XNAF610X5
25 BALL XNAF610X6
28 DISK XNAF610X13
29 BODY XNAF610X20
30 RETAINER XNAF610X21
31 O-RING, WG13 XNAF610X22
32 GASKET XNAF610X23
33 AIR FILTER 44100-019880
33A ELEMENT, AIR FILTER 44100-019910
33B O-RING, AIR FILTER 44100-019920
34 FLANGE, 10K 25 23231-025034
35 GASKET, 10K25X0.5 23454-025000
36 BOLT, M16X 50 PLATED 26116-160502
37 NUT, M16 26716-160002
38 JOINT, AIR OUTLET 43711-557800
39 VALVE, QUICK 44100-002790
40 VALVE, GLOBE 40K25F 23573-400250
41 BOLT, M16X 65 PLATED 26116-160652
42 NUT, M16 26716-160002
43 FLANGE, ROUND 43310-001650
44 PACKING 43416-040770
45 FLANGE, 10K 25 23231-025034
46 GASKET, 10K25X0.5 23454-025000
47 VALVE, BC 10K-25 23514-100250
48 BOLT, M16X 50 PLATED 26116-160502
49 NUT, M16 26716-160002
50 FLANGE, 10K 25 23231-025034
51 GASKET, 10K25X0.5 23454-025000
52 BOLT, M16X 45 PLATED 26116-160452
53 NUT, M16 26716-160002
54 FLANGE, 10K 25A 43310-550740
55 HOSE ASSY, R1XL425 43720-557240
56 PIPE, FLEXIBLE L=425 43720-555880
57 WASHER, 16 22137-160000
58 WASHER, SPRING 16 22217-160000
59 NIPPLE, 1X150 23751-101507
60 SOCKET PT 1 23131-100000
61 NIPPLE, 1X65 23751-100657
62 GAUGE, PRESSURE 42130-552361
63 VALVE, REDUCING 44100-555542
63-1 VALVE ASSY, DECOMP 44100-555543
64 O-RING 44100-555290
64-1 O-RING,P5 44100-555990
65 SPRING, CONTROL 44100-555850
66 DIAPHRAGM ASSY 44100-555860
67 SEAT, VALVE 44100-555880
68 O-RING 44100-555890
69 O-RING, P48 44100-555900
70 STRAINER 44100-555910
71 SPRING, VALVE 44100-555920
72 PLUG 44100-555930
73 O-RING 44100-555940
74 VALVE ASSY 44100-555950
