YANMAR 46111-563570 Switch, Temperature

Write a Review
$1,033.91
SKU:
46111-563570
Schematic Object Key:
5

YANMAR 46111-563570 Switch, Temperature

$1,033.91

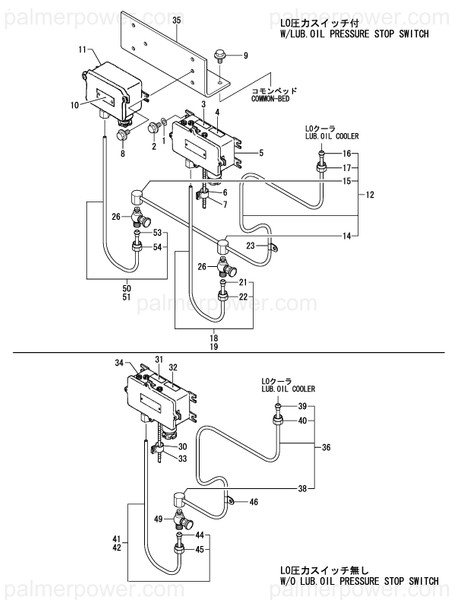

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 46111-563570 Switch, Temperature

Schematic Object Key : 5

Product Description : SWITCH, TEMPERATURE 46111-563570

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 WASHER, 8 22137-080000
2 BOLT, M8X 16 PLATED 26106-080162
3 LABEL, OIL ALARM 42221-551260
4 LABEL, WATER ALARM 42221-551280
5 SWITCH, TEMPERATURE 46111-563570
6 RUBBER, CUSHION 41411-000321
7 FITTING, CLAMP 43739-000170
8 BOLT, M8X 16 PLATED 26106-080162
9 BOLT, M8X 16 PLATED 26106-080162
10 LABEL, STOP OIL 42221-551270
11 SWITCH, PRESSURE 46111-563740
12 JOINT, SWITCH 126443-65112
14 JOINT, 3-WAY 43580-000530
15 JOINT, 2-WAY 43580-550900
16 JOINT, 6 23311-060001
17 NUT, CAP 6 23821-060001
18 JOINT,SWITCH 126443-65121
19 JOINT,SWITCH 43711-573060
21 JOINT, 6 23311-060001
22 NUT, CAP 6 23821-060001
23 CLAMP, A6X 8 23297-060081
24 SHIM, T=0.25 43400-550320
25 SHIM, T=0.5 43400-550330
26 VALVE, NEEDLE 43600-006951
27 PIPE, 6X1.2 23041-060000
28 JOINT, 6 23311-060001
29 NUT, CAP 6 23824-060001
30 RUBBER, CUSHION 41411-000321
31 LABEL, STOP OIL 42221-551270
32 LABEL, SWITCH 42221-551290
33 FITTING, CLAMP 43739-000170
34 SWITCH, TEMPERATURE 46111-563610
35 BRACKET 46150-573710
36 JOINT, SWITCH 126443-65102
38 JOINT, 2-WAY 43580-550900
39 JOINT, 6 23311-060001
40 NUT, CAP 6 23821-060001
41 JOINT,SWITCH 126443-65121
42 JOINT,SWITCH 43711-573060
44 JOINT, 6 23311-060001
45 NUT, CAP 6 23821-060001
46 CLAMP, A6X 8 23297-060081
47 SHIM, T=0.25 43400-550320
48 SHIM, T=0.5 43400-550330
49 VALVE, NEEDLE 43600-006951
50 JOINT, SWITCH 126443-65132
51 JOINT, SWITCH 43711-573070
53 JOINT, 6 23311-060001
54 NUT, CAP 6 23821-060001
55 RETAINER 135410-39520
56 RETAINER 135410-39520
