YANMAR 46130-561830 Motor Assy, Governor

Write a Review
$2,566.61
SKU:
46130-561830
Schematic Object Key:
62A-1

YANMAR 46130-561830 Motor Assy, Governor

$2,566.61

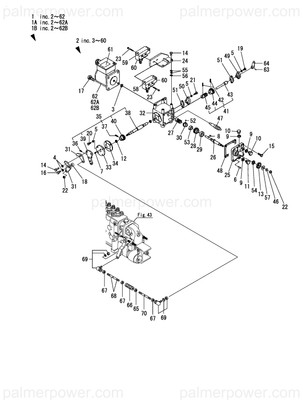

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 46130-561830 Motor Assy, Governor

Schematic Object Key : 62A-1

Product Description : MOTOR ASSY, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CASE ASSY 46130-503750
1-1 MOTOR ASSY, GOVERNOR 46130-503751
1A CASE ASSY 46130-503720
1A-1 MOTOR ASSY, GOVERNOR 46130-503721
1B CASE ASSY 46130-503730
1B-1 CASE ASSY 46130-503731
2 CASE ASSY, GEAR 46130-503740
3 SEAL, OIL VC 123325-61670
4 WASHER, 6 22137-060000
5 WASHER, SPRING 5 22217-050000
6 PIN, PARALLEL M4X16 22312-040160
7 PIN, SPRING 4.0X16 22351-040016
8 KEY, WOODRUFF 3X10 22522-030100
9 GASKET, 10X1.0 23414-100000
10 PLUG, 10 23887-100002
11 PLUG, AIR VENT 41100-550801
12 O-RING, 1AP8.0 24311-000080
13 HANDLE, VALVE 153623-15340
14 BOLT, M6X 14 PLATED 26106-060142
15 BOLT, M6X 20 PLATED 26106-060202
16 BOLT, M6X 18 PLATED 26106-060182
17 BOLT, M8X 18 PLATED 26106-080182
18 SPACER, SWITCH 41100-551310
19 BOLT, M5X 12 PLATED 26116-050122
20 BOLT, M5X 12 PLATED 26116-050122
21 BOLT, M5X 12 PLATED 26116-050122
22 NUT, M6 26366-060002
23 SCREW, M4X30 26557-040302
24 BRACKET, SWITCH 41100-550340
25 COVER, GEAR CASE 41100-550421
26 SHAFT, HANDLE 41100-550431
27 GEAR, WORM 41100-550440
28 WHEEL, WORM 41100-550450
29 SPACER 41100-550460
30 RETAINER, SPRING 41100-550470
31 LEVER, LIMIT SWITCH 41100-550671
32 CASE, GEAR 41100-550770
33 BEARING, SHAFT 41100-550781
34 PACKING 41100-550811
35 SHAFT ASSY, OUTPUT 41100-550871
36 PIN, SPRING 3.0X18 22351-030018
37 PIN, SPRING 3.0X20 22351-030020
38 SHAFT 41100-550642
39 LEVER, CONTROL 41100-550652
40 WHEEL, WORM 41100-550950
41 SHAFT ASSY, MIDDLE 41100-550930
42 PIN, SPRING 3.0X20 22351-030020
43 SHAFT, 2ND 41100-550151
44 WHEEL, WORM 41100-550890
45 GEAR, WORM 41100-550910
46 WASHER, 6 22137-060000
47 SHAFT, INPUT 41100-551100
48 GASKET 41100-800042
49 BEARING, A 41100-800111
50 BEARING, B 41100-800122
51 GASKET 41100-800132
52 BALL, STEEL 41112-000140
53 SPRING, PLATE 41112-000750
54 SEAL, OIL 41112-000880
55 SHIM, PUMP 0.5 42212-551050
56 SHIM, PUMP 1.0 42212-551060
57 LABEL 42221-554420
58 LABEL, UPPER 42221-552090
59 LABEL, LOWER 42221-552100
60 SWITCH, LIMIT 46130-800250
61 LABEL,GOVERNOR MOTOR 42221-552170
62 MOTOR ASSY, GOVERNOR 46130-552260
62-1 MOTOR ASSY, GOVERNOR 46130-561820
62A MOTOR ASSY, GOVERNOR 46130-552270
62A-1 MOTOR ASSY, GOVERNOR 46130-561830
62B MOTOR ASSY, GOVERNOR 46130-552280
62B-1 MOTOR ASSY, GOVERNOR 46130-561840
63 PIN, SPRING 3.0X16 22351-030016
64 LEVER, CONTROL B 41100-550662
65 NUT, HEXAGON M5 L 41100-550530
66 SCREW, LINK 41100-550500
67 NUT, LOCK M5 26756-050002
68 RING 41100-550700
69 JOINT, BALL 41710-001300
70 SCREW, LINK 41100-550510
