YANMAR 719175-51300 Pump Assy, Injection

Write a Review
$3,996.52
SKU:
719175-51300
Schematic Object Key:
2

YANMAR 719175-51300 Pump Assy, Injection

$3,996.52

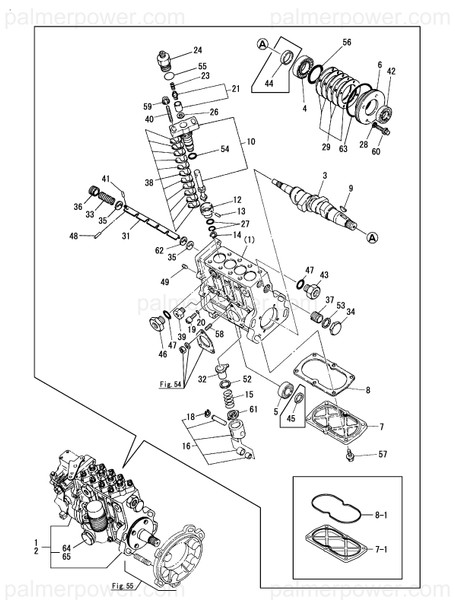

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 719175-51300 Pump Assy, Injection

Schematic Object Key : 2

Product Description : PUMP ASSY, INJECTION 719175-51300

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 PUMP ASSY, INJECTION 719175-51300
3A CAMSHAFT 119175-51030
4 BEARING, HR32005XJ 119000-51050
5 BEARING, HR30203J 122710-51050
6 SUPPORT, BEARING A 119000-51060
7-1 COVER 119100-51081
8-1 GASKET 119100-51091
9 KEY, 5X19 144626-51090
10A PLUNGER ASSY 119593-51100
12-1 PROTECTOR 119000-51151
13 PIN 119000-51430
14 RING, 20 22242-000200
15 SPRING, PLUNGER 119000-51161
16A TAPPET ASSY 119573-51200
18 CIRCLIP 119000-51250
19 STOPPER, TAPPET 129155-51270
19-1 STOPPER, TAPPET 158600-51270
20 O-RING, S6 129155-51280
21A VALVE ASSY, DELIVERY 119593-51300
23 SPRING, DELIVERY 119000-51330
24A VALVE ASSY, DELIVERY 119175-51340
26 GASKET 122710-51350
27 O-RING, S18 119000-51410
27-1 O-RING 119000-51411
28 WASHER, SEAL 6 22190-060000
29 SHIM SET, CAMSHAFT 119000-51450
31 RACK, CONTROL 119100-51500
31-1 RACK, CONTROL 119187-51500
32 SLEEVE, CONTROL 119000-51510
32-1 SLEEVE, CONTROL 119000-51511
33A SPRING, RACK 119593-51530
34 COVER 119000-51550
35 GUIDE, RACK 119000-51570
36 SCREW 119000-51580
37 SCREW 119000-51590
38 SHIM SET, ADJUSTING 119000-51650
39 BUSH 121850-51700
40 BOLT 119000-51800
41 PIN, SPRING 2.0X 8 22351-020008
42 SEAL, AC1290E0 119000-51900
43 PLUG 121952-51900
46A PLUG 121952-51900
47 O-RING, 1016 144626-51950
48 PIN, SPRING 2.0X12 22351-020012
49 SCREW, M6X6 137600-53900
52 SEAT, SPRING A 119000-51170
53 GASKET, 22X1.0 23414-220029
54 O-RING, 1AS26.0 24341-000260
54-1 O-RING, 4D S26 158563-51662
55 O-RING 24352-010160
55-1 O-RING, 4D19016 24356-190160
55-2 O-RING, 4D19015 24356-190150
56 O-RING, 1AS50.0 24341-000500
57 BOLT, M6X 18 PLATED 26106-060182
58 STUD, M6X 16 26216-060162
58-1 STUD 129155-51020
59 NUT, M8 26366-080002
60 BOLT, M6X 20 PLATED 26106-060202
60-1 BOLT, M6X20 119175-51070
61 SEAT, SPRING B 119000-51181
62 WASHER 119593-51520
63 O-RING 124410-51960
65 PUMP ASSY, FUEL FEED 119593-52000

YANMAR 719175-51300 Pump Assy, Injection

PRODUCT NOTES

The YM-719175-51300 fuel injection pump can be used on the 4LH-STE Yanmar engine models. This is a genuine Yanmar part shipped with a 6-month warranty.
