YANMAR 719593-11701 Head Assy, Cylinder

Write a Review
$7,473.95
SKU:
719593-11701
Schematic Object Key:
1

YANMAR 719593-11701 Head Assy, Cylinder

$7,473.95

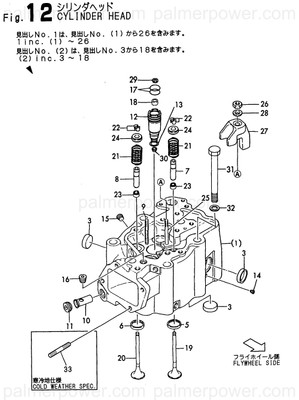

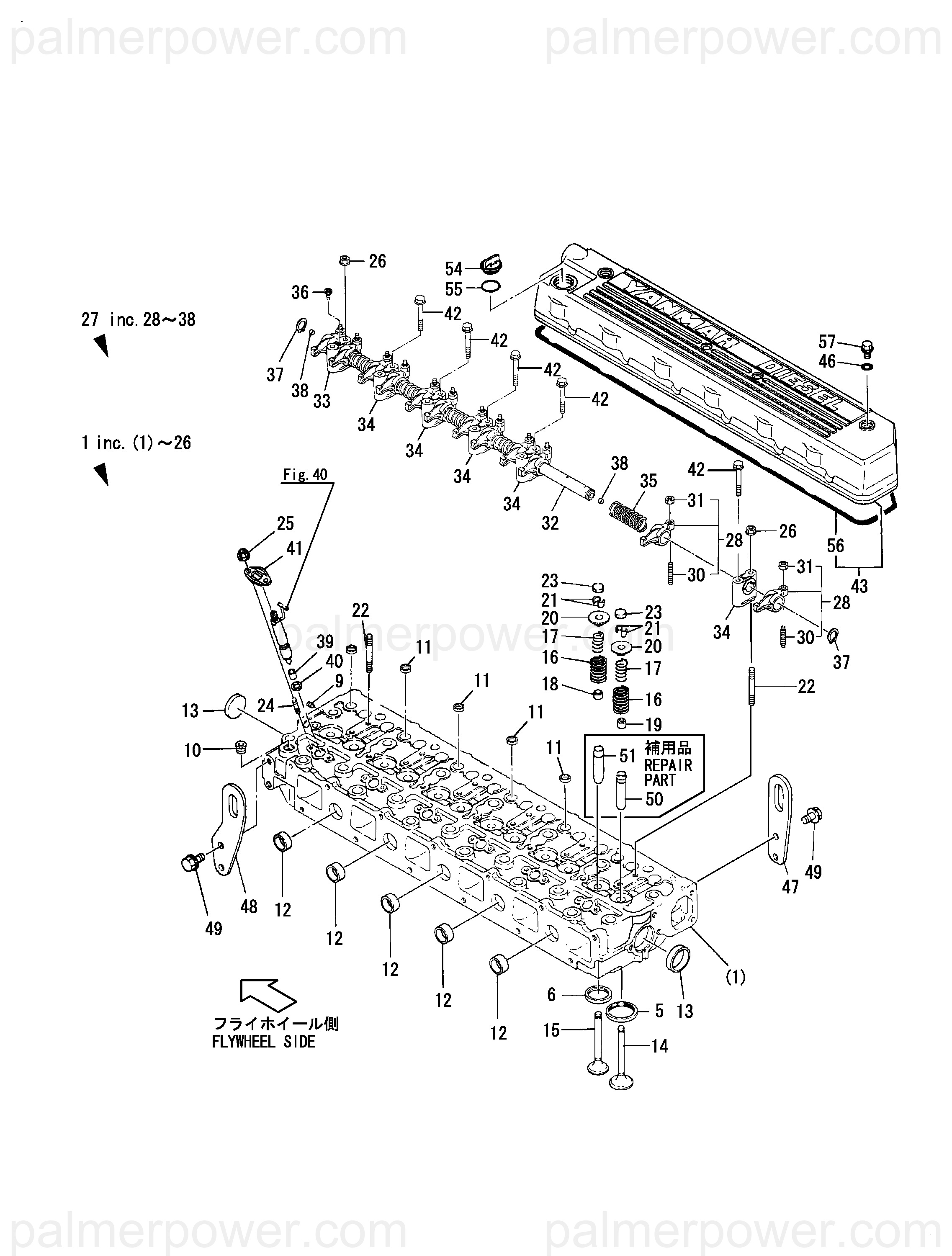

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 719593-11701 Head Assy, Cylinder

Schematic Object Key : 1

Product Description : HEAD ASSY, CYLINDER 719593-11701

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 719593-11701
5 SEAT, INTAKE VALVE 119173-11080
6 SEAT, VALVE 119173-11091
9 PLUG, R005 23876-005000
10 PLUG, R03 23875-030000
11 PLUG 119593-01860
12 PLUG, 28 27241-280000
13 PLUG, 40 27241-400000
14 VALVE, SUCTION 119173-11101
15 VALVE, EXHAUST 119593-11110
16 SPRING, VALVE OUTER 124617-11120
17 SPRING, VALVE INNER 124617-11130
18 SEAL, VALVE STEM 119171-11150
19 SEAL, VALVE STEM 121850-11150
20 RETAINER, SPRING 124411-11180
21 COTTER, 9 27310-090001
22 STUD, M8X80 119593-11301
23 CAP, VALVE 119171-11370
24 BOLT 119593-11911
25 NUT, M6 26366-060002
26 NUT, M8 26306-080002
27 SHAFT ASSY, ROCKER 119593-11240
28 ARM ASSY, ROCKER 719593-11650
30 SCREW, VALVE ADJUST 119000-11230
31 NUT, M8 129150-11750
32 SHAFT, ROCKER ARM 119593-11250
33 SUPPORT, ROCKER ARM 119000-11260
34 SUPPORT, ROCKER ARM 119000-11270
35 SPRING 119000-11280
36 BOLT 119000-11290
37 RING, 18 22242-000180
38 PLUG, 10 27241-100000
39 INSULATOR 119593-11870
40 SEAT, VALVE 119593-11880
41 RETAINER, NOZZLE 119625-11900
42 BOLT, M8X 65 PLATED 26106-080652
43 BONNET ASSY, HEAD 119593-11310
46 O-RING, 1AP12.0 24311-000120
47 LIFTER,ENGINE 119593-07220
48 LIFTER 119593-07210
49 BOLT, M10X 20 PLATED 26106-100202
50 GUIDE, VALVE 121850-11800
51 GUIDE, VALVE 119000-11180
52 COVER, FILLER 124160-01751
54 COVER, FILLER 124160-01751
55 O-RING, 1AP32.0 24311-000320
56 GASKET, BONNET 119593-11380
57 KNOB 124160-11360
