YANMAR 720146-44430 Cover Assy, Cooler - Palmer Power
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

YANMAR 720146-44430 Cover Assy, Cooler

Write a Review
$360.36
SKU:
720146-44430
Schematic Object Key:
28

YANMAR 720146-44430 Cover Assy, Cooler

$360.36

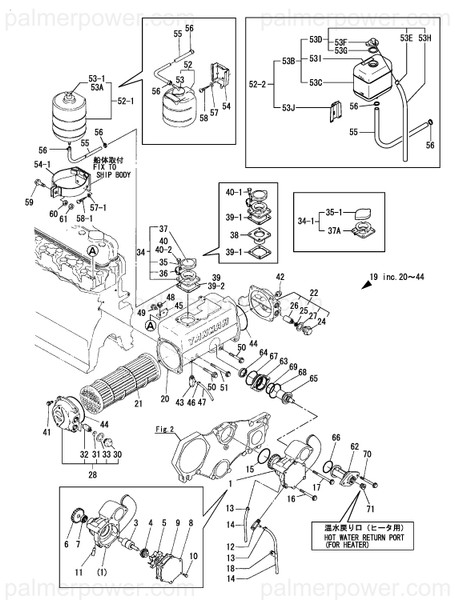

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 720146-44430 Cover Assy, Cooler

Schematic Object Key : 28

Product Description : COVER ASSY, COOLER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 120130-43100
3 BEARING 120130-43120
4 SEAL, MECHANICAL 120130-43130
5 IMPELLER 120130-43140
6 GEAR 120130-43150
7 SEAL, OIL 120130-43160
7-1 SEAL, OIL 120130-43161
8 COVER, PUMP 120130-43170
9 GASKET 120130-43180
9-1 GASKET 121970-42050
10 BOLT 120130-43190
11 UNION 120130-43200
12 COCK, 1/4 120130-49350
12-1 COCK ASSY, 1/4 119620-49290
13 RETAINER 124460-77680
14 PIPE, 7X 300 23061-070300
15 O-RING, 1AG60.0 24321-000600
16 BOLT, M8X 75 PLATED 26106-080752
17 BOLT, M8X100 PLATED 26106-081002
18 RETAINER 124223-39900
19 CORE ASSY, COOLER 720142-44500
20 BODY, COOLER 120142-44010
21 CORE ASSY, COOLER 120142-44110
22 COVER ASSY 720142-44420
24 PLUG 122780-09320
25 GASKET 122510-33330
25-1 GASKET 123210-09310
26 ZINC, SCREW20X30 27210-200300
27 GASKET, 25X1.0 23414-250000
28 COVER ASSY, COOLER 720146-44430
30 PLUG 122780-09320
31 GASKET 122510-33330
31-1 GASKET 123210-09310
32 ZINC, SCREW20X30 27210-200300
33 GASKET, 25X1.0 23414-250000
34 FILLER ASSY 120445-44600
34-1 FILLER ASSY 129171-44600
35 CAP, RADIATOR 123682-44210
35-1 CAP, RADIATOR 129107-44590
36 CHAIN 123682-44220
37 LABEL, CAUTION 120445-44620
37A FILLER ASSY 129171-44620
38 SPACER 120149-44910
38-1 SPACER 120149-44910
39 GASKET 120445-44640
39-1 GASKET 120445-44640
39-2 GASKET 120445-44640
40 BOLT, M8X 14 PLATED 26106-080142
40-1 BOLT, M8X 30 PLATED 26106-080302
40-2 BOLT, M8X 14 PLATED 26106-080142
41 BOLT, M8X 25 PLATED 26106-080252
42 BOLT, M8X 20 PLATED 26106-080202
43 COCK, 1/4 120130-49350
43-1 COCK ASSY, 1/4 119620-49290
44 O-RING, 1AP115.0 24311-001150
45 RETAINER 120130-44150
46 RETAINER 124460-77680
47 PIPE, 7X 300 23061-070300
48 BOLT, M8X 14 PLATED 26106-080142
49 BOLT, M8X 18 PLATED 26106-080182
50 BOLT, M8X 65 PLATED 26106-080652
51 BOLT, M8X 95 PLATED 26106-080952
52 TANK, SUB 120445-44530
52-1 TANK, SUB 148616-44510
52-2 TANK ASSY, SUB 120147-44800
53 CAP 120445-00010-H
53-1 CAP 121850-44850
53-2 CAP 121850-44850
53A GASKET 121850-44860
53A-1 GASKET 121850-44860
53B TANK ASSY, RESERVE 121857-44800
53C TANK, RESERVE 121820-44810
53D CONDUCTION ASSY 121850-44820
53E CLAMP 121850-44880
53F CAP 121850-44850
53G GASKET 121850-44860
53H HOSE 121850-44870
53I LABEL, RESERVE TANK 121850-44830
53J BRACKET 120147-44810
54 SUPPORT 120445-44540
54-1 BRACKET 148616-44550
54-2 BRACKET 148616-44550
55 PIPE, WATER L=1000 124790-44560
56 BAND 124460-59050
56-1 CLAMP, 13 23000-013000
57 WASHER, 8 22113-080000
57-1 WASHER, 8 22113-080000
57-2 WASHER, 8 22113-080000
58 SCREW 8X45 22717-800450
58-1 SCREW 8X45 22717-800450
58-2 SCREW 8X45 22717-800450
59 BOLT, M10X 30 PLATED 26106-100302
59-1 BOLT, M10X 30 PLATED 26106-100302
60 NUT, M10 26706-100002
60-1 NUT, M10 26706-100002
61 NUT, LOCK M10 26756-100002
61-1 NUT, LOCK M10 26756-100002
62 COVER, THERMOSTAT 120130-48370
63 FLANGE 120130-48390
64 SEAL, OIL 120445-48570
65 THERMOSTAT, 71 120445-48610
66 O-RING, 1AG45.0 24321-000450
67 O-RING, 1AG50.0 24321-000500
68 O-RING, 1AG55.0 24321-000550
69 O-RING, 1AS40.0 24341-000400
70 BOLT, M8X 75 PLATED 26106-080752
71 PLUG, R03 23871-030000
71-1 PLUG, R03 23876-030000
