YANMAR 726650-01900 See 726650-01901-C

Write a Review
$1,069.37
SKU:
726650-01900
Schematic Object Key:
59

YANMAR 726650-01900 See 726650-01901-C

$1,069.37

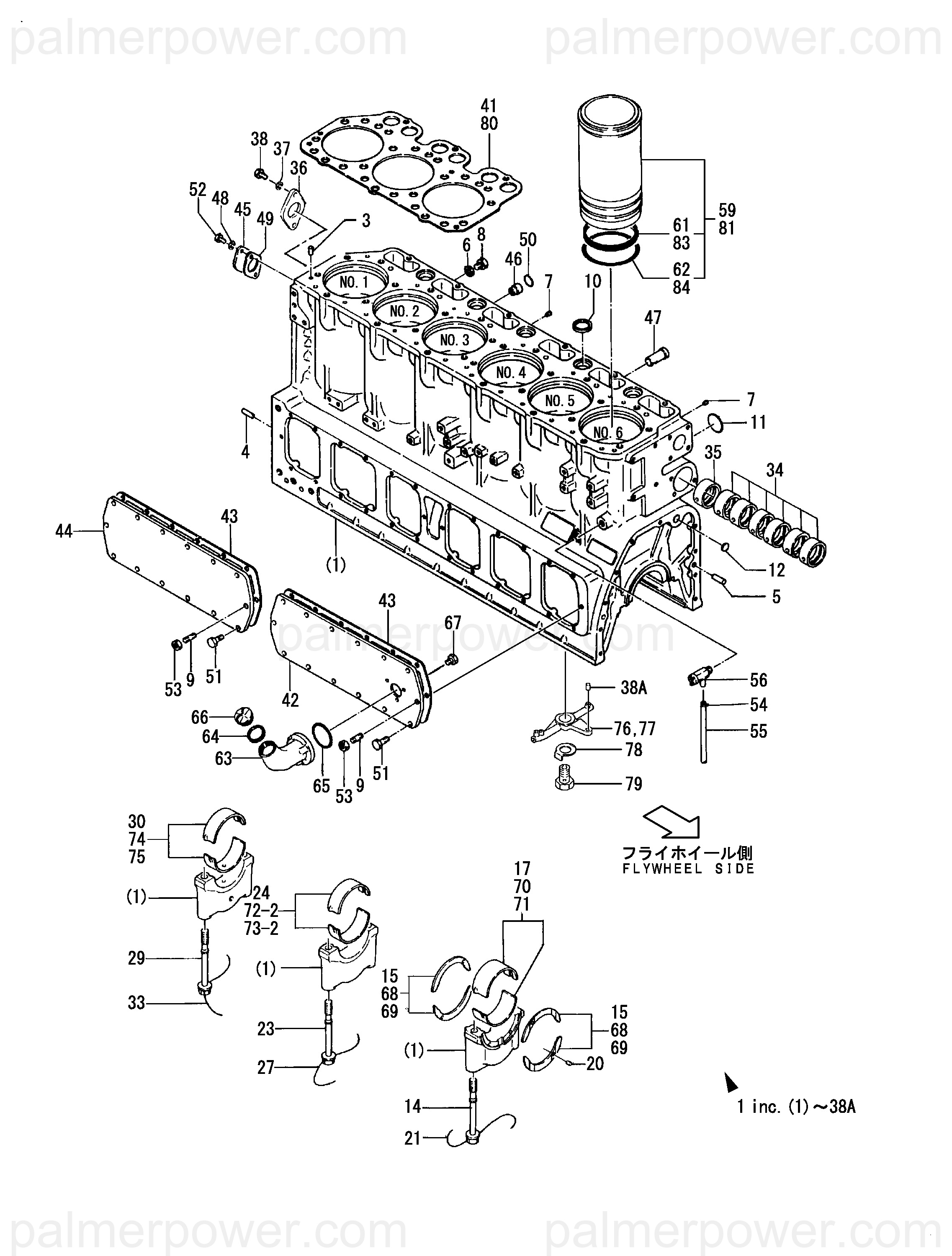

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 726650-01900 See 726650-01901-C

Schematic Object Key : 59

Product Description : LINER ASSY, CYLINDER 726650-01900

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 726650-01564
1-1 BLOCK ASSY, CYLINDER 726640-01560
3 PIN, PARALLEL M10X25 22312-100250
4 PIN, PARALLEL M10X32 22312-100320
5 PIN, PARALLEL M12X36 22312-120360
6 GASKET, 12X1.0 23414-120016
7 PLUG, R01 23871-010000
8 PLUG 23881-120002
8-1 PLUG, 12 23887-120002
9 STUD, M8X 16 26216-080162
10 PLUG 45 27231-450000
11 PLUG 50 27231-500000
12 PLUG, 22 27241-220000
14 BOLT 126640-02070
15 METAL,THRUST 126650-02190
17 MAIN METAL 126652-02240
17-1 MAIN METAL 126650-02240
20 PIN, PARALLEL M6X 8 22312-060080
21 WIRE, 2.0 22451-200000
23 BOLT 126640-02070
24 MAIN METAL 126634-02180
24-1 MAIN METAL(CENTER 126640-02180
27 WIRE, 2.0 22451-200000
29 BOLT 126640-02070
30 MAIN METAL 126652-02180
30-1 MAIN METAL 126650-02180
33 WIRE, 2.0 22451-200000
34 BUSH, CAMSHAFT 126650-02400
35 BUSH, CAMSHAFT 126650-02410
36 METAL, CAMSHAFT 126650-02420
37 WASHER, SPRING 10 22217-100000
38 BOLT, M10X 22 PLATED 26106-100222
38A PIN, PARALLEL M6X10 22312-060100
39 O-RING, 1AP41.0 24311-000410
40 SCREW M 6X 14 26551-060142
40-1 SCREW M 6X 14 26557-060142
41 GASKET, HEAD 126650-01330
41-1 GASKET, HEAD 126650-01331
41-2 GASKET, HEAD 126650-01334
42 COVER, SIDE A 126630-01400
43 GASKET, COVER 126650-01410
43-1 GASKET, COVER 126650-01411
44 COVER, BLOCK 126650-01420
45 COVER 126630-01580
46 CONNECTOR 123672-01850
47 PIPE 126650-01860
48 WASHER, SPRING 8 22217-080000
49 GASKET, 21X0.5 23424-210000
50 O-RING, 4DP29.0 24316-000290
51 BOLT, M8X 16 PLATED 26106-080162
52 BOLT, M8X 18 PLATED 26106-080182
53 NUT, M8 26366-080002
54 CLAMP, 17 23010-017000
55 PIPE, 12X 500 23061-120500
56 COCK 43600-500310
56-1 COCK ASSY, 3/8 43600-500311
59 LINER ASSY, CYLINDER 726650-01900
59-1 LINER ASSY, CYLINDER 726650-01901
61 GASKET, LINER 126650-01300
61-1 O-RING, LINER 126650-01301
62 GASKET, LINER 126650-01310
62-1 O-RING, LINER 126650-01311
63 FEEDER, OIL 128610-01660
64 GASKET 101704-01760
65 O-RING 2 G-70.0 24322-000700
66 CAP, FEEDER 105840-01750
66-1 CAP, OIL 39 24798-390000
67 BOLT, M8X 14 PLATED 26106-080142
68 METAL,THRUST 0.25 126650-02340
69 METAL,THRUST 0.5 126650-02350
70 MAIN METAL 0.25 126652-02320
70-1 MAIN METAL 0.25 126650-02320
71 MAIN METAL 0.5 126652-02330
71-1 METAL, MAIN 0.50 US 126650-02330
72-2 MAIN METAL 0.25 126634-02300
73-2 METAL ASSY, MAIN .50 726640-02780
73-3 METAL ASSY, MAIN .50 726640-02790
74 MAIN METAL 0.25 126652-02300
74-1 MAIN METAL U0.25 126650-02300
75 MAIN METAL 0.5 126652-02310
75-1 MAIN METAL U0.5 126650-02310
76 BODY, NOZZLE 126680-39330
78 WASHER 144626-39370
79 JOINT BOLT 10 23851-100000
80 GASKET, HEAD 526644-01331
81 LINER ASSY, CYLINDER 726644-01900
83 O-RING, LINER 126650-01301
84 O-RING, LINER 126650-01311
