YANMAR 727616-01940 Liner Assy, Cylinder

Write a Review
$1,412.88
SKU:
727616-01940
Schematic Object Key:
91

YANMAR 727616-01940 Liner Assy, Cylinder

$1,412.88

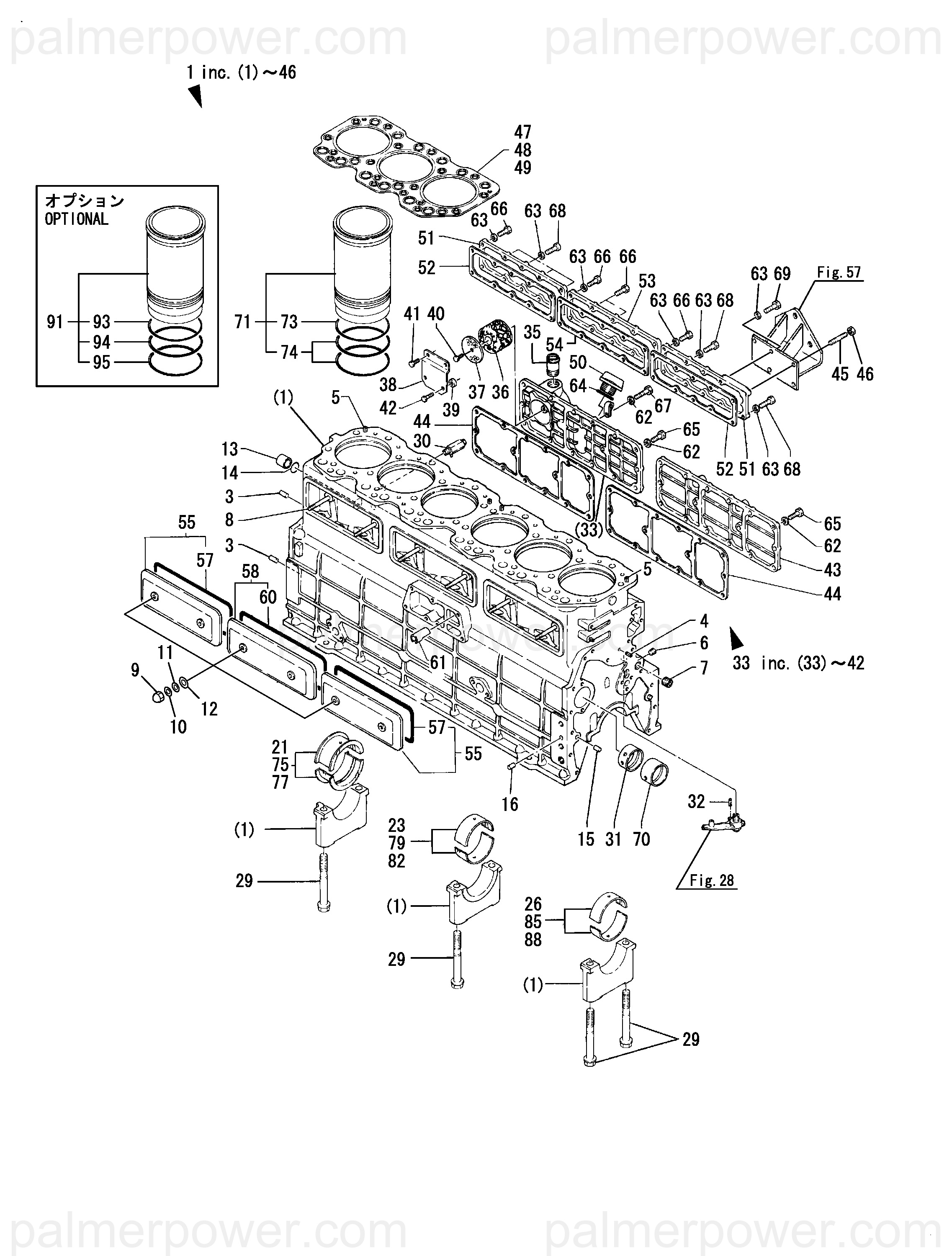

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 727616-01940 Liner Assy, Cylinder

Schematic Object Key : 91

Product Description : LINER ASSY, CYLINDER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 727610-01562
1-1 BLOCK ASSY, CYLINDER 727610-01563
3 PIN, PARALLEL M10X20 22312-100200
4 PIN, SPRING 6.0X16 22351-060016
5 PIN, SPRING 8.0X16 22351-080016
6 PLUG, R01 23876-010000
7 PLUG, R03 23876-030000
8 STUD M 8X60 26212-080602
8-1 STUD, M8X 55 26216-080552
9 NUT, CAP M8 26656-080002
9-1 NUT, CAP M8 26657-080002
10 SEAL WASHER 8S 43400-500410
10-1 WASHER, SEAL 8 22190-080003
11 WASHER, 8 22137-080000
12 WASHER, SEAL 10 22190-100003
13 PIPE 127610-01691
14 O-RING, 1AP24.0 24311-000240
15 PIN, PARALLEL M10X16 22312-100160
16 PIN, PARALLEL M10X16 22312-100160
21 METAL ASSY, MAIN 727687-02931
23 BEARING, MAIN 127610-02090
23-1 METAL, MAIN 127687-02091
26 BEARING, MAIN 127610-02120
26-1 METAL, MAIN 127687-02111
29 BOLT, METAL CAP 127610-02070
30 COCK ASSY, 1/4 119620-49290
31 BUSH, CAMSHAFT B 127610-02420
32 SPRING PIN 4X10 22353-040010
33 COVER ASSY, CYLINDER 727610-01502
35 JOINT, PIPE 127610-03220
36 WOOL, STEEL 127610-03050
37 OIL THROWER 127610-03060
38 PLATE, BREATHER 127610-03090
39 SPACER 127610-03150
39-1 SPACER 127610-03150
40 BOLT, M8X 14 PLATED 26106-080142
41 BOLT, M8X 16 PLATED 26106-080162
41-1 BOLT, M8X 16 PLATED 26106-080162
42 BOLT, M8X 22 PLATED 26106-080222
42-1 BOLT, M8X 22 PLATED 26106-080222
43 COVER, BLOCK 127610-01401
43-1 COVER, BLOCK SIDE A 127610-01402
44 GASKET 127610-01411
44-1 GASKET, SIDE COVER 127675-01410
45 STUD, M8X 40 26216-080402
46 NUT, M8 26306-080002
47 GASKET, HEAD T=1.5 127616-01331
47-1 GASKET, HEAD T=1.5 127616-01332
47-2 GASKET, HEAD T=1.5 127616-01333
48 GASKET, HEAD T=1.6 127616-01341
48-1 GASKET, HEAD T=1.6 127616-01342
48-2 GASKET, HEAD T=1.6 127616-01343
49 GASKET, HEAD T=1.4 127616-01351
49-1 GASKET, HEAD T=1.4 127616-01352
49-2 GASKET, HEAD T=1.4 127616-01353
50 COVER, FILLER 124160-01751
51 COVER, WATER A 127610-01751
52 GASKET 127610-01761
52-1 GASKET, COVER A 127675-01790
53 COVER, WATER B 127610-01770
54 GASKET 127610-01780
54-1 GASKET, COVER B 127675-01800
55 COVER ASSY 727610-01800
57 O-RING, A 127610-01841
58 COVER ASSY 727610-01810
60 O-RING, B 127610-01851
61 PIPE, CONNECTING 127610-01890
62 WASHER, 8 22117-080000
63 WASHER, 8 22137-080000
64 O-RING, 1AP32.0 24311-000320
65 BOLT, M8X 25 PLATED 26116-080252
65-1 BOLT, M8X 22 PLATED 26106-080222
66 BOLT, M8X 25 PLATED 26116-080252
66-1 BOLT, M8X 22 PLATED 26106-080222
67 BOLT, M8X 25 PLATED 26106-080252
68 BOLT, M8X 28 PLATED 26116-080282
68-1 BOLT, M8X 25 PLATED 26106-080252
69 BOLT, M8X 32 PLATED 26116-080322
69-1 BOLT, M8X 28 PLATED 26106-080282
70 BUSH, CAMSHAFT A 127610-02400
71 LINER ASSY, CYLINDER 727616-01900
73 GASKET, LINER 127616-01320
74 O-RING, 1AG105.0 24321-001050
75 BEARING, 0.25 US 127610-02840
75-1 METAL ASSY, MAIN .25 727687-02840
77 BEARING, 0.50 US 127610-02870
77-1 METAL ASSY, MAIN .50 727687-02870
79 BEARING, 0.25 US 127610-02850
79-1 METAL ASSY, MAIN .25 727687-02850
82 METAL, MAIN 0.50 US 127610-02880
82-1 METAL ASSY, 0.50 US 727687-02880
85 BEARING, 0.25 US 127610-02860
85-1 METAL ASSY, MAIN .25 727687-02860
88 METAL, MAIN 0.50 US 127610-02890
88-1 METAL ASSY, MAIN .50 727687-02890
91 LINER ASSY, CYLINDER 727616-01940
93 GASKET, LINER 127616-01320
94 O-RING, 1AG105.0 24321-001050
95 GASKET, LINER 127418-01310
