YANMAR 727689-01561 Block Assy, Cylinder

Write a Review
$11,006.30
SKU:
727689-01561
Schematic Object Key:
1-3

YANMAR 727689-01561 Block Assy, Cylinder

$11,006.30

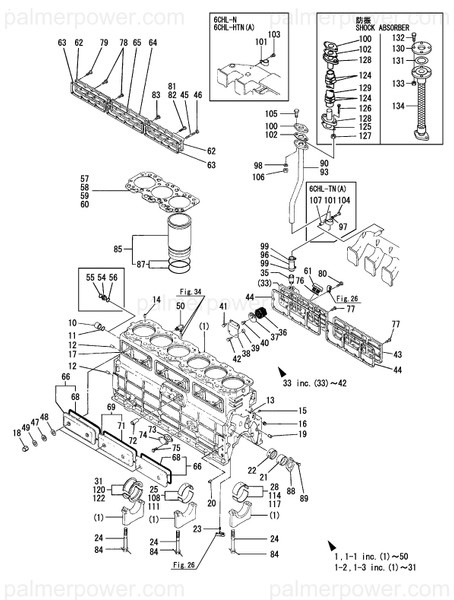

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 727689-01561 Block Assy, Cylinder

Schematic Object Key : 1-3

Product Description : BLOCK ASSY, CYLINDER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-1 BLOCK ASSY, CYLINDER 727610-01563
1-2 BLOCK ASSY, CYLINDER 727689-01560
1-3 BLOCK ASSY, CYLINDER 727689-01561
10 PIPE 127610-01691
11 O-RING, 1AP24.0 24311-000240
12 PIN, PARALLEL M10X20 22312-100200
13 PIN, SPRING 6.0X16 22351-060016
14 PIN, SPRING 8.0X16 22351-080016
15 PLUG, R01 23876-010000
16 PLUG, R03 23876-030000
17 STUD M 8X60 26212-080602
17-1 STUD, M8X 55 26216-080552
18 NUT, CAP M8 26656-080002
18-1 NUT, CAP M8 26657-080002
19 PIN, PARALLEL M10X16 22312-100160
20 PIN, PARALLEL M10X16 22312-100160
21 BUSH, CAMSHAFT A 127610-02400
22 BUSH, CAMSHAFT B 127610-02420
23 SPRING PIN 4X10 22353-040010
24-1 BOLT, METAL CAP 127450-02070
24-2 BOLT, METAL CAP 127610-02070
25 BEARING, MAIN 127610-02090
25-1 METAL, MAIN 127687-02091
28 BEARING, MAIN 127610-02120
28-1 METAL, MAIN 127687-02111
31 BEARING, MAIN 727610-02800
31-1 METAL ASSY, MAIN 727687-02931
33 COVER ASSY, CYLINDER 727610-01502
35 JOINT, PIPE 127610-03220
36 WOOL, STEEL 127610-03050
37 OIL THROWER 127610-03060
38 PLATE, BREATHER 127610-03090
39 SPACER 127610-03150
39-1 SPACER 127610-03150
40 BOLT, M8X 14 PLATED 26106-080142
41 BOLT, M8X 16 PLATED 26106-080162
41-1 BOLT, M8X 16 PLATED 26106-080162
42 BOLT, M8X 22 PLATED 26106-080222
42-1 BOLT, M8X 22 PLATED 26106-080222
43-1 COVER, BLOCK SIDE A 127610-01402
44 GASKET 127610-01411
44-1 GASKET, SIDE COVER 127675-01410
47 WASHER, 8 22137-080000
48 WASHER, SEAL 10 22190-100003
49 WASHER, SEAL 8 22190-080003
50 COCK 1/4 43600-500290
50-1 COCK ASSY, 1/4 119620-49290
57 GASKET, HEAD T=1.3 127610-01340
58 GASKET, HEAD T=1.5 127610-01351
58-1 GASKET, HEAD T=1.5 127610-01352
58-2 GASKET, HEAD T=1.5 127616-01333
59 GASKET, HEAD T=1.4 127610-01360
59-1 GASKET, HEAD T=1.4 127610-01361
59-2 GASKET, HEAD T=1.4 127616-01353
60 GASKET, HEAD T=1.6 127610-01371
60-1 GASKET, HEAD T=1.6 127610-01372
60-2 GASKET, HEAD T=1.6 127616-01343
61-1 COVER, FILLER 124160-01751
62 COVER, WATER A 127610-01751
63 GASKET 127610-01761
63-1 GASKET, COVER A 127675-01790
64 COVER, WATER B 127610-01770
65 GASKET 127610-01780
65-1 GASKET, COVER B 127675-01800
66 COVER ASSY 727610-01800
68 O-RING, A 127610-01841
69 COVER ASSY 727610-01810
71 O-RING, B 127610-01851
72 PIPE, CONNECTING 127610-01890
76 O-RING, 1AP32.0 24311-000320
77 BOLT, M8X 22 PLATED 26106-080222
78 BOLT, M8X 22 PLATED 26106-080222
79 BOLT, M8X 30 PLATED 26106-080302
80 BOLT, M8X 25 PLATED 26106-080252
82 BOLT, M8X 28 PLATED 26106-080282
83 BOLT, M8X 25 PLATED 26106-080252
84 WIRE, 1.6 22451-160000
84-1 WIRE, 1.6 22451-160000
85 LINER ASSY, CYLINDER 727610-01900
87 O-RING, 1AG105.0 24321-001050
88 PLATE, THRUST 127610-02160
89 BOLT, M8X 18 26013-080182
90 PIPE ASSY, BREATHER 127450-03240
96 PIPE, BREATHER 122780-03260
97 WASHER 8 22212-080000
98 WASHER, SPRING 12 22217-120000
99 CLAMP, 35 23000-035000
100 FLANGE, 28 23221-280000
101 CLAMP, A27X12 23297-250081
102 PACKING 31 23422-310000
104 BOLT, M8X 35 PLATED 26106-080352
105 BOLT, M12X 35 PLATED 26116-120352
106 NUT, M12 26716-120002
107 SPACER, SUPPORT 121400-44630
108 BEARING, 0.25 US 127610-02850
108-1 METAL ASSY, MAIN .25 727687-02850
111 METAL, MAIN 0.50 US 127610-02880
111-1 METAL ASSY, 0.50 US 727687-02880
114 BEARING, 0.25 US 127610-02860
114-1 METAL ASSY, MAIN .25 727687-02860
117 METAL, MAIN 0.50 US 127610-02890
117-1 METAL ASSY, MAIN .50 727687-02890
120 BEARING, 0.25 US 127610-02840
120-1 METAL ASSY, MAIN .25 727687-02840
122 BEARING, 0.50 US 127610-02870
122-1 METAL ASSY, MAIN .50 727687-02870
124 CLAMP, 48 23000-048000
125 PACKING 31 23422-310000
126 BOLT, M12X 35 PLATED 26116-120352
127 NUT, M12 26716-120002
128 JOINT 43560-551270
129 JOINT, RUBBER 43720-555020
130 FLANGE, 5K 20 23211-020027
131 PACKING 20 23433-020000
132 BOLT, M10X 30 PLATED 26106-100302
133 NUT, M10 26706-100002
134 TUBE, FLEXIBLE 43720-555980
