YANMAR 729497-11701 Head Assy, Cylinder

Write a Review
$3,719.37
SKU:
729497-11701

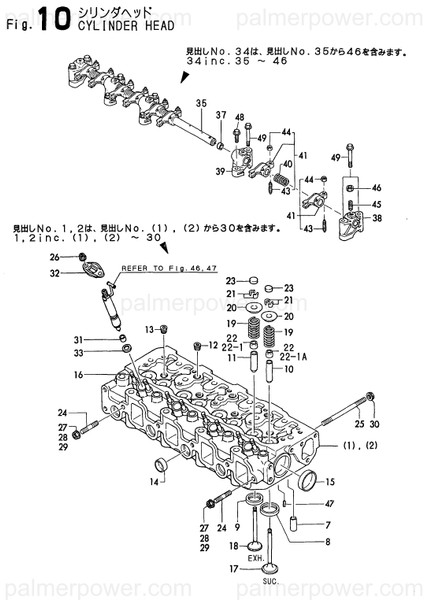

Schematic Object Key:
1

YANMAR 729497-11701 Head Assy, Cylinder

$3,719.37

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 729497-11701 Head Assy, Cylinder

Schematic Object Key : 1

Product Description : HEAD ASSY, CYLINDER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 729497-11701
7 PIECE 129150-11050
8 SEAT, INTAKE VALVE 129795-11080
9 SEAT, EXHAUST VALVE 129795-11090
10 GUIDE, VALVE 120130-11160
11 GUIDE, VALVE 129150-11170
12 PLUG, PT1/4 121850-11860
12-1 PLUG, R02 23871-020000
13 PLUG, R03 23873-030000
13-1 PLUG, R03 23871-030000
14 PLUG, 22 27241-220000
15 PLUG, 40 27241-400000
16 STUD, M6X 20 26216-060202
17 VALVE, INTAKE 129120-11100
18 VALVE, EXHAUST 129120-11110
19 SPRING, VALVE 129795-11120
20 RETAINER, SPRING 129795-11180
21 COTTER 103338-11190
21-1 COTTER 103338-11190
21-2 COTTER 8 27310-080000
22 SEAL, VALVE STEM 121400-11340
22-1 SEAL, VALVE STEM 121400-11340
22-1A SEAL, VALVE STEM 124460-11340
23 CAP, VALVE 129150-11370
24 STUD, M8X 22 26216-080222
25 STUD, M8X100 26216-081002
26 NUT, M6 26367-060002
28 NUT, M8 26366-080002
30 NUT, M8 26366-080002
31 PROTECTOR, NOZZLE 119625-11870
32 RETAINER, NOZZLE 119625-11900
33 SEAT, NOZZLE 119625-11880
34 SHAFT ASSY, ROCKER 129550-11240
34-1 SHAFT ASSY, ROCKER 129555-11241
35 SHAFT, ROCKER ARM 129550-11290
37 PLUG, 10 27241-100000
38 SUPPORT, ROCKER ARM 129150-11260
38-1 SUPPORT, ROCKER ARM 129155-11260
39 SUPPORT, ROCKER ARM 129150-11270
39-1 SUPPORT, ROCKER ARM 129155-11270
40 SPRING 129150-11280
41 ARM ASSY, ROCKER 729402-11650
43 SCREW, VALVE ADJUST 129150-11230
44 NUT, M8 129150-11750
45 STUD, M8X 18 26226-080182
46 NUT, LOCK M8 26756-080002
47 PIN, SPRING 6.0X12 22351-060012
48 BOLT, M8X 25 PLATED 26106-080252
49 BOLT, M8X 50 PLATED 26106-080502
