YANMAR 744626-51560 Roller Assy.

Write a Review
$56.91
SKU:
744626-51560
Schematic Object Key:
16

YANMAR 744626-51560 Roller Assy.

$56.91

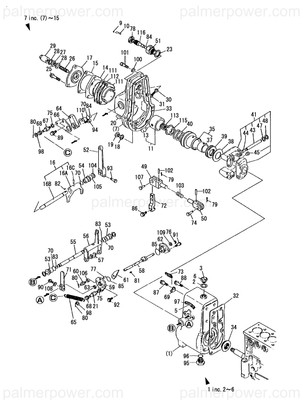

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 744626-51560 Roller Assy.

Schematic Object Key : 16

Product Description : ROLLER ASSY.

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 726616-51300
1-1 PUMP ASSY, INJECTION 726616-51302
3 CAMSHAFT 126616-51030
4 BEARING 144626-51050
5 SUPPORT, CAMSHAFT A 144626-51060
6 SUPPORT, CAMSHAFT B 144626-51070
7 KEY, 5X19 144626-51090
8 PLUNGER ASSY 748616-51600
10A O-RING 144626-51360
10A-1 O-RING, 4D2026 24356-020260
10B O-RING, S34 144626-51420
11 SPRING, PLUNGER 148616-51160
12 RETAINER, SPRING A 144626-51171
13 RETAINER, SPRING B 144626-51181
14 STOPPER 144626-51191
15 TAPPET ASSY 144626-51200
16 ROLLER ASSY. 744626-51560
16B BUSH 144626-51210
17 ROLLER, TAPPET 144626-51220
18 PIN, ROLLER 144626-51230
20 STOPPER 144626-51271
21 O-RING, P9 144626-51281
22 O-RING, P6 144626-51290
23 VALVE ASSY, DELIVERY 148616-51301
26 SPRING, DELIV. VALVE 135210-51330
27 HOLDER, DELIVERY 144626-51340
28 PACKING 135210-51351
29 O-RING 144626-51360
30-2 STOPPER, VALVE 145613-51360
31 SUPPORT ASSY, BARREL 148616-51390
33 PIN 144626-51410
34 O-RING, S34 144626-51420
35 DEFLECTOR 148616-51420
35-1 DEFLECTOR 148616-51421
36 PIN 144626-51430
37 SHIM SET, CAMSHAFT 144626-51451
38 RACK 126616-51500
39 PINION 144626-51511
40 SCREW 144626-51521
41 SPRING 135410-51530
42 CIRCLIP 144626-51540
43 BUSH, RACK 144626-51580
44 SCREW 144626-51590
45 SCREW 144626-51600
46 NUT, CAP 144626-51641
47 O-RING 144626-51660
48 PLUG 144626-51670
49 O-RING 144626-51680
50 WASHER, SEAL 144626-51700
51 WASHER, SEAL 144626-51710
51-1 SEAL WASHER 12S 43400-500450
52 WASHER, SEAL 144626-51720
52-1 SEAL WASHER 16 43400-500500
53 PLUG 144626-51730
54 SHIM SET, ADJUSTING 144626-51751
55 BOLT 144626-51800
56 WASHER 144626-51811
57 PROTECTOR, SPILL 144626-51830
58 O-RING, S71 144626-51840
59-1 BEARING 144626-51850
60 PROTECTOR, SPILL 148616-51860
61 GASKET 144626-51871
62 POINTER 145647-51880
63 BOLT 122780-51900
64 LABEL 126616-51910
65 NUT, M14 135410-51910
65-1 NUT, M14 26601-140002
66 LABEL 126616-51920
67-1 LABEL 126616-51950
68 LABEL 144626-51930
69 PLUG 144626-51940
70 O-RING, 1016 144626-51950
71 WASHER, SEAL M18 144626-51960
72 SPACER, CAMSHAFT 140623-61500
73 WASHER, SPRING 10 22217-100000
74 WASHER, SPRING 14 22217-140000
75 WASHER, 8 22287-080000
76 KEY, 7X 22 22512-070222
77 RIVET, 2.3X 3 22621-230030
77-1 RIVET 124220-51890
78 GASKET, 6X1.0 23418-060000
79 PLUG, 12 23887-120002
79-1 PLUG 23881-120002
80 PLUG 23881-160002
81 SEAL, OIL TC254008 24421-254008
82 BOLT, M6X 12 PLATED 26106-060122
83 STUD, M6X 12 26226-060122
84 BOLT, M6X 16 26450-060162
85 SCREW, M8X20 26557-080202
86 NUT, M10 26606-100002
87 NUT, M6 26716-060002
89 NaN *REF.139=ALL
90 NaN *REF.143=ALL
96 NaN *REF.145=ALL
