YANMAR 748017-51310 Pump Assy, Injection

Write a Review
$8,155.51
SKU:
748017-51310
Schematic Object Key:
2

YANMAR 748017-51310 Pump Assy, Injection

$8,155.51

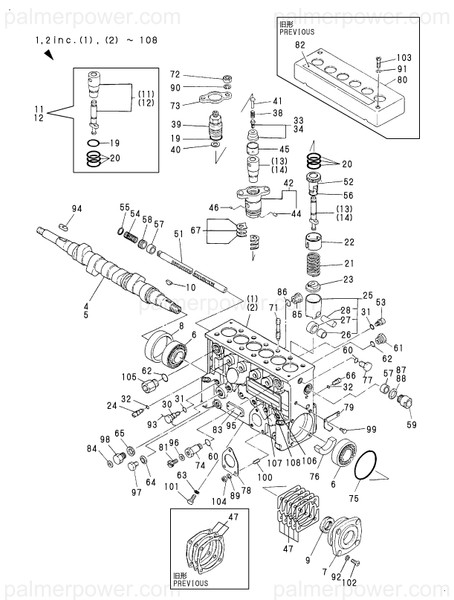

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 748017-51310 Pump Assy, Injection

Schematic Object Key : 2

Product Description : PUMP ASSY, INJECTION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 PUMP ASSY, INJECTION 748017-51310
2-1 PUMP ASSY, INJECTION 748017-51311
2-2 PUMP ASSY, INJECTION 748006-51340
5 CAMSHAFT 148017-51040
6 BEARING 144626-51050
7 SUPPORT, CAMSHAFT A 144626-51060
8 SUPPORT, CAMSHAFT B 144626-51070
9 SEAL, OIL TC254008 24421-254008
10 KEY, 5X19 144626-51090
12 PLUNGER ASSY 748687-51600
19 O-RING 144626-51360
20 O-RING, S34 144626-51420
21 SPRING, PLUNGER 148616-51160
22 RETAINER, SPRING A 144626-51171
23 RETAINER, SPRING B 144626-51181
24 STOPPER 144626-51191
25 TAPPET ASSY 144626-51200
26 BUSH 144626-51210
27 ROLLER, TAPPET 144626-51220
28 PIN, ROLLER 144626-51230
30 STOPPER 144626-51271
31 O-RING, 1AP9.0 24311-000090
31-1 O-RING, P9 144626-51281
32 O-RING, 1AP6.0 24311-000060
32-1 O-RING, P6 144626-51290
34 VALVE ASSY, DELIVERY 148816-51300
34-1 VALVE ASSY, DELIVERY 148606-51300
38 SPRING, DELIV. VALVE 135210-51330
39 HOLDER, DELIVERY 144626-51340
40 PACKING 135210-51351
41 STOPPER, VALVE 145613-51360
42 SUPPORT ASSY, BARREL 148616-51390
44 PIN 144626-51410
45 DEFLECTOR 148616-51420
45-1 DEFLECTOR 148616-51421
46 PIN 144626-51430
47 SHIM SET, CAMSHAFT 144626-51451
51 RACK, CONTROL 148016-51510
52 PINION 144626-51511
53 SCREW 144626-51521
54 SPRING 135410-51530
55 WASHER 135410-51540
56 CIRCLIP 144626-51540
57 BUSH, RACK 144626-51580
58 SCREW 144626-51600
59 JOINT 148016-51600
60 O-RING 144626-51660
61 PLUG 144626-51670
62 O-RING 144626-51680
63 WASHER, SEAL 144626-51700
64 WASHER, SEAL 144626-51710
64-1 SEAL WASHER 12S 43400-500450
64-2 WASHER, SEAL 12 22190-120002
65 WASHER, SEAL 144626-51720
65-1 WASHER, SEAL 16 22190-160002
66 PLUG 144626-51730
67 SHIM SET, ADJUSTING 144626-51751
71 BOLT 144626-51800
72 NUT, M10 26606-100002
73 WASHER 144626-51811
74 PROTECTOR, SPILL 144626-51830
75 O-RING, S71 144626-51840
76 BEARING 148616-51850
76-1 BEARING 126617-51850
76-2 BEARING 144626-51850
77 PROTECTOR, SPILL 148616-51860
78 GASKET 144626-51871
78-1 GASKET 124410-51861
79 POINTER 144626-51880
80 COVER 144626-51890
81 BOLT 122780-51900
82 LABEL 144626-51911
83 LABEL 140623-51920
84 LABEL 144626-51930
85 PLUG 144626-51940
86 O-RING, 1016 144626-51950
87 SEAL WASHER 18 43400-500520
87-1 WASHER, SEAL M18 144626-51960
87-2 WASHER, SEAL 18 22190-180002
88 GASKET 137600-53090
89 WASHER, SPRING 6 22217-060000
90 WASHER, SPRING 10 22217-100000
91 WASHER, SPRING 6 22234-060000
92 WASHER, 8 22287-080000
93 WIRE, 0.6 22451-060000
93-1 WIRE, 1.0 120325-61100
93-2 WIRE, 0.8 22454-080000
94 KEY, 7X 22 22512-070222
95 RIVET, 2.3X 3 22621-230030
95-1 RIVET 124220-51890
96 GASKET, 6X1.0 23418-060000
97 PLUG, 12 23887-120002
98 PLUG, 16 23887-160002
99 BOLT M 6X 14 PLATED 26117-060142
99-1 BOLT, M6X 12 PLATED 26106-060122
100 STUD, M6X 12 26226-060122
100-1 STUD, M6X 16 26226-060162
101 BOLT, M6X 16 26450-060162
101-1 BOLT 148688-51840
102 SCREW, M8X20 26557-080202
103 SCREW, M6X45 26577-060452
104 NUT, M6 26716-060002
105 PLUG 148616-51670
105-1 PLUG 148616-51671
106 RIVET 102210-07990
107 LABEL 126616-51920
108 LABEL 144626-51911
