YANMAR 748218-51320 Pump Assy, Injection

Write a Review
$39,609.69
SKU:
748218-51320

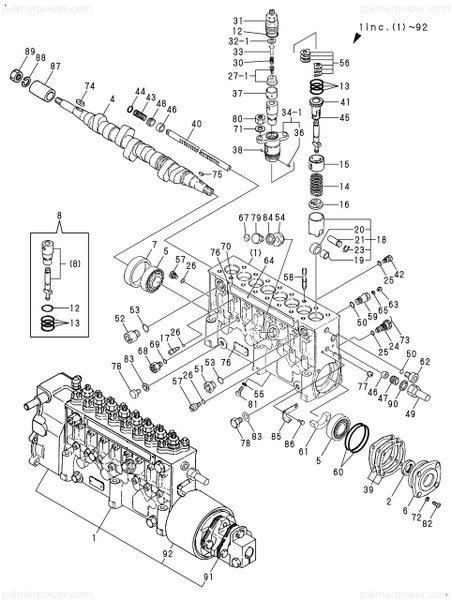

Schematic Object Key:
1

YANMAR 748218-51320 Pump Assy, Injection

$39,609.69

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 748218-51320 Pump Assy, Injection

Schematic Object Key : 1

Product Description : PUMP ASSY, INJECTION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 748218-51320
2 OIL SEAL TC304508 136600-42480
4 CAMSHAFT 148218-51030
5 BEARING 144626-51050
6 SUPPORT, CAMSHAFT 148016-51060
7 SUPPORT, CAMSHAFT B 144626-51070
8 PLUNGER ASSY 748688-51600
12 O-RING 144626-51360
12-1 O-RING 152673-51430
13 O-RING, S34 144626-51420
13-1 O-RING 127695-51420
14 SPRING, PLUNGER 148616-51160
15 RETAINER, SPRING A 144626-51171
16 RETAINER, SPRING 148688-51180
17 STOPPER 144626-51191
18 TAPPET 148688-51200
19 BUSH 148688-51210
20 ROLLER, TAPPET 148688-51220
21 PIN, ROLLER 148688-51230
23 CIRCLIP 148688-51250
24 STOPPER 144626-51271
25 O-RING, P9 144626-51281
26 O-RING, P6 144626-51290
27-1 VALVE ASSY, DELIVERY 148218-51301
30 SPRING, DELIV. VALVE 135210-51330
31 HOLDER, DELIVERY 148218-51340
32-1 GASKET, DELIVERY 148218-51390
33 STOPPER, VALVE 145613-51360
34-1 SUPPORT ASSY, BARREL 148218-51410
36 PIN 144626-51410
37 DEFLECTOR 148616-51420
37-1 DEFLECTOR 148616-51421
38 PIN 144626-51430
39 SHIM SET, CAMSHAFT 144626-51451
40 RACK, CONTROL 148218-51500
41 PINION 148688-51510
42 SCREW 144626-51521
43 SPRING 135410-51530
44 WASHER 135410-51540
45 CIRCLIP 144626-51540
46 BUSH, RACK 144626-51580
47 SCREW 148688-51590
48 SCREW 144626-51600
49 CAP, RACK 148218-51640
50 O-RING 144626-51660
50-1 O-RING, 4DP10.0 24316-000100
51 PLUG 144626-51670
52 PLUG 148616-51671
53 O-RING 144626-51680
53-1 O-RING, 4D19018 24356-190180
54 PLUG, M16 L17 136603-51690
55 WASHER, SEAL 144626-51700
56 SHIM SET, ADJUSTING 148688-51700
57 PLUG 144626-51730
58 BOLT 144626-51800
59 PROTECTOR, SPILL 144626-51830
60 O-RING, S71 144626-51840
61 BEARING 148688-51850
62 PROTECTOR, SPILL 148688-51860
62-1 PROTECTOR, SPILL 126618-51860
63 BOLT 122780-51900
64 NAMEPLATE,CAUTION 148688-51910
65 GASKET, PLUG 180110-51910
67 LABEL 144626-51930
67-1 LABEL 124610-51970
68 PLUG 144626-51940
69 O-RING, 1016 144626-51950
70 LABEL 148816-51950
71 WASHER 144626-54581
72 WASHER, 8 22287-080000
73 WIRE, 0.6 22451-060000
73-2 WIRE, 0.8 22454-080000
74 KEY, 7X 22 22512-070222
75 KEY, WOODRUFF 6X22 22522-060220
76 RIVET, 2.3X 3 22621-230030
77 PLUG, R02 23871-020000
77-1 PLUG, R02 23876-020000
78-1 PLUG, 12 23887-120002
79-1 PLUG, 16 23887-160002
80 NUT, M10 26376-100002
81-1 BOLT 148688-51840
82 BOLT, M8X 20 26450-080202
83 SEAL WASHER 12S 43400-500450
83-1 WASHER, SEAL 12 22190-120002
84 SEAL WASHER 16 43400-500500
84-1 WASHER, SEAL 16 22190-160002
85 POINTER 148687-51881
86 BOLT, M8X 16 PLATED 26106-080162
87 SPACER, CAMSHAFT 140623-61500
88 WASHER, SPRING 14 22217-140000
89 NUT, M14 26601-140002
90 WASHER, SEAL M18 144626-51960
91 JOINT ASSY 148688-54990
92 TIMER ASSY 148218-54501
