YANMAR 748606-51902 Pump Assy, Injection

Write a Review
$10,007.82
SKU:
748606-51902
Schematic Object Key:
1-1

YANMAR 748606-51902 Pump Assy, Injection

$10,007.82

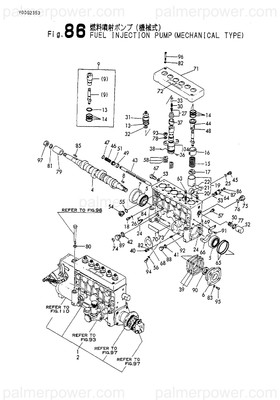

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 748606-51902 Pump Assy, Injection

Schematic Object Key : 1-1

Product Description : PUMP ASSY, INJECTION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 748606-51901
1-1 PUMP ASSY, INJECTION 748606-51902
2 PUMP ASSY, INJECTION 748606-51911
2-1 PUMP ASSY, INJECTION 748606-51912
4 CAMSHAFT 148616-51030
5 BEARING 144626-51050
6 SUPPORT, CAMSHAFT A 144626-51060
7 SUPPORT, CAMSHAFT B 144626-51070
8 KEY, 5X19 144626-51090
9 PLUNGER ASSY 748616-51600
13 O-RING 144626-51360
14 O-RING, S34 144626-51420
15 SPRING, PLUNGER 148616-51160
16 RETAINER, SPRING A 144626-51171
17 RETAINER, SPRING B 144626-51181
18 STOPPER 144626-51191
19 TAPPET ASSY 144626-51200
20 BUSH 144626-51210
21 ROLLER, TAPPET 144626-51220
22 PIN, ROLLER 144626-51230
24 STOPPER 144626-51271
25 O-RING, P9 144626-51281
26 O-RING, P6 144626-51290
27 VALVE ASSY, DELIVERY 148616-51301
27-1 VALVE ASSY, DELIVERY 148606-51300
30 SPRING, DELIV. VALVE 135210-51330
31 HOLDER, DELIVERY 144626-51340
32 PACKING 135210-51351
33 STOPPER, VALVE 145613-51360
34 SUPPORT ASSY, BARREL 148616-51390
36 PIN 144626-51410
37 DEFLECTOR 148616-51420
37-1 DEFLECTOR 148616-51421
38 PIN 144626-51430
39 SHIM SET, CAMSHAFT 144626-51451
40 NUT, M6 26716-060002
41 SEAL WASHER 12S 43400-500450
41-1 WASHER, SEAL 12 22190-120002
42 SEAL WASHER 16 43400-500500
42-1 WASHER, SEAL 16 22190-160002
43 RACK, CONTROL 144626-51500
44 PINION 144626-51511
45 SCREW 144626-51521
46 SPRING 135410-51530
47 WASHER 135410-51540
48 CIRCLIP 144626-51540
49 BUSH, RACK 144626-51580
50 SCREW 144626-51590
51 SCREW 144626-51600
52 NUT, CAP 144626-51641
53 O-RING 144626-51660
54 PLUG 144626-51670
55 O-RING 144626-51680
56 WASHER, SEAL 144626-51700
57 PLUG 144626-51730
58 SHIM SET, ADJUSTING 144626-51751
63 BOLT 144626-51800
64 PROTECTOR, SPILL 144626-51830
65 O-RING, S71 144626-51840
66 BEARING 144626-51850
67 PROTECTOR, SPILL 148616-51860
68 GASKET 144626-51871
68-1 GASKET 124410-51861
69 POINTER 148687-51881
70 RIVET 124220-51890
71 COVER 144626-51890
72 LABEL 144626-51911
73 LABEL, FUEL I. PUMP 144626-51920
74 LABEL 144626-51930
75 PLUG 144626-51940
76 O-RING, 1016 144626-51950
77 WASHER, SEAL M18 144626-51960
77-1 WASHER, SEAL 18 22190-180002
78 WASHER 144626-54581
79 SPACER, CAMSHAFT 140623-61500
80 WASHER, 10 22117-100000
81 WASHER, SPRING 14 22217-140000
82 WASHER, SPRING 6 22234-060000
83 WASHER, 8 22287-080000
84 WIRE, 0.6 22451-060000
84-1 WIRE, 0.8 22454-080000
85 KEY, 7X 22 22512-070222
86 BOLT 122780-51900
87 GASKET, 6X1.0 23418-060000
88 PLUG 23881-120002
88-1 PLUG, 12 23887-120002
89 PLUG, 16 23887-160002
90 SEAL, OIL TC254008 24421-254008
91 BOLT, M8X 16 PLATED 26106-080162
92 STUD, M6X 12 26226-060122
92-1 STUD, M6X 16 26226-060162
93 NUT, M10 26376-100002
94 BOLT, M6X 16 26450-060162
95 BOLT, M8X 20 26450-080202
96 SCREW, M6X45 26577-060452
97 NUT, M14 26601-140002
