YANMAR 748609-51600 Plunger Assy

Write a Review
$592.64
SKU:
748609-51600
Schematic Object Key:
8

YANMAR 748609-51600 Plunger Assy

$592.64

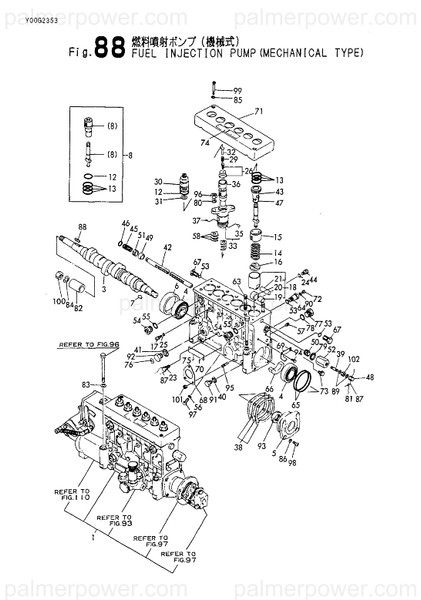

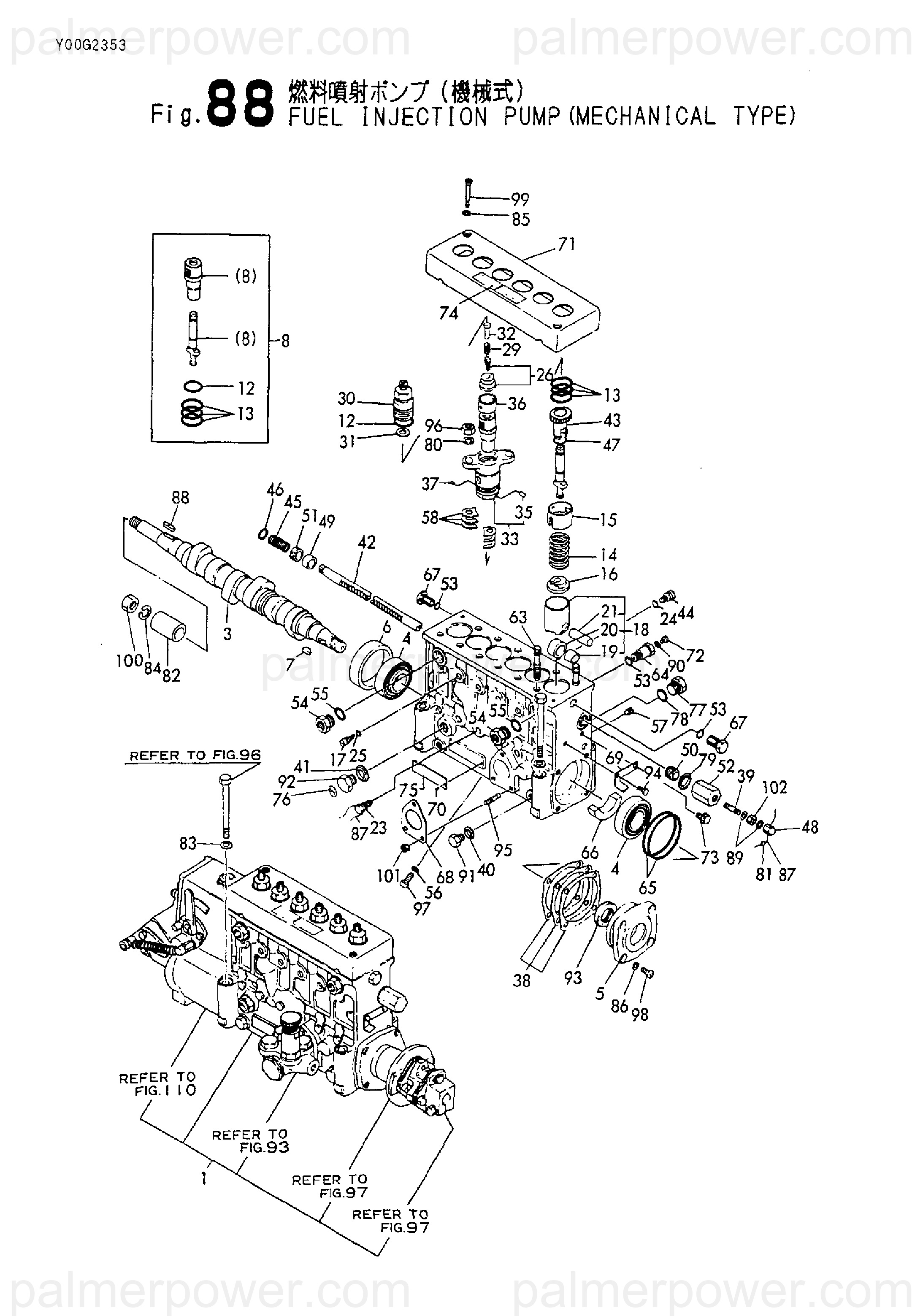

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 748609-51600 Plunger Assy

Schematic Object Key : 8

Product Description : PLUNGER ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 748609-51902
1-1 PUMP ASSY, INJECTION 748609-51903
3 CAMSHAFT 148616-51030
4 BEARING 144626-51050
5 SUPPORT, CAMSHAFT A 144626-51060
6 SUPPORT, CAMSHAFT B 144626-51070
7 KEY, 5X19 144626-51090
8 PLUNGER ASSY 748609-51600
12 O-RING 144626-51360
13 O-RING, S34 144626-51420
14 SPRING, PLUNGER 148616-51160
15 RETAINER, SPRING A 144626-51171
16 RETAINER, SPRING B 144626-51181
17 STOPPER 144626-51191
18 TAPPET ASSY 144626-51200
19 BUSH 144626-51210
20 ROLLER, TAPPET 144626-51220
21 PIN, ROLLER 144626-51230
23 STOPPER 144626-51271
24 O-RING, P9 144626-51281
25 O-RING, P6 144626-51290
26 VALVE ASSY, DELIVERY 148616-51301
26-1 VALVE ASSY, DELIVERY 148606-51300
29 SPRING, DELIV. VALVE 135210-51330
30 HOLDER, DELIVERY 144626-51340
31 PACKING 135210-51351
32 STOPPER, VALVE 145613-51360
33 SUPPORT ASSY, BARREL 148616-51390
35 PIN 144626-51410
36 DEFLECTOR 148616-51420
36-1 DEFLECTOR 148616-51421
37 PIN 144626-51430
38 SHIM SET, CAMSHAFT 144626-51451
39 SCREW, M8X32 26911-080322
40 SEAL WASHER 12S 43400-500450
40-1 WASHER, SEAL 12 22190-120002
41 SEAL WASHER 16 43400-500500
41-1 WASHER, SEAL 16 22190-160002
42 RACK, CONTROL 144626-51500
43 PINION 144626-51511
44 SCREW 144626-51521
45 SPRING 135410-51530
46 WASHER 135410-51540
47 CIRCLIP 144626-51540
48 NUT 152623-51560
49 BUSH, RACK 144626-51580
50 SCREW 144626-51590
51 SCREW 144626-51600
52 NUT 148616-51640
53 O-RING 144626-51660
54 PLUG 144626-51670
55 O-RING 144626-51680
56 WASHER, SEAL 144626-51700
57 PLUG 144626-51730
58 SHIM SET, ADJUSTING 144626-51751
63 BOLT 144626-51800
64 PROTECTOR, SPILL 144626-51830
65 O-RING, S71 144626-51840
66 BEARING 144626-51850
67 PROTECTOR, SPILL 148616-51860
68 GASKET 144626-51871
68-1 GASKET 124410-51861
69 POINTER 148687-51881
70 RIVET 124220-51890
71 COVER 144626-51890
72 BOLT 122780-51900
73 BOLT 148606-51900
74 LABEL 144626-51911
75 LABEL, FUEL I. PUMP 144626-51920
76 LABEL 144626-51930
77 PLUG 144626-51940
78 O-RING, 1016 144626-51950
79 WASHER, SEAL M18 144626-51960
79-1 WASHER, SEAL 18 22190-180002
80 WASHER 144626-54581
81 LEAD 135210-61090
82 SPACER, CAMSHAFT 140623-61500
83 WASHER, 10 22117-100000
84 SPRING WASHER 14 22212-140000
85 WASHER, SPRING 6 22234-060000
86 WASHER, 8 22287-080000
87 WIRE, 0.6 22451-060000
87-1 WIRE, 0.6 22453-060000
88 KEY, 7X 22 22512-070222
89 GASKET, 8X1.0 23414-080012
90 GASKET, 6X1.0 23418-060000
91 PLUG 23881-120002
91-1 PLUG, 12 23887-120002
92 PLUG, 16 23887-160002
93 SEAL, OIL TC254008 24421-254008
94 BOLT, M8X 16 PLATED 26106-080162
95 STUD, M6X 12 26226-060122
95-1 STUD, M6X 16 26226-060162
96 NUT, M10 26376-100002
97 BOLT, M6X 16 26450-060162
97-1 BOLT 148688-51840
98 BOLT, M8X 20 26450-080202
99 SCREW, M6X45 26577-060452
100 NUT, M14 26601-140002
101 NUT, M6 26716-060002
102 NUT, LOCK M8 26757-080002
