YANMAR 748687-51600 Plunger Assy

Write a Review
$418.36
SKU:
748687-51600
Schematic Object Key:
9

YANMAR 748687-51600 Plunger Assy

$418.36

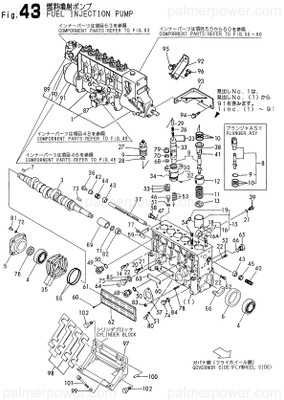

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 748687-51600 Plunger Assy

Schematic Object Key : 9

Product Description : PLUNGER ASSY 748687-51600

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A PUMP ASSY, INJECTION 748687-51352
2 OIL SEAL TC304508 136600-42480
4 SHAFT 148687-51030
5 BEARING 144626-51050
6 SUPPORT, CAMSHAFT 148016-51060
7 SUPPORT, CAMSHAFT B 144626-51070
8 KEY, 5X19 144626-51090
9 PLUNGER ASSY 748687-51600
10 O-RING 144626-51360
11 O-RING, S34 144626-51420
12 SPRING, PLUNGER 148616-51160
13 RETAINER, SPRING A 144626-51171
14 RETAINER, SPRING B 144626-51181
15 STOPPER 144626-51191
16 TAPPET ASSY 144626-51200
17 BUSH 144626-51210
18 ROLLER, TAPPET 144626-51220
19 PIN, ROLLER 144626-51230
21 STOPPER 144626-51271
22 O-RING, P9 144626-51281
23 O-RING, P6 144626-51290
24 VALVE ASSY, DELIVERY 148816-51300
25 SPRING, DELIV. VALVE 135210-51330
26 HOLDER, DELIVERY 144626-51340
27 PACKING 135210-51351
28 STOPPER, VALVE 145613-51360
29 SUPPORT ASSY, BARREL 148616-51390
31 PIN 144626-51410
32 DEFLECTOR 148616-51420
33 PIN 144626-51430
34 SHIM SET, CAMSHAFT 144626-51451
35 RACK, CONTROL 144626-51500
36 PINION 144626-51511
37 SCREW 144626-51521
38 SPRING 135410-51530
39 WASHER 135410-51540
40 CIRCLIP 144626-51540
41 BUSH, RACK 144626-51580
42 SCREW 144626-51590
43 SCREW 144626-51600
44 NUT, CAP 144626-51641
45 O-RING 144626-51660
46 PLUG 144626-51670
47 PLUG 148616-51671
48 O-RING 144626-51680
49 WASHER, SEAL 144626-51700
50 PLUG 144626-51730
51 SHIM SET, ADJUSTING 144626-51751
52 BOLT 144626-51800
53 PROTECTOR, SPILL 144626-51830
54 O-RING, S71 144626-51840
55 BEARING 144626-51850
56 GASKET 124410-51861
57 PROTECTOR, SPILL 148616-51860
58 POINTER 148687-51881
59 BOLT 122780-51900
60 NAMEPLATE,CAUTION 148688-51910
61 LABEL 126616-51920
62 NAMEPLATE,PUMP 148687-51922
63 LABEL 144626-51930
64 PLUG 144626-51940
65 O-RING, 1016 144626-51950
66 WASHER, SEAL M18 144626-51960
67 WASHER 144626-54581
68 SPACER, CAMSHAFT 140623-61500
69 WASHER, 10 22117-100000
70 SPRING WASHER 14 22212-140000
71 WASHER, 8 22287-080000
72 WIRE, 0.6 22451-060000
73 KEY, 7X 22 22512-070222
74 RIVET, 2.3X 3 22621-230030
75 GASKET, 6X1.0 23418-060000
76 PLUG 23881-120002
77 PLUG 23881-160002
78 BOLT, M8X 16 PLATED 26106-080162
79 STUD, M6X 12 26226-060122
80 NUT, M10 26376-100002
81 BOLT, M6X 16 26450-060162
82 BOLT, M8X 20 26450-080202
83 NUT, M14 26601-140002
84 NUT, M6 26716-060002
85 SEAL WASHER 12S 43400-500450
86 SEAL WASHER 16 43400-500500
87 NaN *REF.TO FIG 44
88 NaN *REF.TO FIG 45
89 NaN *REF.TO FIG 46
90A NaN *REF.TO FIG 49
91 BRACKET, PUMP 148616-54020
92 SHIM SET 148616-54070
93 WASHER, 10 22137-100000
94 PIN, PARALLEL M10X25 22312-100250
95 BOLT, M10X 90 PLATED 26106-100902
96 BOLT, M12X 30 PLATED 26116-120302
97 BOLT, M12X 90 PLATED 26116-120902
