YANMAR 758512-64211 Assy,Gov Motor

Write a Review
$5,083.75
SKU:
758512-64211
Schematic Object Key:
1

YANMAR 758512-64211 Assy,Gov Motor

$5,083.75

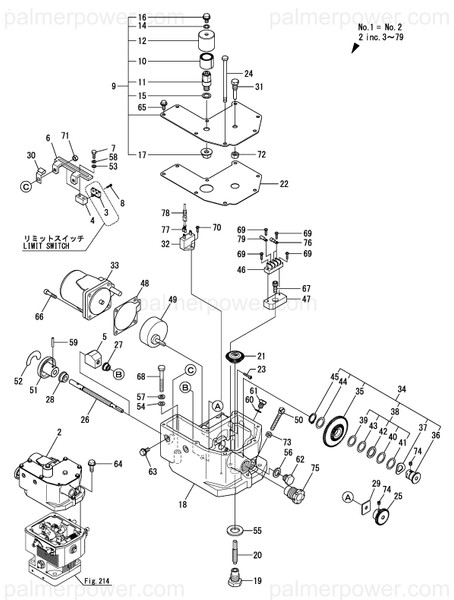

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 758512-64211 Assy,Gov Motor

Schematic Object Key : 1

Product Description : ASSY,GOV MOTOR 758512-64211

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 ASSY,GOV MOTOR (758512-64211)
2 MOTOR ASSY, GOVERNOR 758512-64211
3 SWITCH, LIMIT 158510-64050
4 BRACKET,LIMIT SWITCH 158510-64060
5 LIMITER 158510-64070
6 GUIDE, LIMIT SWITCH 158510-64080
7 BOLT, M4 158510-64100
8 SCREW, M2 158510-64110
9 PLATE ASSY, TOP 158512-64200
10 BAFFLE, BREATHER 158512-64170
11 PLUG, AIR VENT 158512-64180
12 COVER 158512-64190
14 GASKET, 6X1.0 23414-060000
15 GASKET, 10X1.0 23414-100000
16 BOLT, M6X 10 PLATED 26106-060102
17 NUT, M10 26376-100002
18 BRACKET, MOTOR 158512-64251
19 SCREW, GUIDE 158512-64290
20 SCREW, SPINDLE 158512-64300
21 GEAR, BEVEL Z=33 158510-64310
22 PACKING, MOUNT PLATE 158512-64361
23 BOLT, M3X15 158512-64370
24 BOLT, M6X103 158512-64380
25 GEAR, MANUAL SHAFT 158510-64400
26 SHAFT, MANUAL 158510-64410
27 BUSH, A 158510-64420
28 BUSH, B 158510-64430
29 WASHER 158510-64440
30 CLAMP, A 158510-64450
31 STOPPER, SPINDLE 158510-64470
32 CONDENSER 46150-053630
33 MOTOR 158512-64690
34 COUPLING, FRICTION 158510-64600
35 GEAR, GOVERNOR MOTOR 158510-64330
36 COUPLING, FRICTION 158510-64340
37 WASHER, WAVE 158510-64350
38 SHIM SET 158510-64360
39 SHIM, T=0.50 158510-64370
40 SHIM, T=0.30 158510-64380
41 SHIM, PLUNGER T=0.2 158510-64390
42 SHIM, T=2.00 158510-64550
43 SHIM, T=0.40 158510-64560
44 SHIM, T=0.50 158510-64370
45 RING, 16 22242-000160
46 TERMINAL BLOCK 158510-64640
47 PLATE,TERMINAL BLOCK 158510-64720
48 PACKING, MOTOR 158512-64740
49 HEAD, GEAR 1/150 158510-64750
50 SCREW, SPEED ADJUST 105300-66520
51 KNOB, CONTROL 158510-67400
52 LABEL, CONTROL KNOB 158510-67450
53 WASHER, 4 22117-040000
54 WASHER, 6 22117-060000
55 WASHER, 16 22137-160000
56 WASHER, SEAL 12 22190-120002
57 WASHER 6 22212-060000
58 WASHER, SPRING 4 22217-040000
59 PIN, SPRING 3.0X20 22351-030020
60 GASKET, 8X1.0 23414-080012
61 PLUG 8 23887-080002
62 PLUG, 12 23887-120002
63 BOLT, M6X 16 PLATED 26106-060162
64 BOLT, M6X 25 PLATED 26106-060252
65 BOLT, M5X 12 PLATED 26107-050122
66 BOLT, M5X 22 26450-050222
67 BOLT, M6X 16 26450-060162
68 BOLT M 6X 50 26450-060502
69 SCREW, M3X12 26557-030122
70 SCREW, M4X10 26557-040102
71 NUT, M6 26716-060002
72 NUT, M8 26716-080002
73 NUT, LOCK M6 26756-060002
74 SCREW 26979-050062
75 GLAND, WIRE 15C 46150-060070
76 TERMINAL 46150-062630
77 TERMINAL 46150-062640
78 SLEEVE, CONNECTOR 46150-062650
79 TERMINAL 46150-062660

YANMAR 758512-64211 Assy,Gov Motor
