YANMAR 777056-02560 Cover Assy

Write a Review
$4,459.96
SKU:
777056-02560
Schematic Object Key:
39

YANMAR 777056-02560 Cover Assy

$4,459.96

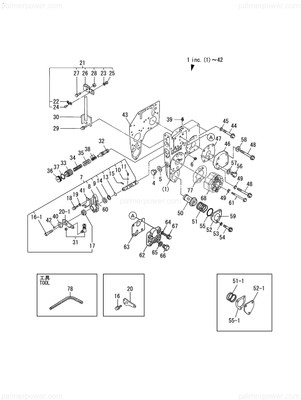

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 777056-02560 Cover Assy

Schematic Object Key : 39

Product Description : COVER ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING ASSY, CLUTCH 777052-02551
1-1 HOUSING ASSY, CLUTCH 777052-02552
3 PIN, PARALLEL 177099-02130
4 PLUG, MAGNET M16X1.5 177035-02920
5 WASHER, SEAL 16 22190-160003
6 PIN, PARALLEL 177099-02130
6A PLUG, R03 23873-030000
6B PLUG, 16 23887-160002
6C WASHER, SEAL 16 22190-160003
7 WASHER, 8 22287-080000
8 SEAL, OIL TC689012 24423-689012
9 BOLT, M8X 14 PLATED 26106-080142
10 BOLT, EYE M8 26617-080002
11 WASHER 41701-000680
11-1 WASHER 8 22151-080000
12 FLANGE, SAE#3 177052-02021
14 SHIM SET 177095-02150
19 SHIM SET 177411-02550
24 WASHER, 8 22113-080000
25 WASHER, 8 22287-080000
26 SEAL, OIL TC355008 24423-355008
27 BOLT, M8X 25 PLATED 26106-080252
28 BOLT, M8X 25 PLATED 26203-080252
29 COVER 177058-02291
33 O-RING, 1AP25.0 24311-000250
34 COVER, STRAINER 177040-02320
34-1 COVER, STRAINER 177524-04041
35 STRAINER 177040-02800
36 SPRING, STRAINER 1E6440-55230
36-1 SPRING, STRAINER 177524-04090
37 WASHER, 8 22287-080000
38 O-RING, 1AG35.0 24321-000350
38-1 GASKET, COVER 177524-04082
38-2 PACKING,COVER 177524-04083
39 COVER ASSY 777056-02560
39-1 COVER ASSY 777056-02561
42 PLUG, R1/8 23171-010000
43 PLUG, R01 23871-010000
44 PLUG, 12 23490-120002
45 VALVE ASSY, SWITCH 777058-02530
46 COVER 177058-04090
47 SPACER 177040-04110
49 RING 177058-04160
50 SPRING 177040-04400
51 RING, 22 22242-000220
52 PIN, SPRING 4.0X20 22351-040020
53 BALL, STEEL 5/16 24190-100001
54 O-RING, 1AP18.0 24311-000180
55 BOLT, M10X 16 PLATED 26106-100162
55-1 BOLT, M10X 20 26450-100202
56 LEVER 177061-04110
56-1 LEVER 177061-04111
57 WASHER, 8 22287-080000
58 BOLT, M8X 30 PLATED 26106-080302
58A SPACER 177561-04120
58A-1 SPACER 177561-04121
58B SUPPORT, SWITCH 177561-04140
58C PIN, SPRING 5.0X10 22351-050010
59 VALVE 177052-04202
59-1 VALVE 177061-04201
60 VALVE 177058-04220
60-1 VALVE 177061-04221
61 COVER 177040-04230
61-1 COVER 177061-04240
62 SPRING, VALVE 177058-04240
62-1 SPRING, VALVE 177561-04250
63 SPRING, VALVE 177052-04260
63-1 SPRING, VALVE 177052-04261
64 SHIM SET 177561-04220
68 O-RING, 1AP22.0 24311-000220
69 GASKET 177052-02071
69-1 GASKET, PLATE 177558-02070
69-2 GASKET, CASE PLATE 177558-02071
70 WASHER, 8 22287-080000
71 BOLT, M8X 50 PLATED 26106-080502
72 BRACKET, WIRE 177040-04750
73 BRACKET ASSY, CABLE 177061-04490
74 SPRING WASHER 22212-050000
75 BOLT, M8X 20 PLATED 26116-080202
76 SCREW 26551-050122
77 NUT, M5 26716-050002
78 NUT, M8 26716-080002
79 BRACKET 41701-001720
80 CLAMP 41710-000410
81 BOLT, M8X 20 PLATED 26106-080202
82 JOINT, BALL 41710-001300
83 COVER 177052-02100
83-1 COVER 177558-02100
84 GASKET 177052-02111
84-1 PACKING 177558-02110
85 WASHER, 8 22287-080000
86 GASKET, 8X1.0 23414-080000
87 PLUG, 12 23490-120002
88 O-RING, 1AP9.0 24311-000090
89 BOLT, M8X 75 PLATED 26106-080752
90 BOLT, M8X 40 PLATED 26106-080402
91 RIVET 2.5X 4 22624-250040
93 LABEL, STRAINER 176063-02930
93-1 LABEL, STRAINER 177050-02821
94 LABEL, FILTER 177050-02820
95 LABEL 177061-02800
95-1 LABEL 177050-02811
96 LABEL(LO) 177050-02830
97 LABEL 177055-02950
97-1 LABEL 177055-02951
98 LABEL 177061-02810
98-1 LABEL,EMERGENCY BOLT 177061-02811
99 LABEL,EMERGENCY BOLT 177061-02820
100 PLATE, BAFFLE 177058-02501
100-1 PLATE, BAFFLE 177052-02900
101 NUT, LOCK 177058-02900
102 BOLT, M6X 16 PLATED 26106-060162
103 COVER 177010-02430
104 BOLT, M10X 14 PLATED 26106-100142
105 BOLT, M8X 16 26450-080162
106 WASHER 8 22212-080000
107 LABEL, CLUTCH OIL 177551-02950
107-1 LABEL,CLUTCH OIL 177551-02951
