YANMAR 777525-04830 Trolling Kit,1.55

Write a Review
$7,766.30
SKU:
777525-04830
Schematic Object Key:
3

YANMAR 777525-04830 Trolling Kit,1.55

$7,766.30

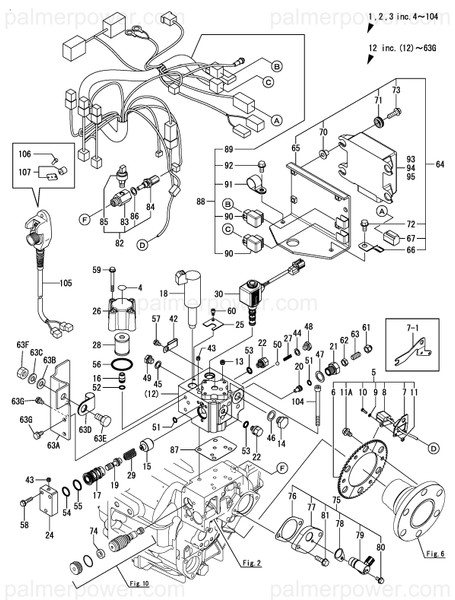

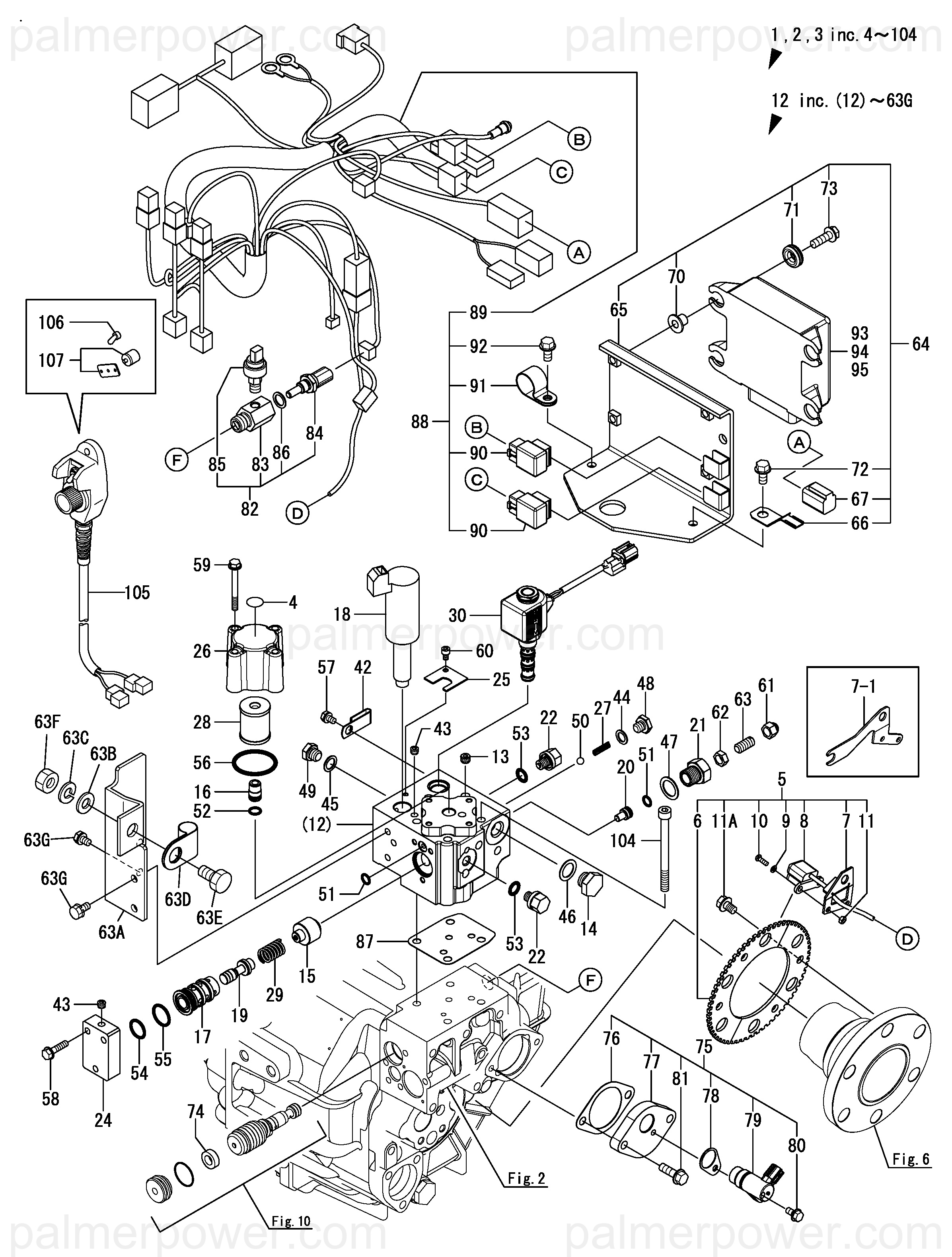

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 777525-04830 Trolling Kit,1.55

Schematic Object Key : 3

Product Description : TROLLING KIT 777525-04830

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 TROLLING KIT 777525-04810
1-1 TROLLING KIT,2.43 777525-04811
2 TROLLING KIT 777525-04820
2-1 TROLLING KIT,2.04 777525-04821
3 TROLLING KIT 777525-04830
3-1 TROLLING KIT,1.55 777525-04831
4 STICKER, STRAINER 177523-02910
4-1 STICKER, STRAINER 177523-02911
5 TROLLING ASSY 177525-04100
6 RING, OUTPUT 177525-03800
6-1 GEAR, PULSER 177525-03810
7 BRACKET, SENSOR 177525-04110
7-1 BRACKET, SENSOR 177525-65120
8 SENSOR 177129-04690
9 WASHER, SPRING 4 22217-040000
10 SCREW, M4X12 26557-040122
11 NUT, M4 26716-040002
11A BOLT, M8X 12 PLATED 26106-080122
12 VALVE ASSY, TROLLING 177523-04400
12-1 VALVE ASSY, TROLLING 177523-04401
12-2 VALVE ASSY, TROLLING 177523-04402
12-3 VALVE ASSY, C-TYPE 177523-04403
13 PLUG, PT1/8 124060-01050
14 PLUG, MAGNET M16X1.5 177035-02920
15 VALVE, TROLLING 177503-04183
16 PIPE, WATER 177503-04200
17 SLEEVE, VALVE 177503-04211
17-1 SLEEVE, VALVE 177523-04350
18 VALVE ASSY 177503-04260
19 VALVE, TROLLING 177517-04260
19-1 VALVE, TROLLING 177523-04360
20 COVER 177068-04370
21 PLUG 177068-04380
22 PLUG, M10X1.0 177524-04420
24 COVER 177523-04520
25 BRACKET, VALVE 177523-04530
26 CASE, STRAINER 177523-04540
27 SPRING 177040-04630
28 ELEMENT 177129-04830
29 SPRING, NO.4 177068-04881
30 VALVE, SOLENOID 177511-04920
42 CLAMP 194440-51620
43 PLUG, 1/16 194555-77120
44 GASKET, 10X1.0 23414-100000
45 GASKET, 12X1.0 23414-120000
46 GASKET, 16X1.0 23414-160000
47 GASKET, 18X1.0 23414-180000
48 PLUG, 10 23887-100002
49 PLUG, 12 23887-120002
50 BALL, STEEL 9/32 24190-090001
51 O-RING, 1AP9.0 24311-000090
52 O-RING, 1AP10.0 24311-000100
53 O-RING, 1AP12.0 24311-000120
54 O-RING, 1AP18.0 24311-000180
55 O-RING, 1AP21.0 24311-000210
56 O-RING, 1AG40.0 24321-000400
57 BOLT, M6X 10 26013-060102
58 BOLT, M6X 25 PLATED 26106-060252
59 BOLT, M6X 55 PLATED 26106-060552
60 BOLT, M5X 8 26450-050082
61 NUT, CAP M10 26657-100002
62 NUT, LOCK M10 26756-100002
63 SCREW, M10X22 26911-100222
63A BRACKET,SOL 177523-04880
63B WASHER, 10 22117-100000
63C WASHER, SPRING 10 22217-100000
63D CLAMP, A35X12 23297-350121
63E BOLT, M10X 20 PLATED 26116-100202
63F NUT, M10 26716-100002
63G BOLT, M6X 10 26013-060102
64 BRACKET ASSY 177523-04410
65 BRACKET 177523-04420
66 CLIP, CONNECTOR 119578-75610
67 CONNECTOR ASSY 119578-75650
70 COLLAR, CONTROLLER 119578-77680
71 RUBBER, CONTROLLER 119578-91351
72 BOLT, M8X 16 PLATED 26106-080162
73 BOLT, M8X 25 PLATED 26106-080252
74 SPACER 177523-04440
75 SENSOR ASSY 177523-04450
76 GASKET, COVER 177524-02210
76-1 GASKET, COVER 177524-02211
77 COVER, PTO 177523-04470
78 SHIM 177305-54590
79 SENSOR 158557-61720
80 BOLT, M6X 12 PLATED 26106-060122
81 BOLT, M8X 25 PLATED 26106-080252
82 SENSOR ASSY 177523-04460
83 JOINT, NPTF3/8 177523-04430
84 SENSOR, WATER TEMP. 119254-44910
85 SENSOR, PRESSURE 119578-91300
86 GASKET, 12X1.0 23414-120000
87 GASKET, TROLLING 177524-04530
87-1 GASKET, TROLLING 177524-04531
88 HARNESS ASSY, WIRE 177523-04550
89 HARNESS, WIRE 177523-04560
90 RELAY, CA-1A 1E6910-82500
91 CLAMP, A27X12 23297-250081
92 BOLT, M8X 16 PLATED 26106-080162
93 MTCU 2.43 ASSY 177525-04710
94 MTCU 2.04 ASSY 177525-04720
95 MTCU 1.55 ASSY 177525-04730
104 BOLT, M8X 95 26450-080952
105 DIAL, TROLLING 177503-04311
106 CAP 177503-04390
107 COVER ASSY 177503-04400
