YANMAR X0201062540 Bolt

Write a Review
$1.48
SKU:
X0201062540
Schematic Object Key:
6

YANMAR X0201062540 Bolt

$1.48

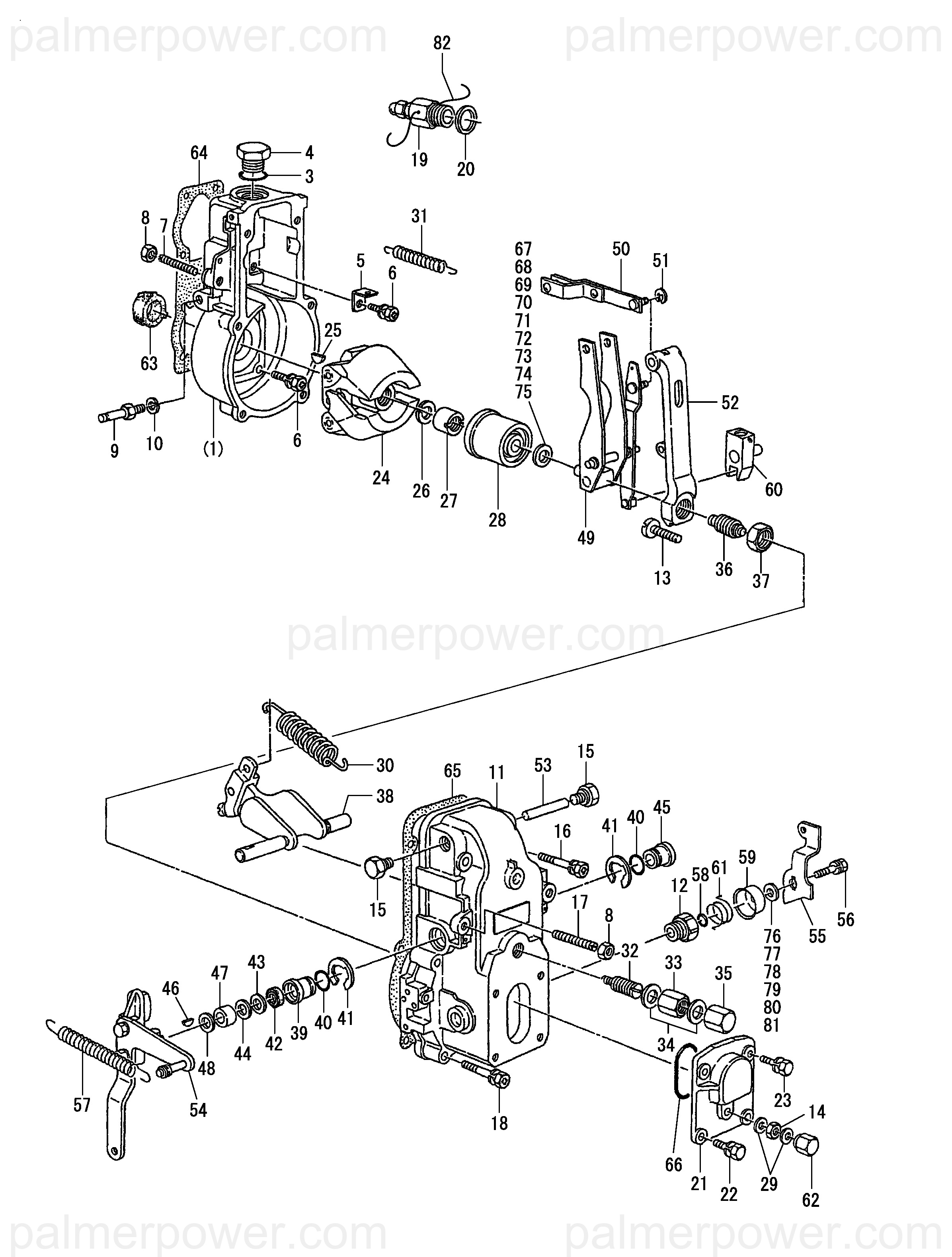

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X0201062540 Bolt

Schematic Object Key : 6

Product Description : BOLT X0201062540

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
3 O-RING X0296325070
4 PLUG X1540072900
5 PLATE X1543506000
6 BOLT X0201062540
7 SCREW X1540101100
8 NUT X1540110100
9 BOLT X1540121720
10 WASHER, SPRING X1566151800
11 COVER X1545003020
12 BUSH X1543210400
13 SCREW X1540312400
14 NUT X1392060600
15 PLUG X1540360300
16 BOLT X0201065040
17 SCREW X1540100200
18 BOLT X0201063840
19 LIMITER X1530212220
20 GASKET X0265243040
21 COVER X1540631400
22 BOLT X0290206210
23 BOLT X0200061640
24 FLYWAIGHT ASSY. X1541010020
25 WOODRUFF KEY X0258031310
26 SPRING WASHER X0293212020
27 NUT X0292312030
28 SLEEVE X1541230120
29 PACKING 139653-51990
30 SPRING X1541500100
31 SPRING, GOVERNOR X1541540800
32 CAPSULE, SPRING X1541580820
33 NUT X1540111700
34 GASKET X0265121840
35 NUT, CAP X1541591200
36 CAPSULE, SPRING X1541851320
37 NUT X0292016010
38 LEVER, SWIVEL X1542007020
39 BUSH X1542043000
40 O-RING X0296318020
41 RING, SNAP X0160101640
42 SEAL, OIL X1396110000
43 SHIM X1394110000
44 SHIM X0293111070
45 BUSH X1542044400
46 WOODRUFF KEY X0258031310
47 COLLAR X1542062800
48 WASHER X1542060200
49 LEVER ASSY, GUIDE X1542114320
50 LINK X1542302920
51 RING, SNAP X0160100540
52 LEVER, TENSION X1542364100
53 PIN X1542370100
54 LEVER X1543455320
55 LEVER X1543044720
56 BOLT X0200061640
57 SPRING X1543142600
58 O-RING X0296310030
59 CAP X1543220100
60 LEVER ASSY X1543265120
61 SPRING X1543277300
62 CAP NUT X1540351600
63 IMPELLER X1554125200
64 GASKET X1543715600
65 GASKET X1543900300
66 O-RING X0296352020
67 SHIM T0.2 D14/10.1 X0293110010
68 SHIM T0.3 D14/10.1 X0293110180
69 SHIM T0.4 D14/10.1 X0293110190
70 SHIM T1.0 D14/10.1 X0293110210
71 SHIM T0.5 D14/10.1 X1394100000
72 SHIM T1.5 D14/10.1 X1394100100
73 SHIM T2.0 D14/10.1 X1394103000
74 SHIM T3.0 D14/10.1 X1394103100
75 SHIM T4.0 D14/10.1 X1394103200
76 SHIM X0293110520
77 SHIM X0293110530
78 SHIM X0293110540
79 SHIM X0293110550
80 SHIM X0293110560
81 SHIM X0293110570
82 WIRE, 1.0 120325-61100
