YANMAR X0230406040 Nut

Write a Review
$1.29
SKU:
X0230406040
Schematic Object Key:
83

YANMAR X0230406040 Nut

$1.29

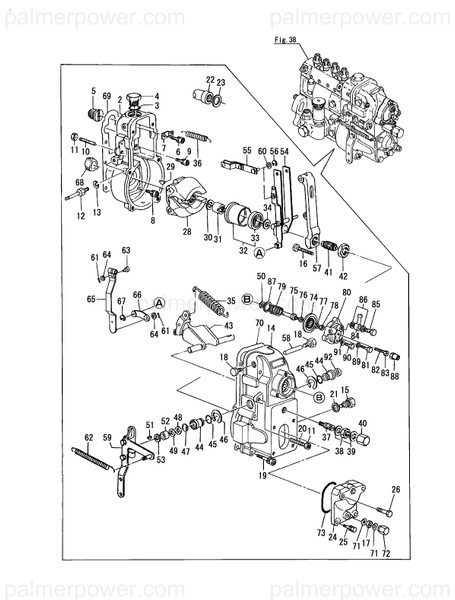

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X0230406040 Nut

Schematic Object Key : 83

Product Description : NUT X0230406040

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 HOUSING, GOVERNOR X1540045120
3 O-RING X0296325070
4 PLUG X1540072900
5 ADAPTOR X1540070200
6 BOLT X0200181840
7 PLATE X1543501800
8 BOLT X0290106810
9 BOLT X0200061640
10 SCREW X1540100100
11 NUT X1540110100
12 BOLT X1540121720
13 WASHER, SPRING X0141108440
14 COVER X1540225120
15 BOLT X1544012100
16 SCREW X1540311300
17 NUT X0292406010
18 PLUG X1540360300
19 BOLT X0201065040
20 SCREW X1540100100
21 GASKET X0265101440
22 LIMITER X1530204420
23 GASKET X0265182240
24 COVER X1540634520
25 BOLT X0290206210
26 BOLT X0200061640
28 FLYWAIGHT ASSY. X1541010020
29 WOODRUFF KEY X0258031610
30 SPRING WASHER X0293212020
31 NUT X0292312030
32 SLEEVE X1541230120
33 BEARING X0298010030
34 SHIM X0299981000
35 SPRING, GOVERNOR X1541506400
36 SPRING X1541540701
37 CAPSULE, SPRING X1541580820
38 NUT X0292012290
39 GASKET X0265121540
40 NUT, CAP X1541591200
41 CAPSULE, SPRING X1541851320
42 NUT X0292016010
43 LEVER, SWIVEL X1542000220
44 BUSH X1542041900
45 O-RING X0296318020
46 RING, SNAP X0160101640
47 SEAL, OIL X1396110000
48 SHIM X1394110000
49 SHIM X0293111090
50 SHIM X0293109080
51 WOODRUFF KEY X0258031310
52 COLLAR X1542062800
53 WASHER X1542060200
54 LEVER ASSY, GUIDE X1542172920
55 LINK X1542344120
56 RING, SNAP X0160100540
57 LEVER, TENSION X1542364100
58 PIN X1542370100
59 LEVER X1543455320
60 SHIM X0293105170
61 SPLIT PIN X0255201210
62 SPRING X1543142600
63 PIN X1542226200
64 WASHER X0293004010
65 LEVER X1544013620
66 LINK X1544011320
67 RING, SNAP X0160100540
68 IMPELLER X1554125200
69 GASKET X1543507700
70 GASKET X1543507800
71 GASKET X0265061040
72 CAP NUT X1540351600
73 O-RING X0296352020
74 DIAPHRAGM X1544007420
75 ROD, PUSH X1544004800
76 GASKET X0293308050
77 SPRING WASHER X1393080700
78 NUT X0130306040
79 SPRING X1544025700
80 COVER X1544043900
81 BOLT X0201062540
82 SCREW X1540341900
83 NUT X0230406040
84 COLLAR X0299110020
85 EYE BOLT X0297310120
86 GASKET X0265101340
87 SHIM T0.5 D25.5/20.0 X0293120180
88 CAP NUT X1540350320
89 WASHER, SPRING X0141106440
90 PLUG X0290106010
91 GASKET X0265061040
92 BUSH X1542043100
