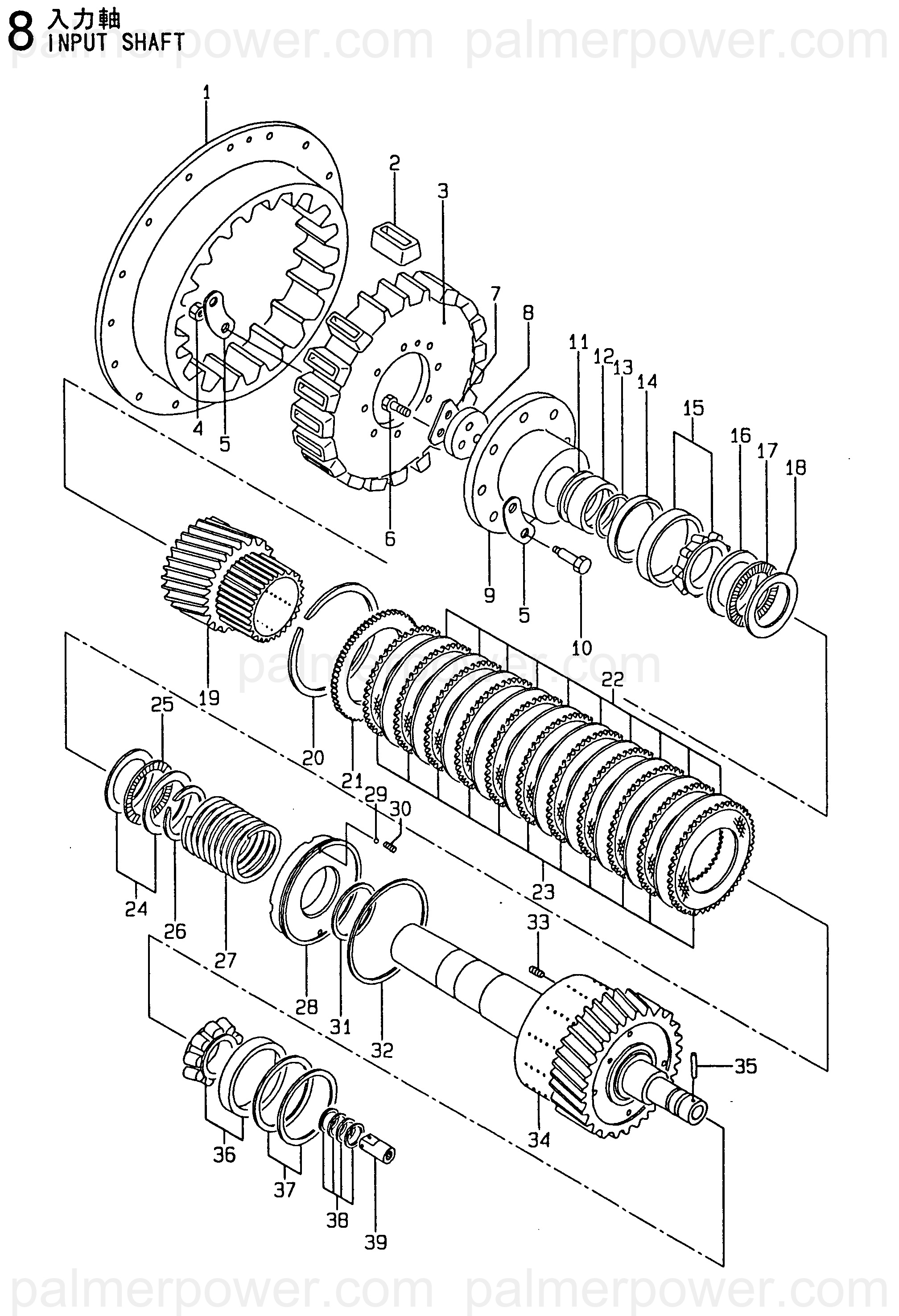

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description : PLATE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
| Ref | Description | Part No. |
|---|---|---|
| 1 | RING, DRIVING | X25110A |
| 2 | BLOCK, RUBBER | X38722 |
| 3 | SPIDER | X512757 |
| 4 | NUT | XN089411600 |
| 5 | PLATE, LOCK | X151600Z |
| 6 | BOLT | X155516A |
| 7 | PLATE, LOCK | XJB1505D |
| 8 | PLATE | X113623BO |
| 9 | INPUT COUPLING ASSY | X334853 |
| 10 | BOLT, REAMER | X151869H |
| 11 | SHIM (SET | X151436X |
| 12 | SPACER | X157698 |
| 13 | O-RING | XN048110019 |
| 14 | SEAL, OIL | XN408010900 |
| 15 | BEARING,TAPER ROLLER | X157710 |
| 16 | WASHER, THRUST | X157695 |
| 17 | BEARING, NEEDLE | X157708 |
| 18 | RACE, THRUST | X157709 |
| 19A | PINION ASSY(G.R=1.00 | X334959 |
| 19B | PINION ASSY(G.R=1.45 | X334883B |
| 19C | PINION ASSY(G.R=2.04 | X334883A |
| 19D | PINION ASSY(G.R=2.38 | X334883H |
| 20 | RING, SNAP | XN421019000 |
| 21 | PLATE, BACK | X330479A |
| 22 | PLATE | X534400 |
| 23 | DISK FRICTION | X534401 |
| 24 | RACE, THRUST | X157709 |
| 25 | BEARING, NEEDLE | X157708 |
| 26 | RING, SNAP | XN425008000 |
| 27 | SPRING | X157700 |
| 28 | PISTON, CLUTCH | X334852 |
| 29 | BALL | XN131005556 |
| 30 | PLUG, SCREW | X15075AE |
| 31 | RING | X18735O |
| 32 | RING | X18735D |
| 33 | BOLT, EMERGENCY | X112380F |
| 34 | INPUT SHAFT ASSY | X334885B |
| 35 | PIN | XN023709023 |
| 36 | BEARING | X110039A |
| 37 | SHIM (SET | X151436D |
| 38 | RING, OIL SEAL | XN412104030 |
| 39 | SLEEVE, PUMP DRIVE | X19113D |
