YANMAR X1341461820 Plunger Block

Write a Review
$629.15
SKU:
X1341461820
Schematic Object Key:
4A

YANMAR X1341461820 Plunger Block

$629.15

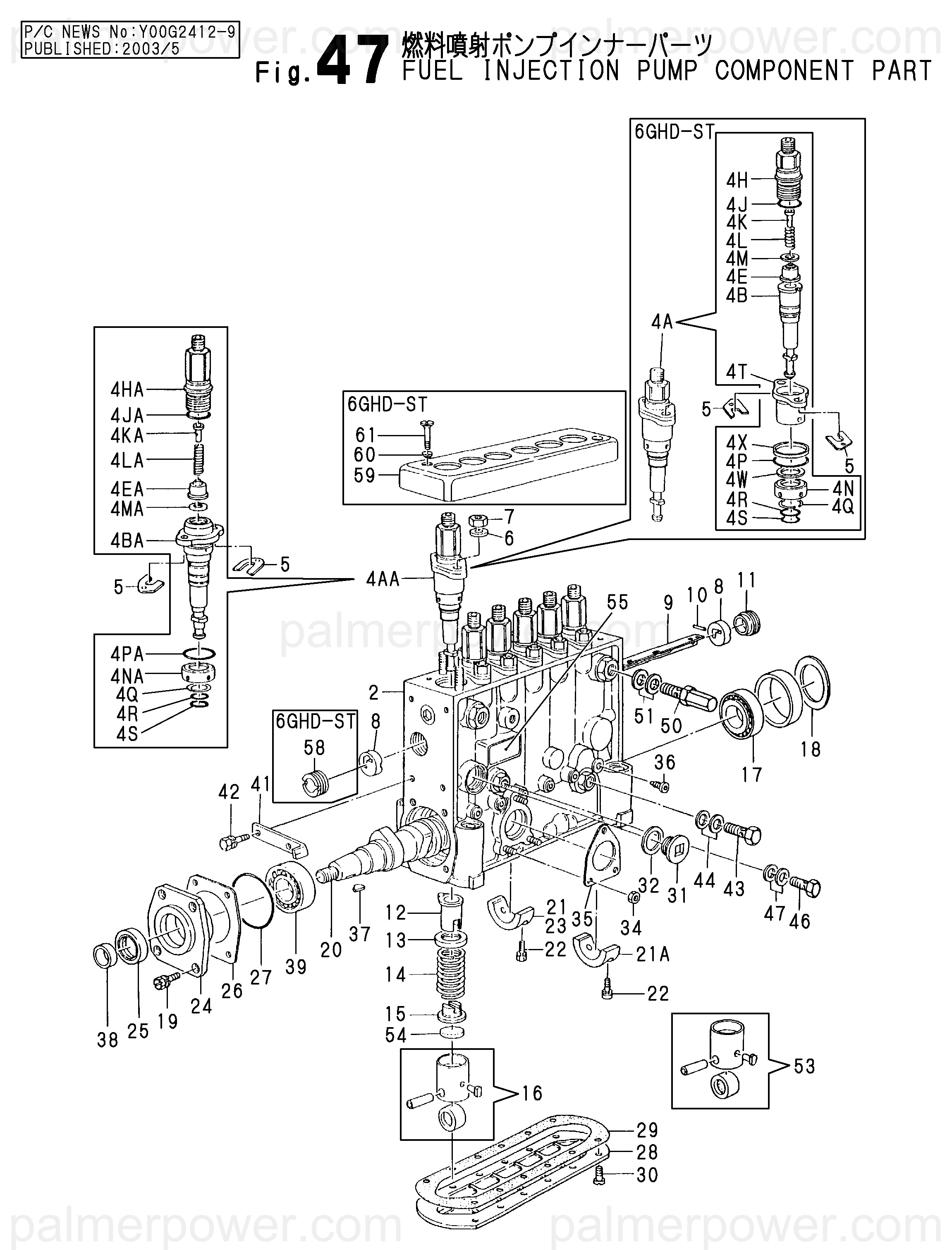

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X1341461820 Plunger Block

Schematic Object Key : 4A

Product Description : PLUNGER BLOCK

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 HOUSING X1340625620
3 NAIL X0294317010
4A PLUNGER BLOCK X1341461820
4B PLUNGER ASSY. X1341518320
4E DELIVERY VALVE X1341107620
4H HOLDER X1341165500
4J O-RING X0296322070
4K STOPPER X1341171400
4L SPRING, VALVE X1341120600
4M GASKET X1341150100
4N DEFLECTOR X1341350200
4P O-RING X0296329030
4Q SNAP RING X0296020010
4R O-RING X0296315020
4S O-RING X0296315020
4T FLANGE X1341311020
4W WASHER X0293020140
4X RING X1341370100
5 SHIM ASSY(60 SHEETS) X0299984170
6 WASHER X1341320300
7 NUT X0130210040
8 BUSH X1340010000
9 RACK, CONTROL X1342563000
10 PIN X0240302030
11 BUSH X1342220000
12 SLEEVE, CONTROL X1342410320
13 SPRING SEAT X1342160000
14 SPRING, PLUNGER X1342150700
15 SPRING SEAT X1342170500
16 TAPPET X1342000420
17 BEARING X0166502230
18 SHIM X0299983100
19 BOLT X0290106810
20 CAMSHAFT X1343716200
21 BEARING, CENTER X1343060300
22 BOLT X0201062040
24 COVER X1343161700
25 SEAL, OIL X1396250000
26 SHIM X0299984030
27 O-RING X0296355010
28 COVER X1340430800
29 GASKET X1340420100
30 SCREW X0122061640
31 PLUG X1340450100
32 GASKET X0265242940
34-1 NUT X1392060400
35 GASKET X1310410500
36 PLUG X1340470000
37 WOODRUFF KEY X0258051910
38 SLEEVE X1345630900
39 BEARING X0166502230
41 POINTER X1344960300
42 BOLT X0200061240
43 EYE BOLT X0297314680
44 GASKET X0265141840
45 COLLAR X0299114030
46 EYE BOLT X0297310120
47 GASKET X0265101340
48 COLLAR X0299110020
49 PLUG X0299010010
50 VALVE, OVERFLOW X1314241520
51 GASKET X0265141840
52 COLLAR X0299114030
57 GASKET X0265141840
58 SPACER X1340090000
59 COVER X1344160100
60 LOCK WASHER X0145306540
61 SCREW X0213063010
