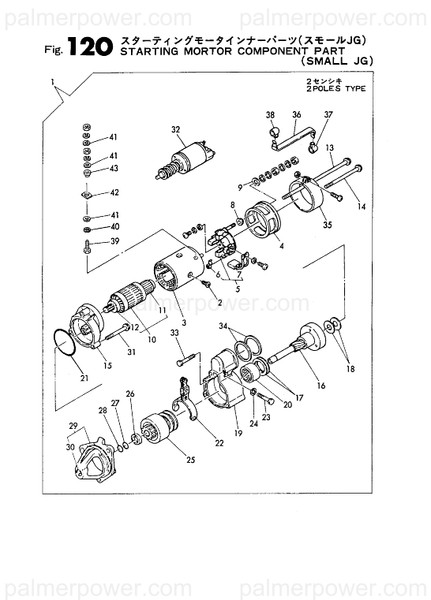

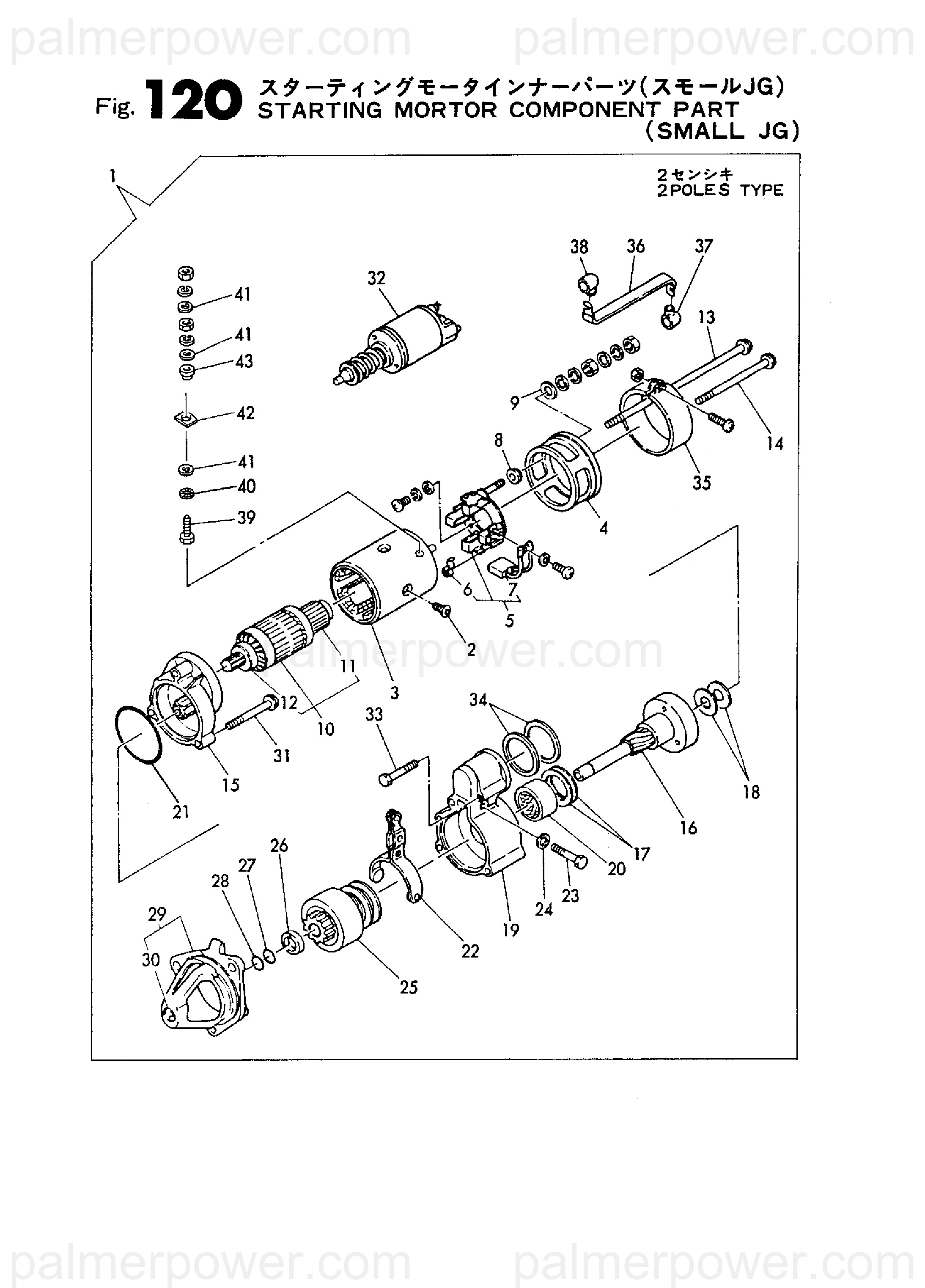

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 25
Product Description : CLUTCH ASSY, PINION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
| Ref | Description | Part No. |
|---|---|---|
| 1 | STARTER | 148606-77040 |
| 2 | SCREW | X500008300 |
| 3 | FILD COIL | X131607700 |
| 4 | BRACKET | X224013910 |
| 5 | HOLDER ASSY, BRUSH | X1331032000 |
| 6 | SPRING, BRUSH | X525002200 |
| 7 | BRUSH | X266005700 |
| 8 | IF BUSING | X404106000 |
| 9 | WASHER | X403005700 |
| 10 | ARMATURE ASSY | X132006101 |
| 11 | BALL BEARING | X620600500 |
| 12 | BALL BEARING | X620600540 |
| 13 | BOLT | X501021380 |
| 14 | BOLT | X501021370 |
| 15 | HOUSING, GEARS | X224500201 |
| 16 | SHAFT | X244100000 |
| 17 | SHIM | X503105200 |
| 18 | SHIM | X503105100 |
| 19 | BRACKET | X224405000 |
| 20 | METAL | X2620093000 |
| 21 | O-RING | X641402800 |
| 22 | LEVER ASSY | X137203500 |
| 23 | BOLT | X501021400 |
| 24 | LOCK PLATE | X305102300 |
| 25 | CLUTCH ASSY, PINION | X136103600 |
| 26 | PINION, STOPPER | X366101800 |
| 27 | RITEANER | X522100900 |
| 28 | RING | X505803900 |
| 29 | HOUSING ASSY, PINION | X224601700 |
| 30 | METAL | X2620108000 |
| 31 | BOLT | X501021310 |
| 32 | ENGAGE SWITCH ASSY. | X135008910 |
| 33 | BOLT | X501019020 |
| 34 | D-PLATE | X300111600 |
| 35 | BAND ASSY | X133801600 |
| 36 | BAR ASSY | X242514200 |
| 37 | CAP | X410103000 |
| 38 | CAP | X410105900 |
| 39 | BOLT | X501018700 |
| 40 | NUT | X502200600 |
| 41 | WASHER | X503002110 |
| 42 | IF BUSING | X404104600 |
| 43 | IF BUSING | X404104700 |
