YANMAR X1393080900 Washer

Write a Review
$4.48
SKU:
X1393080900
Schematic Object Key:
14

YANMAR X1393080900 Washer

$4.48

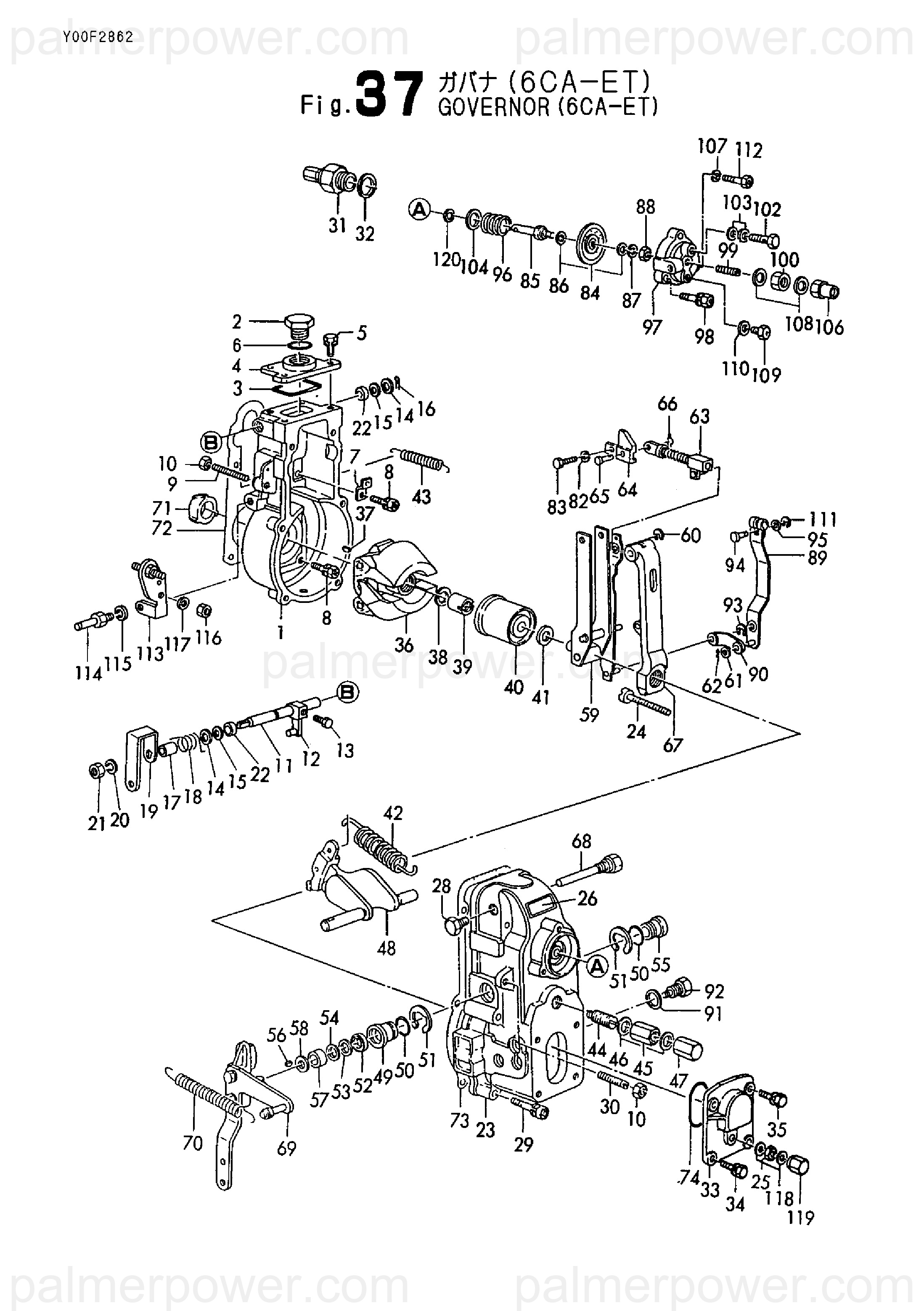

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X1393080900 Washer

Schematic Object Key : 14

Product Description : WASHER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING X1540045321
2 PLUG X1540072900
3 RING, SEAL X1543582500
4 COVER X1540637900
5 BOLT X0200061640
6 O-RING X0296325070
7 PLATE X1543506000
8 BOLT X0201062040
9 SCREW X1540100100
10 NUT X1540110100
11 SHAFT X1550043600
12 LEVER X1550032101
13 BOLT X1550060100
14 WASHER X1393080900
15 WASHER X1393081000
16 SPLIT PIN X0255201210
17 COLLAR X1542062000
18 SPRING X1543273600
19 LEVER X1543673600
20 WASHER, SPRING X0141108440
21 NUT X0130208040
22 OIL SEAL X0296208050
23 COVER X1540226020
24 SCREW X1540314800
25 NUT X1392080400
26 PLATE, NAME X1540409600
27 NAIL X0294317010
28 PLUG X1540360300
29 BOLT X0201065040
30 SCREW X1540100100
31 LIMITER X1530212220
32 GASKET X0265243040
33 COVER X1540637300
34 BOLT X0290206210
35 BOLT X0200061640
36 FLYWAIGHT ASSY. X1541010020
37 WOODRUFF KEY X0258031610
38 SPRING WASHER X0293212020
39 NUT X0292312030
40 SLEEVE X1541232320
41 SHIM X0299981000
42 SPRING X1541502700
43 SPRING X1541540701
44 SPRING CAPSULE X1541581720
45 NUT X0292012290
46 GASKET X0265121540
47 NUT, CAP X1541591200
48 LEVER, SWIVEL X1542007120
49 BUSH X1542043000
50 O-RING X0296318020
51 RING, SNAP X0160101640
52 SEAL, OIL X1396110000
53 SHIM X1394110000
54 SHIM X0293111090
55 BUSH X1542043100
56 WOODRUFF KEY X0258031310
57 COLLAR X1542062800
58 WASHER X1542060200
59 LEVER ASSY, GUIDE X1542172920
60 RING, SNAP X0160100540
61 SHIM X0293105170
62 SPLIT PIN X0255201210
63 LINK X1542346920
64 CONNECTOR X1542322420
65 PIN X1592314900
66 PIN X1554023800
67 LEVER TENSION X1542361500
68 PIN X1542371100
69 LEVER X1543455320
70 SPRING X1543142600
71 IMPELLER X1554125200
72 GASKET X1543508700
73 GASKET X1543507800
74 O-RING X0296352020
75 SEAL, READ X0291580010
76 WIRE X0291610050
77 WIRE X0291610050
78 WIRE X0291610050
79 WIRE X0291610050
80 WIRE X0291610050
81 WIRE X0291610050
82 WASHER, SPRING X0293205020
83 SCREW X0105351040
84 DIAPHRAGM X1544007420
85 ROD, PUSH X1544004800
86 GASKET X0293308050
87 SPRING WASHER X1393080700
88 NUT X0130306040
89 LEVER X1544013620
90 LINK X1544011320
91 GASKET X0265101440
92 BOLT X1544012100
93 RING, SNAP X0160100540
94 PIN X1542226200
95 WASHER X0293004010
96 SPRING X1544025700
97 COVER X1544043900
98 BOLT X0201062540
99 SCREW X1540341900
100 NUT X0230406040
101 COLLAR X0299110020
102 EYE BOLT X0297310180
103 GASKET X0265101340
104 SHIM T0.5 D25.5/20.0 X0293120180
105 SHIM T0.2 D25.5/20.0 X0293120210
106 CAP NUT X1540350320
107 WASHER, SPRING X0141106440
108 GASKET X1543520700
109 PLUG X0290106010
110 GASKET X0265061040
111 SNAP RING X0160100440
112 BOLT X0290106310
113 BRACKET X1543591320
114 BOLT X1543710420
115 WASHER, SPRING X0141108440
116 NUT X1540111100
117 SHIM X0293008320
118 GASKET X0265081140
119 NUT, CAP X1540352000
120 SHIM X0293109080
