YANMAR X1540072900 Plug

Write a Review
$15.66
SKU:
X1540072900
Schematic Object Key:
2

YANMAR X1540072900 Plug

$15.66

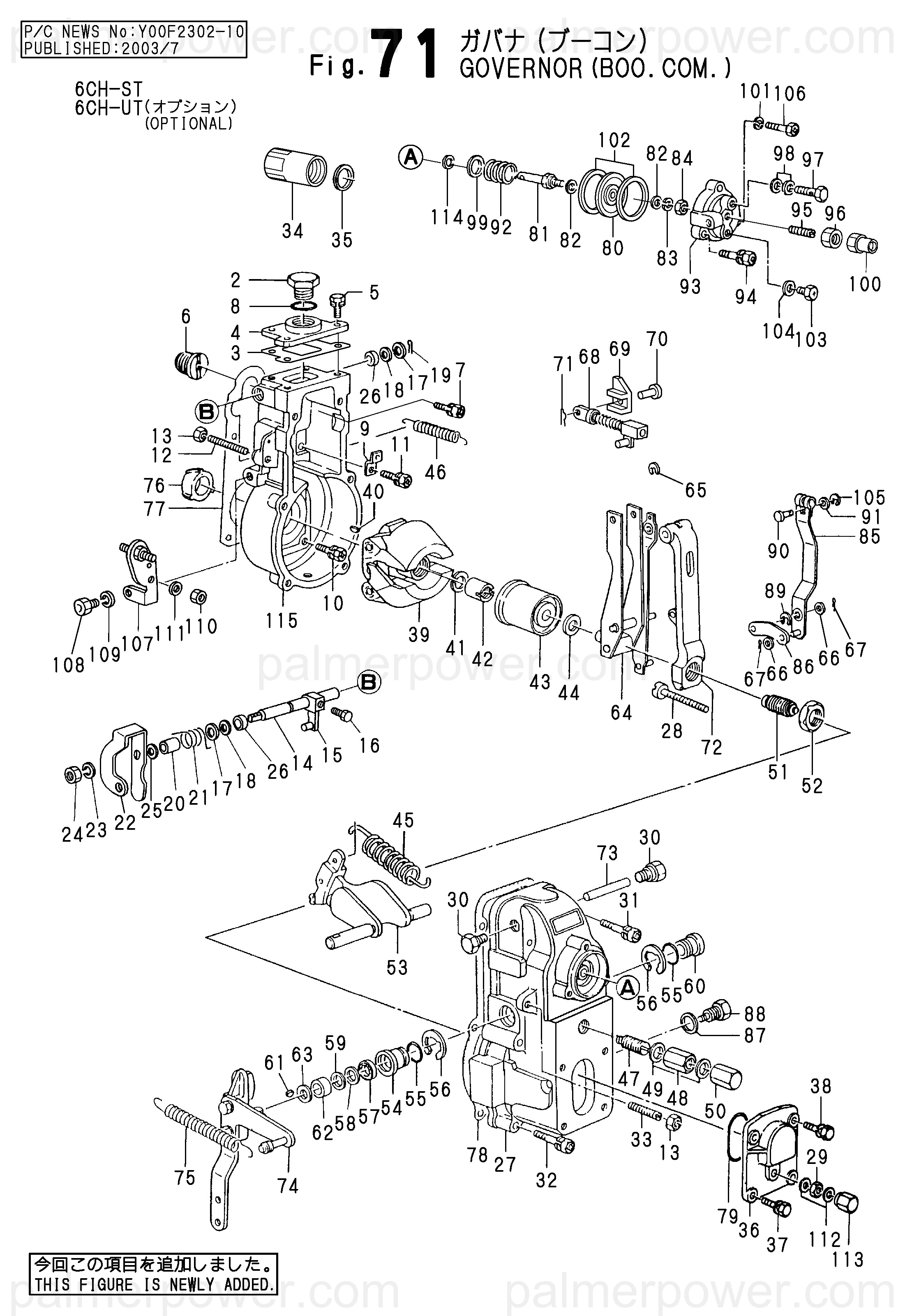

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X1540072900 Plug

Schematic Object Key : 2

Product Description : PLUG

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 PLUG X1540072900
3 GASKET X1543902000
4 COVER X1540637900
5 BOLT X0200061640
6 ADAPTOR X1540070200
7 BOLT X0200181840
8 O-RING X0296325070
9 PLATE X1543501800
10 BOLT X0290106810
11 BOLT X0201061640
12 SCREW X1540100100
13 NUT X1540110100
14 SHAFT X1550043200
15 LEVER X1550032620
16 BOLT X1550060700
17 WASHER X1393080900
18 WASHER X1393081000
19 SPLIT PIN X0255201210
20 COLLAR X1542062000
21 SPRING X1543273600
22 LEVER X1543674400
23 WASHER, SPRING X0141108440
24 NUT X0130208040
25 SHIM T0.5 D16/ 8 X1394081500
25A SHIM T0.2 D16/ 8 X1394081400
26 OIL SEAL X0296208050
27 COVER X1540227920
28 SCREW X1540311300
29 NUT X1392060600
30 PLUG X1540360300
31 BOLT X1390067100
32 BOLT X0201065040
33 SCREW X1540100100
34 LIMIT X1540506120
35 GASKET X0265182240
36 COVER X1540631400
37 BOLT X0290206210
38 BOLT X0200061640
39 FLYWAIGHT ASSY. X1541010020
40 WOODRUFF KEY X0258031610
41 SPRING WASHER X0293212020
42 NUT X0292312030
43 SLEEVE X1541230120
44 SHIM T0.2 D14/10.1 X0293110010
44A SHIM T0.3 D14/10.1 X0293110180
44B SHIM T0.4 D14/10.1 X0293110190
44C SHIM T1.0 D14/10.1 X0293110210
44D SHIM T0.5 D14/10.1 X1394100000
44E SHIM T1.5 D14/10.1 X1394100100
44F SHIM T2.0 D14/10.1 X1394103000
44G SHIM T3.0 D14/10.1 X1394103100
44H SHIM T4.0 D14/10.1 X1394103200
45 SPRING X1541502700
46 SPRING X1541540701
47 CAPSULE, SPRING X1541580820
48 NUT X0292012290
49 GASKET X0265121540
50 NUT, CAP X1541591200
51 CAPSULE, SPRING X1541851320
52 NUT X0292016010
53 LEVER, SWIVEL X1542007120
54 BUSH X1542043000
55 O-RING X0296318020
56 RING, SNAP X0160101640
57 SEAL, OIL X1396110000
58 SHIM X1394110000
59 SHIM X0293111070
60 BUSH X1542043100
61 WOODRUFF KEY X0258031310
62 COLLAR X1542062800
63 WASHER X1542060200
64 LEVER ASSY, GUIDE X1542172920
65 RING, SNAP X0160100540
66 SHIM X0293105170
67 SPLIT PIN X0255201210
68 LINK X1542354720
69 CONNECTOR X1542323100
70 PIN X1542225800
71 PIN X1554023800
72 LEVER TENSION X1542361500
73 PIN X1542370100
74 LEVER X1543455320
75 SPRING X1543142600
76 IMPELLER X1554125200
77 GASKET X1543900000
78 GASKET X1543900300
79 O-RING X0296352020
80 DIAPHRAGM X1544007420
81 ROD, PUSH X1544004800
82 GASKET X0293308050
83 SPRING WASHER X1393080700
84 NUT X0130306040
85 LEVER X1544013620
86 LINK X1544011320
87 GASKET X0265101440
88 BOLT X1544012100
89 RING, SNAP X0160100540
90 PIN X1542226200
91 WASHER X0293004010
92 SPRING X1544025700
93 COVER X1544043900
94 BOLT X0201062540
95 SCREW X1540341900
96 NUT X0230406040
97 EYE BOLT X0297310180
98 GASKET X0265101340
99 SHIM T0.5 D25.5/20.0 X0293120180
99A SHIM T0.2 D25.5/20.0 X0293120210
100 CAP NUT X1540350320
101 WASHER, SPRING X0141106440
102 GASKET X1544132600
103 PLUG X0290106010
104 GASKET X0265061040
105 SNAP RING X0160100440
106 BOLT X0290106310
107 BRACKET X1543591320
108 BOLT X1543710420
109 WASHER, SPRING X0141108440
110 NUT X1540111100
111 SHIM X0293008320
112 GASKET X0265061040
113 CAP NUT X1540351600
114 SHIM X0293109080
115 HOUSING, GOVERNOR X1540045120
