YANMAR X1543508400 Gasket

Write a Review
$10.94
SKU:
X1543508400
Schematic Object Key:
70

YANMAR X1543508400 Gasket

$10.94

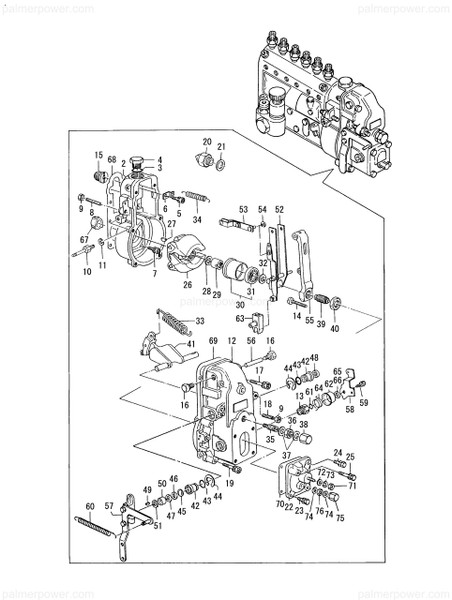

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X1543508400 Gasket

Schematic Object Key : 70

Product Description : GASKET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 HOUSING, GOVERNOR X54000630
3 O-RING X29632507
4 RLUG X54007290
5 BOLT X20018184
6 PLAET X54350180
7 BOLT X29010680
8 SCREW X54010010
9 LOCK NUT X54011010
10 BOLT X54012172
11 SRRING WASHER X14110844
12 COVER, GOVERNOR X54500352
13 BUSH X54321040
14 SCREW X54031240
15 ADAPTER X54007020
16 PLUG X54036030
17 BOLT X20106504
18 SCREW X54010030
19 BOLT X20106384
20 CAP X55404350
21 GASKET X26518224
22 COVER X54063072
23 BOLT X29020627
24 BOLT X20006144
25 BOLT X20006284
26 FLYWEIGHT ASSY X54100802
27 WOODRUFF KEY X25803161
28 SPRING WASHER X29321202
29 NUT X29231203
30 SLEEVE X54123012
31 BEARING X29801003
32 SHIM X29311001
33 SPRING X54150270
34 SPRING X54154050
35 SPRING CAPSULE X54157042
36 NUT X29201203
37 GASKET X26512154
38 CAP NUT X54159010
39 SPRING CAPSULE X54170012
40 NUT X29201601
41 LEVER, SWIVEL X54200262
42 BUSH X54204010
43 O-RING X29631802
44 SNAP RING X16010164
45 SEAL, OIL X29621101
46 SHIM X29311107
47 SHIM X29311109
48 PLUG X29141701
49 WOODRUFF KEY X25803131
50 COLLAR X54206010
51 WASHER X54206020
52 GUIDE LEVER ASSY X54211432
53 LINK X54230392
54 SNAP RING X16010054
55 LEVER, TENSION X54236150
56 PIN X54237010
57 LEVER X54345532
58 LEVER X54304280
59 BOLT X20006165
60 SPRING X54314260
61 O-RING X29631003
62 CAP X54322010
63 LEVER ASSY X1543265120
64 SPRING X1543270200
65 SHIM X0293110220
66 SHIM X0293110230
67 IMPELLER X1554125200
68 GASKET X1543507700
69 GASKET X1543507800
70 GASKET X1543508400
71 NUT X0130208040
72 WASHER X0140108140
73 WASHER, SPRING X0141108440
74 GASKET X0293311010
75 NUT, CAP X1540350500
76 NUT X54011070
