YANMAR X1544045000 Cover

Write a Review
$13.78
SKU:
X1544045000
Schematic Object Key:
79

YANMAR X1544045000 Cover

$13.78

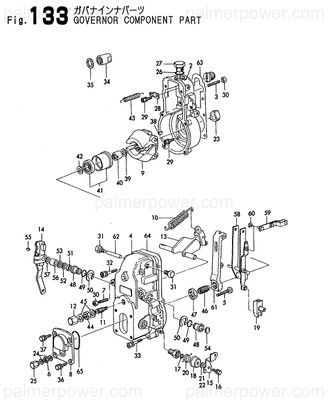

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X1544045000 Cover

Schematic Object Key : 79

Product Description : COVER X1544045000

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 HOUSING X1540005720
3 O-RING X0296325070
4 PLUG X1540072900
5 PLATE X1543506000
6 BOLT X0201062040
7 SCREW X1540100100
8 NUT X1540110100
9 BOLT X1540121720
10 WASHER, SPRING X0141108440
11 NUT X1392080400
12 SCREW X1540314300
13 COVER X1545008120
14 BUSH X1543210400
15 PLUG X1540360300
16 BOLT X0201065040
17 SCREW X1540100100
18 BOLT X0201063840
19 SHIM X0293105170
20 PIN X1554023800
21 COVER X1540637300
22 BOLT X0290206210
23 BOLT X0200061640
24 FLYWAIGHT ASSY. X1541010020
25 WOODRUFF KEY X0258031610
26 SPRING WASHER X0293212020
27 NUT X0292312030
28 SLEEVE X1541232320
29 SHIM T0.2 D14/10.1 X0293110010
30 SPRING X1541502700
31 SPRING X1541540701
32 SPRING CAPSULE X1541581720
33 NUT X1540112700
34 GASKET X0265121540
35 NUT, CAP X1541591200
36 LEVER, SWIVEL X1542007120
37 BUSH X1542041900
38 O-RING X0296318020
39 RING, SNAP X0160101640
40 SEAL, OIL X1396110000
41 SHIM X1394110000
42 SHIM X0293111090
43 PLUG X0291417010
44 WOODRUFF KEY X0258031310
45 COLLAR X1542062800
46 WASHER X1542060200
47 LEVER ASSY, GUIDE X1542102720
48 LINK X1542349620
49 RING, SNAP X0160100540
50 LEVER TENSION X1542361500
51 PIN X1542371100
52 LEVER X1543455320
53 LEVER X1543676700
54 BOLT X0200061640
55 SPRING X1543142600
56 O-RING X0296310030
57 CAP X1543220100
58 LEVER ASSY X1543265020
59 SPRING X1543277600
60 SHIM X0293110520
61 IMPELLER X1554125200
62 GASKET X1543508700
63 GASKET X1543507800
64 O-RING X0296352020
65 GASKET X0265081140
66 NUT, CAP X1540352000
67 PIN X1542224900
69 HOUSING X1544127820
70 SPACER X1544082901
71 COLLAR X1544130500
72 SPRING X1544124300
73 DIAPHRAGM X1544008220
74 ROD, PUSH X1544006100
75 DISK X1544065500
76 NUT X0130206040
77 SPRING X1544115400
78 GASKET X1543520700
79 COVER X1544045000
80 BOLT X0201062040
81 BOLT X0290106310
82 WASHER, SPRING X0141106440
83 BOLT X0201062040
84 EYE BOLT X0297310180
85 GASKET X0265101340
86 GASKET X1544067000
87 GASKET X1544066700
88 GASKET X0293318040
89 SCREW X1544065800
90 WASHER, SPRING X0141106440
91 WASHER X1544066800
92 LEVER X1544066901
93 WASHER, SPRING X0141104440
94 BOLT X0102340820
95 NUT X0130306040
96 SCREW X1544041600
97 GASKET X0293312130
98 SCREW X1544066500
99 BOLT X0201062540
100 BOLT X0100067040
101 WASHER, SPRING X0141106440
102 CAP NUT X1540351600
103 SCREW X1544044400
104 NUT X0130306040
105 GASKET X0265061040
106 BOLT X1390060900
107 WASHER, SPRING X0141106440
108 NUT X0292406010
109 BOLT X1531411600
110 OIL SEAL X1396080000
111 OIL SEAL X1396050100
112 LEVER X1544089000
113 LEVER X1544067500
114 SHAFT X1544068000
115 SHIM X0293105200
116 WASHER X0140208120
117 PIN X1554023800
118 SHIM X0293108040
120 SPLIT PIN X0255201210
121 SHIM X0293008320
122 SPRING X1544039900
123 LEVER X1544067700
124 WASHER, SPRING X0141108440
125 NUT X0130208140
