YANMAR X211455510 Shaft, Pinion

Write a Review
$52.07
SKU:
X211455510
Schematic Object Key:
50

YANMAR X211455510 Shaft, Pinion

$52.07

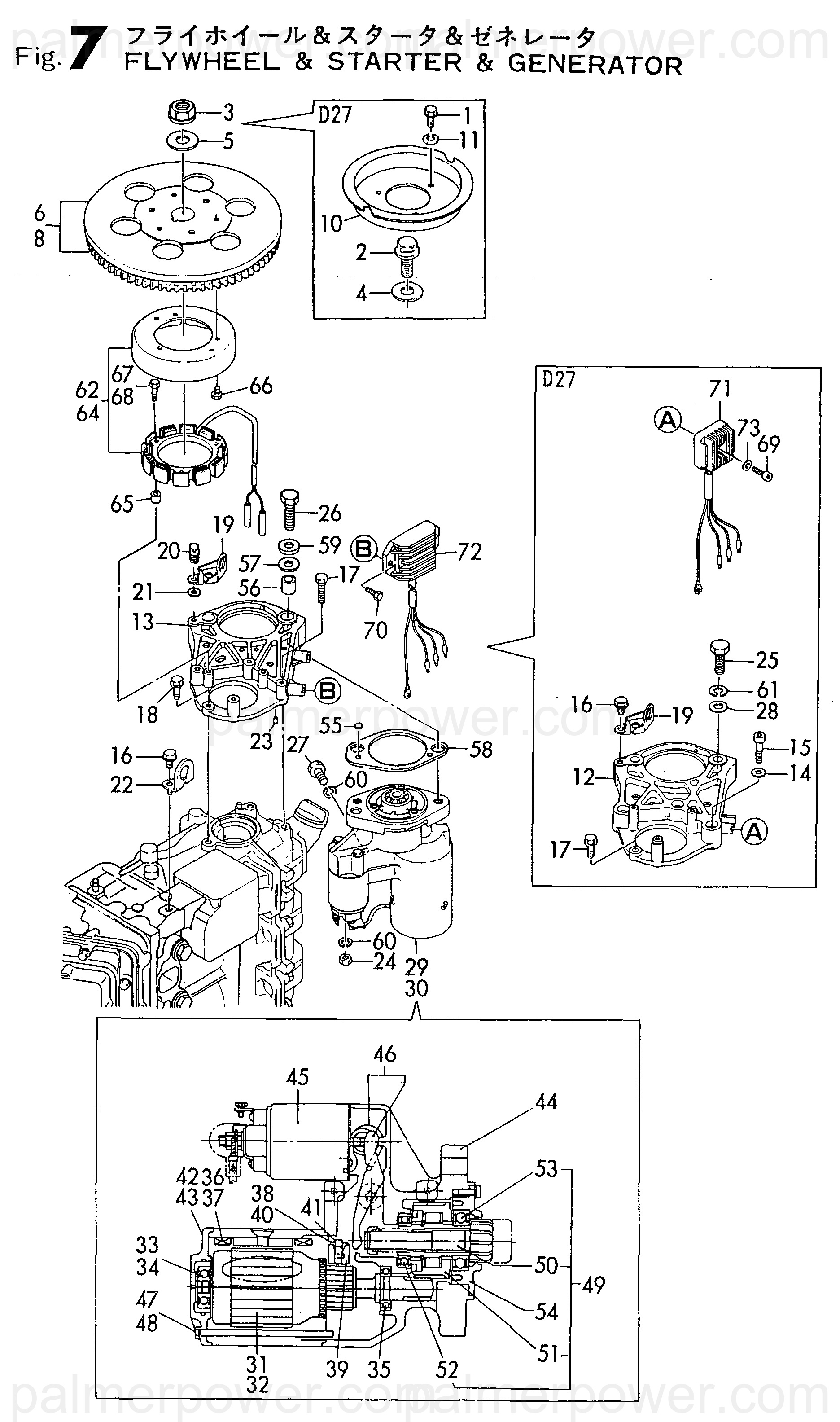

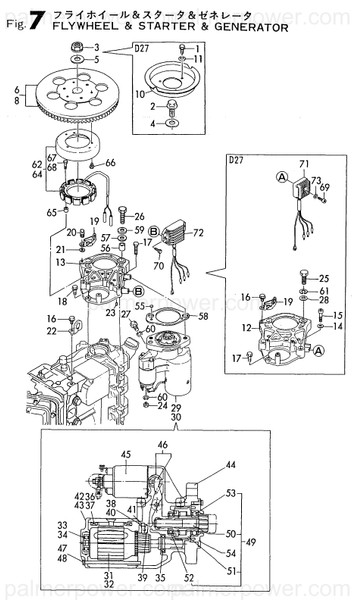

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X211455510 Shaft, Pinion

Schematic Object Key : 50

Product Description : PINIONSHAFT X211455510

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
3 NUT, END 120380-21530
5 WASHER 120380-21550
8 FLYWHEEL ASSY 120380-21591
13 BRACKET, STARTER 120380-01601
16 BOLT, M8X16 120270-02800
17 BOLT, M8X25 120270-02820
18 BOLT, M8X45 120270-02870
19 POINTER 120270-07302
20 PIN 120380-07310
21 DAMPER 120380-07320
22 LIFTER 120270-07900
23 PIN, PARALLEL M6X10 22312-060100
24 NUT, M8 120270-01910
26 BOLT, M12X45 120270-02520
27 BOLT, M8X16 120270-02800
30 STARTER, 1.4KW 120380-77010
32 ARMATURE ASSY X211481106
33 BALL BEARING X211415511
35 BALL BEARING X211445511
37 COIL ASSY,FIELD X211452109
38 BRUSH(+) X21146315
39 HOLDER ASSY,BRUSH X211449008
40 BRUSH (-) X211459002
41 SPRING, BRUSH X21148315
43 COVER, REAR X211423013
44 HOUSING GEAR X211496610
45 SWITCH ASSY,MAGNET. X211467602
46 LEVER, SHIFT X211446012
48 BOLT, THROUGH X211458005
49 PINION ASSY X213065006
50 PINIONSHAFT X211455510
51 SHAFT, PINION X213075006
52 BALL BEARING X21305509
53 BALL BEARING X211455502
54 BEARING RETAINER X211468008
55 SPACER, A 120380-77100
56 SPACER, B 120380-77111
57 DAMPER 120380-77120
58 DAMPER 120380-77130
59 WASHER 120380-77170
60 WASHER, SPRING 8 22213-080000
64 GENERATOR 120380-77220
65 PIECE, DISTANCE 120380-77250
66 BOLT, M6X10 120270-77850
68 BOLT, M6X40 120270-77870
70 BOLT, M6X20 120270-02660
72 REGULATOR 120380-77710
74 STARTER, 1.8KW 120380-77020
75 BOLT, M6X25 120270-02620
76 BOLT, M6X20 120270-02660
77 GENERATOR, 20A 120270-77660
79 REGULATOR, 20A 120270-77720
80 BRACKET, REGULATOR 120270-77810
81 BOLT, M6X10 120270-77850
82 WASHER, SPRING 6 22213-060000
83 FUSE 30A 46150-003680
