YANMAR X366101800X Stopper, Pinion

Write a Review
$17.34
SKU:
X366101800X
Schematic Object Key:
20

YANMAR X366101800X Stopper, Pinion

$17.34

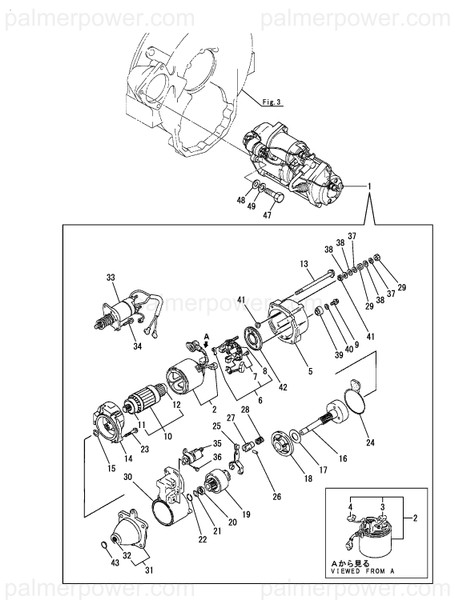

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X366101800X Stopper, Pinion

Schematic Object Key : 20

Product Description : STOPPER, PINION X366101800X

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 STARTER 127495-77020
2 YOKE ASSY 127495-77050
3 BRUSH 127695-79030
4 BRUSH 127695-79040
5 BRACKET,REAR X224026020X
6 HOLDER ASSY, BRUSH 127495-77180
7 BRUSH 127695-79180
8 SPRING, BRUSH 127695-79190
9 SCREW 127695-79170
10 ARMATURE ASSY 127495-77111
11 BEARING, BALL X620601150X
12 BEARING, BALL X620601100X
13 BOLT 127695-79140
14 CASE, GEAR 127695-77150
15 WASHER, SHIM X503105700X
16 SHAFT, L=188.5 127695-79100
17 WASHER, SHIM X503105200X
18 HOLDER 127695-79110
19 CLUTCH ASSY, PINION 127695-77090
20 STOPPER, PINION X366101800X
21 HOOK X522100900X
22 RING, RETAINING X505803900X
23 BOLT 127695-79150
24 GASKET 127695-79130
25 LEVER ASSY 127695-77020
26 ROD 127695-79060
27 HOLDER 127695-79071
28 SPRING, COIL 127695-79080
29 NUT X8260083001
30 BRACKET, CENTER 127695-77160
31 CASE ASSY, CLUTCH 127695-77170
32 METAL X262009400X
33 SWITCH ASSY, ENGAGE 127495-77100
34 BOLT 127695-79160
35 RELAY, STARTER 127495-77130
36 SCREW X8170060101
37 WASHER, SPRING X8320082001
38 WASHER X8300087001
39 BUSH, IF 127495-77140
40 WASHER X8300060001
41 BUSH, IF 127495-77150
42 PLATE 127495-77160
43 COVER X340905600X
44 HARNESS, WIRE 127495-79120
45 CAP X410100600X
46 CAP X410100700X
47 BOLT, M12X 35 PLATED 26116-120352
48 WASHER, 12 22137-120000
49 SPRING WASHER 12 22212-120000

YANMAR X366101800X Stopper, Pinion
